M30 ignition upgrades available?

[Gadea]

has anyone here modified the ignition components on their M30's?
Not that there´s anything wrong with stock, but the distributor/rotor setup even though widely used seems so archaic and prone to failure. Hope I´m wrong about that last part. I´ll be swapping the M30 in next week.

[LowR3V'in]

archaic? The whole engine is archaic. wtf you talking about. :P

I have a cdi w/ high output coil.
Allot of people use wasted spark too.
Coil packs, and individual coils.

[Jonsku]

has anyone here modified the ignition components on their M30's?
Not that there´s anything wrong with stock, but the distributor/rotor setup even though widely used seems so archaic and prone to failure. Hope I´m wrong about that last part. I´ll be swapping the M30 in next week.

They don't break by themselves, proven working technology.

Of course you could upgrade ignition like he did but no point in stock engine..

[Jean]

More info on the car please :)

[chadthestampede]

More info on the car please :)

+1 :shock:

[Gadea]

+1 :shock:

I´m pretty sure you were talking about the purple beauty above....
if not, however, there isn´t much to my car, it´s an M30B35 from an auto 1991 535i going into my 1991 318i 5spd. I hope the M30 won´t stay stock for long. So yeah, I´m considering options.

[Gadea]

archaic? The whole engine is archaic. wtf you talking about. :P

I have a cdi w/ high output coil.
Allot of people use wasted spark too.
Coil packs, and individual coils.

Yeah, I know, right? It´s kinda old.
So your setup uses one large coil replacing the distributor, and then coils on each plug? All controlled by a MSD unit or something similar? how about the wiring? is it crazy-complicated?

[LowR3V'in]

No. It's a msd 6al-2 and ss coil.
Wiring is just + and - for stuff like that.

If you want wasted spark the best thing to do is run megasquirt.
It's a aftermarket ecu.

http://www.diyautotune.com/

a write up using the easy to get GM packs.

http://www.e30tech.com/forum/showthread.php?t=82341

[chadthestampede]

Megasquirt scares me

[Jonsku]

More info on the car please :)

Well, it all can be found on PPF (pure performance factory, swedish site with lots of +1000hp BMW turbos) :)

Anyways, the guy went to dyno and pulled 666hp on the wheels with 1,5bar boost with normal V-power fuel.
Target is 3bar boost with E85 fuel, so it'll go far beyond 1000hp. And that's cool! :)

[Gadea]

No. It's a msd 6al-2 and ss coil.
Wiring is just + and - for stuff like that.

If you want wasted spark the best thing to do is run megasquirt.
It's a aftermarket ecu.

http://www.diyautotune.com/

a write up using the easy to get GM packs.
http://www.e30tech.com/forum/showthread.php?t=82341

Very interesting sites. Thanks for the link. I stop by e30tech every once in a blue moon but never stumbled upon that particular thread.
What kind of improvement did you get when switched to MSD? better idle and responsiveness? a couple more horses?
That PPF site is cool also. I was going to chime in the forums, help the guys a little, but then I remembered my swedish is a little rusty....and I had some stuff on the stove...

[Gadea]

Well, it all can be found on PPF (pure performance factory, swedish site with lots of +1000hp BMW turbos) :)

Anyways, the guy went to dyno and pulled 666hp on the wheels with 1,5bar boost with normal V-power fuel.
Target is 3bar boost with E85 fuel, so it'll go far beyond 1000hp. And that's cool! :)

Yeah, that´s the way to go. I don´t know how some people can sleep at night having only 600+ hp on the wheels....tsk!!!

[LowR3V'in]

Have you thought about using the stock cap cover if you
don't already have it?
Might help clean up the looks, or not.



Don't get a cdi. You're thinking too small.
0 power gain to $300 cost. Not a good ratio for you.

If you do keep stock just make sure coil and plug wires are within spec and the dizzy
is in good shape. Get a chip and headers.

[chadthestampede]

is in good shape. Get a chip and headers.

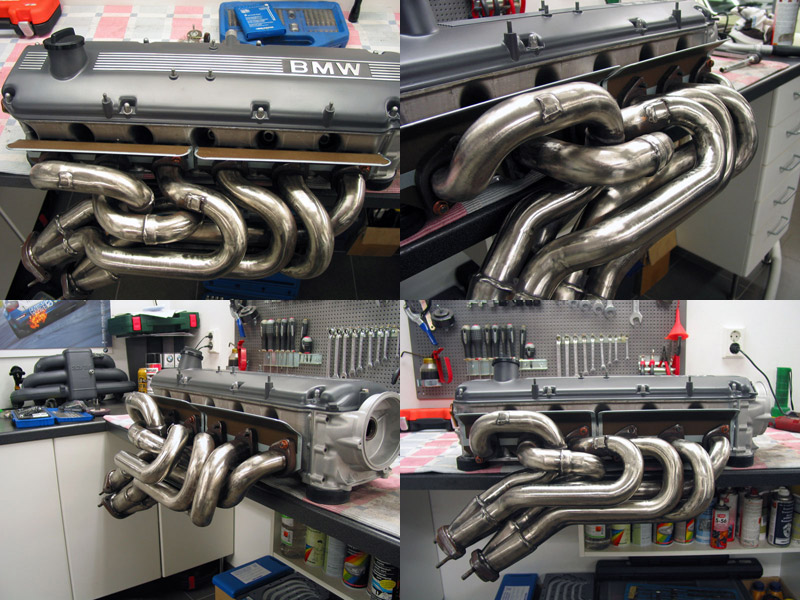

Not to threadjack, but has anyone tried headers in an m30 e30? I was always under the impression that nothing out there would fit.

[BDK]

^^^

Yep, =Dutch company makes them, Alpina copies I think....
about $1100 plus shipping and customs/duty



https://www.koed.dk/2.1.asp?kattype=...nkid=31&page=3

A guy from Finland has a set on his 335....



http://www.e30tech.com/forum/showthr...=42613&page=31
