M30b35 rebuilt and installed at last

[Jean]

Love it, you did a really good job, it looks really clean!

[talltorontoguy]

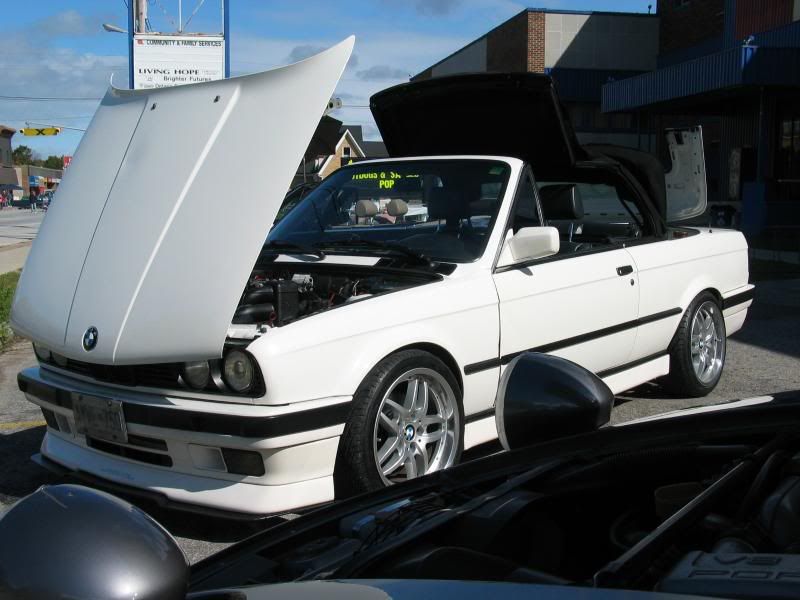

Couple more pictures...




E30 M30 vs 928s imported from Japan...



Finished for this year, needs a little more front end drop and a paint job



Transformers! More than meets the eye! (note M30 poking out)



Already got me in trouble... oh well...

[euroshark]

Oh lord, any shots of the 928S? I will own one...

Swap was well executed too, looks very clean!

[JoeMadoo]

very nice man, i want to redo my swap and make it as clean as yours! or try to atleast.

[CorvallisBMW]

Super clean swap! nice job

[Lurker27]

Nice!

[Naplm00]

wait, your saying that your car needs a paint job? looks super clean to me

[talltorontoguy]

Is it ever REALLY clean enough? lol

[pegase747]

Hi there,

Congratulations on the cleanest, best factory looking M30 swap I ever saw...

couple of questions here,

1- What driveshaft did you use ? did you have to shorten and balance one ??

2- About exhaust manifold and downpipe ? could you use the E34 one or did you have to use a custom one ??

3- Is your engine position 2 or 3 ??

4- About ECU, since the E34 use Motronic, did you use the ECU and full harness from the E34 ?

5- Your sig mentions an E.A.T chip, do you fell the difference ? what BHP you reckon you have ? Is that a great improvement ??


Very glad if you could help to answer those questiosn.

Regards from France / Pierre

[Spinning Tires]

What tranny mount did you use?

[talltorontoguy]

Thanks for comments... not sure I'm deserving of cleanest swap, but it's appreciated.

What tranny mount did you use?

E30 crossmember with ireland engineering urethane mounts

1- What driveshaft did you use ? did you have to shorten and balance one ??

325e front 1/2, 325i back 1/2. Had to play with length a little bit but nothing serious. Did not balance it. No vibrations up to 100mph.

2- About exhaust manifold and downpipe ? could you use the E34 one or did you have to use a custom one ??

I used an E34 manifold set and E34 downpipes but had to separate the pipes to get them to fit properly. Put O2 sensor bung into downpipe as well.

There was a problem getting the downpipes to fit around the E30.de style mount bracket. There are several E34 styles of exhaust downpipes, the one I had on hand was one of the only ones that doesn't work well. I think it was identified by having a sleeve over it IIRC (not sure).

3- Is your engine position 2 or 3 ??

Engine is in position III

4- About ECU, since the E34 use Motronic, did you use the ECU and full harness from the E34 ?

Yes, ECU from E34 and full harness. Minor mods required to get tachometer, fuel economy, and power windows to work correctly.

5- Your sig mentions an E.A.T chip, do you fell the difference ? what BHP you reckon you have ? Is that a great improvement ??

Yes you feel the difference. Can't comment on BHP as I haven't done a before and after comparison. However I've had an EAT chip in my E34 535 5 speed for years and swapped it into this setup. Highly recommended.

[pegase747]

Hey thanks for the answers, very much appreciated !

cheers / Pierre

[Doughnut]

Would you mind taking a picture of the o2 sensor wiring plug and let me know what wire colours are for what?

Earth?
heater element?
sensor?

Thanks for any help.

[itsbrokeagain]

great swap..Im in the process of getting mine..going to be a long build lol

[E30 Monster]

The motor looks SOOO far foward is it just the pictures fooling me?
