I seem to remember that there is very little space in order to get an E-torx socket down in there.
Announcement
Collapse
No announcement yet.
Do I need this special tool to remove head bolts?
Collapse
X
-
Originally posted by matt View PostYou need it unless you have an e-torx socket that fits down around the cams.
It helps to have that one.
Time to look for the best price...
Thanks!
Comment
-
Originally posted by amdspitfire View Postlet me know where you find it for a good price ;)
So I bought one!
Comment
-
Originally posted by amdspitfire View PostMentions
will it work with m20?
BTW, Pelican Parts is saying it works on:
M42, M43, M44, M50, M60, M62
No mention of M20, but they might be thinking of the original bolts that came on those engines.
Update: RealOEM says they're Torx bolts NOT E-Torx on the M20.
Comment
-
Update:

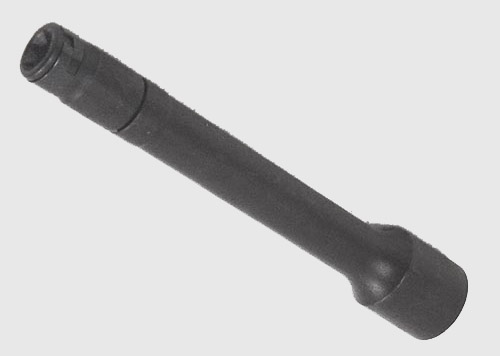

I received the ZDMAK version of the above tool. It worked well except for one issue...
There is a sleeve that wraps around the end that holds a ball bearing. This ball bearing is supposed to help grip the head of the bolt so it makes it easier to put the bolts in/out. Well, it didn't work at all. The bolts would fall out of the end when removing. Luckily I was able to use a magent to retrieve the bolts.
And the other thing that could be a big problem: BE CAREFUL upon insertion/removal of the tool from down within the head. It's a tight squeeze even with the tool. I caught the sleeve on the edge of the valve assembly and the damn sleeve popped off, almost dropping the ball bearing down into the oil galley. Luckily, it fell and got caught up in the residual oil next to the galley hole.
Word to the wise: Rip off the sleeve and remove the ball bearing before using this tool.
Comment
-
I had the Hazet tool, and it worked flawlessly. There was a guy on BF.c who rented the full package of tools to do a 24v headgasket job. Cam locker, pin for flywheel, t. chain tensioner, vanos disc tool/locker - it was like $30, and you had a month.
It's not how you handle the good times, but the faith you keep in the bad that defines you.
