    Clutch pedal retaining spring

    Anyone has a picture about the clutch pedal retaining spring location? The other end connects of course to the clutch pedal itself, but where the other end is connected? I think my car did not have it at all, but I might install it. Just got the clucth bleeded and the feel is pretty ok and the pedal returns well, but anyway the spring would be nice to have.
  • PEZ2
    Member
    • Feb 2008
    • 50

    #2

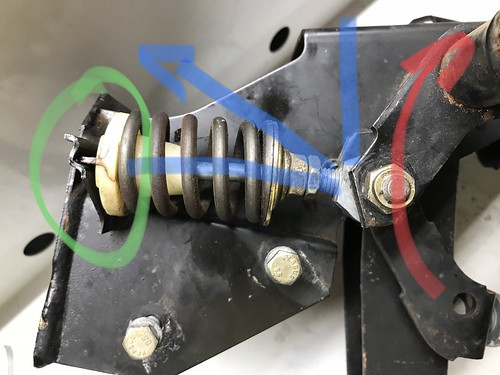

    Not sure if this is the one you are asking about, but the pic is the clutch “ helper” spring assembly.

    Click image for larger version

Name:	AC00D858-042A-4614-94A0-0A530B218A72.jpg
Views:	54
Size:	55.4 KB
ID:	10121534

    Comment

    • MikkoR
      Noobie
      • Feb 2024
      • 8

      #3

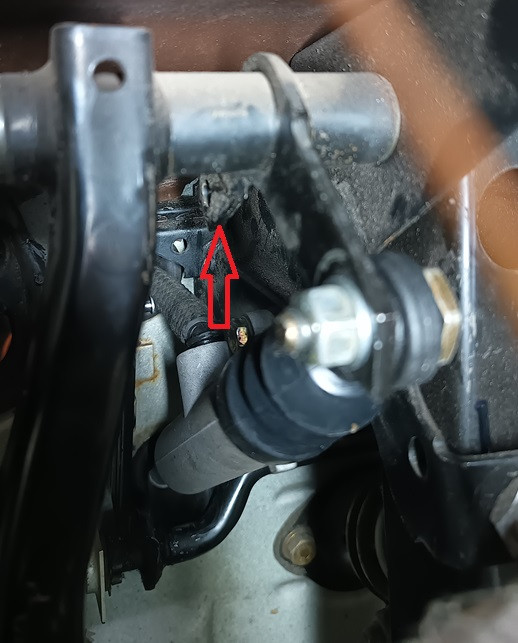

      A bit bad picture, but in my case the lever is pointing pretty much straight forward, so a spring like in the previous post won't work. Maybe I just leave it that way.


      Click image for larger version

Name:	pedal.jpg
Views:	93
Size:	79.6 KB
ID:	10121605
