    Transmission Fluid change

    Hey guys,

    I'm trying to change the tranny fluid, but I can't find an Allen key that is large enough to take out the two plugs.

    What are those, like 17mm!? I can't find a key that huge...
    REMEMBER: Be safe and have fun is Rule Number 1.

    The Epic Unbuild of Clint Eastwood
  • jlevie
    R3V OG
    • Nov 2006
    • 13530

    #2
    You might have toruble finding an allen wrench that large, but a good auto parts house will have or can get an allen driver for a socket wrench.
    The car makes it possible, but the driver makes it happen.
    Jim Levie, Huntsville, AL

    Comment

    • MaxBell
      E30 Fanatic
      • Oct 2010
      • 1390

      #3
      Kay, well. Canadian Tire, Parts Source, APC Parts and a couple jobbers did not have it.
      REMEMBER: Be safe and have fun is Rule Number 1.

      The Epic Unbuild of Clint Eastwood

      Comment

      • jw 325ic
        E30 Fanatic
        • Sep 2006
        • 1360

        #4
        usually you need the tool from pelican parts and a compressed (small) 1/2 socket to squeeze in there. the sockets from the auto parts stores are going to be way too long. you could shave it down if you wanted though and save some money i suppose. http://www.pelicanparts.com/cgi-bin/...ONLY%2C%20Each

        Comment

        • browntown
          No R3VLimiter
          • Jun 2004
          • 3524

          #5
          I use a hex socket in 17mm, but I've seen a big ass hex key used before. All have been done with the transmission off the car though. Guess I'm no help. Might be easiest just to order one online.

          Comment

          • MaxBell
            E30 Fanatic
            • Oct 2010
            • 1390

            #6

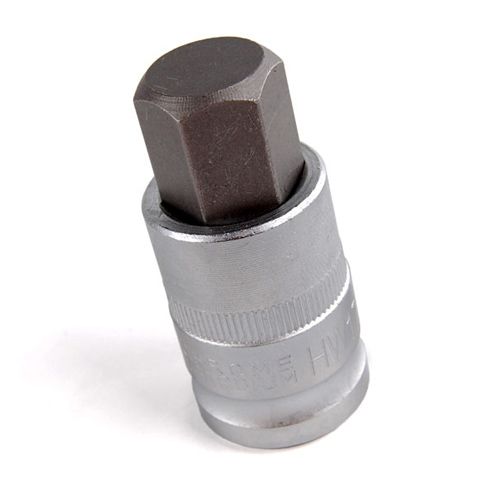

            Something like this would be too big?
            REMEMBER: Be safe and have fun is Rule Number 1.

            The Epic Unbuild of Clint Eastwood

            Comment

            • ekurty
              Noobie
              • Sep 2011
              • 37

              #7
              i found a 17mm allen at sears and had to cut about 2 inches off the short side to get it in there

              Comment

              • johnswimmer
                Noobie
                • Sep 2011
                • 3

                #8
                This should work: https://www.ultimategarage.com/shop/...roducts_id=891

                Comment

                • Click
                  Mod Crazy
                  • Feb 2010
                  • 637

                  #9
                  Originally posted by ekurty
                  i found a 17mm allen at sears and had to cut about 2 inches off the short side to get it in there
                  Exactly what I did
                  ส็็็็็็็็็็็็็็็็็็็็็็็็็
                  Originally posted by blunttech
                  I need you to exfoliate my ballsack
                  Build Thread?



                  Comment

                  • MaxBell
                    E30 Fanatic
                    • Oct 2010
                    • 1390

                    #10
                    Sears allen keys were perfect for removing the transmission drain plugs from my Getrag G260. Thanks!
                    REMEMBER: Be safe and have fun is Rule Number 1.

                    The Epic Unbuild of Clint Eastwood

                    Comment

                    • ahab
                      Noobie
                      • Jan 2012
                      • 10

                      #11
                      Since this is back up, I'll add that you can cut a 17mm bolt, leaving about an inch of shoulder, and clamp it in some big ass vice-grips too. Or, if you have a welder handy you can make something more permanent.
                      1988 325iX Lachssilber / Black
                      1987 535iS Diamantschwarz / Black
                      1988 M5 Black / Natur

                      Comment

                      • E30 331is
                        E30 Enthusiast
                        • Sep 2011
                        • 1166

                        #12
                        I used a 17mm allen socket and a 17mm open wrench. Put the allen key in and use the crescent part of the wrench to turn it, it has enough clearance from the transmission to the base of the allen socket for the wrench to slide in.

                        Comment

                        • yeaseth
                          Grease Monkey
                          • Jul 2011
                          • 302

                          #13

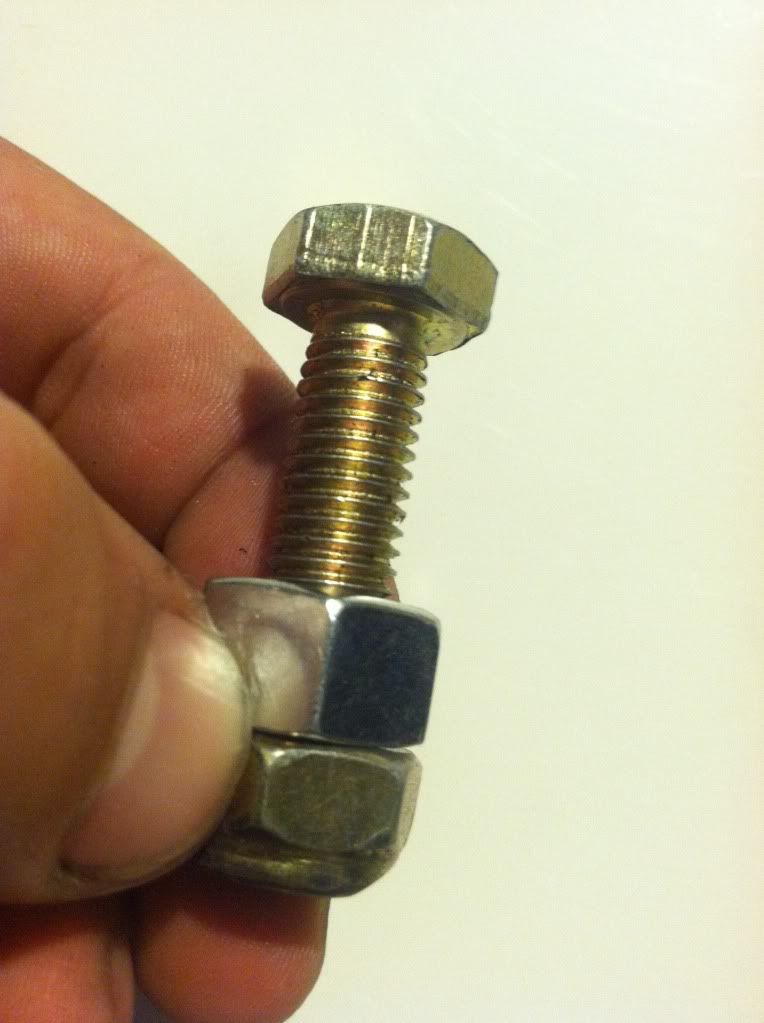

                          You can make one for free with a 17mm bolt and 2 nuts... (this one isn't 17mm but you get the point) If you want to loosen use the inside nut, if you want to tighten use the outside nut, Have fun!
                          sigpic
                          benvideoproductions.com
                          http://www.youtube.com/watch?v=617yNrOrRfo&

                          Comment

                          • JrCamacho
                            Mod Crazy
                            • Feb 2011
                            • 618

                            #14
                            thank you yeaseth! I thinking about doing that, and now i know it works!

                            Comment

                            • CHIF8008
                              No R3VLimiter
                              • Nov 2010
                              • 3447

                              #15
                              Sweet. Some good info in here
                              -FREEDOM- is cruisin at 80, windows down and listening to the perfect song-thinking "this is it"
                              -The Beauty in the Tragedy-
                              MECHANIC SMASH!!- (you all know you do it)
                              Got Drop?? ;-)
                              Originally posted by JinormusJ
                              But of course
                              E30s are know to be notoriously really really really ridiculously good looking
