LSD cut in half. Stack view

[Wanganstyle]

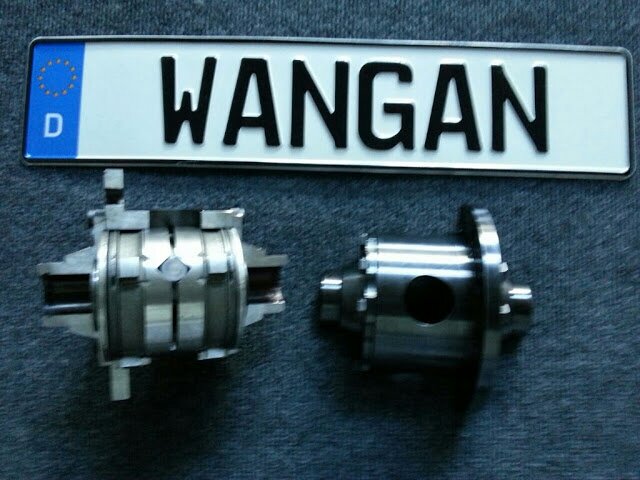

Cut a prototype in half yesterday for show off/sample - this is my own billet CNC modular capsule designed for E46 non-m, e92/90, 128, x1, x3, Z4 and newer car fit; E30/e36 ZF internals are fitted.


one can see the internal stack configuration of a standard 25% locking 2 clutch disc LSD.

[Wanganstyle]

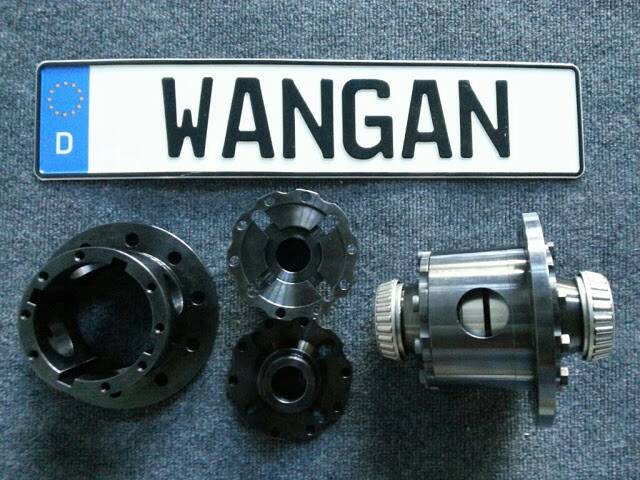

Daily driven in norcal. CNC BILLET ORIGINAL LSD

[JOMARO]

CNC original Billet LSD for e46++ link is no worky :-(

[Wanganstyle]

K here post again

[LJ851]

Wangan, i think he is saying the link in your sig is dead:

CNC original Billet LSD for e46++

http://forum.e46fanatics.com/showthread.php?t=993477

It does not work for me either.

[Wanganstyle]

http://forums.bimmerforums.com/forum/showthread.php?1943293-Photo-documentary-process-of-e46-non-m-LSD-Update-backdate
