I'm currently working on mildly refurbishing my E30 and I got a few questions. Thanks in advance for help.

NEW:

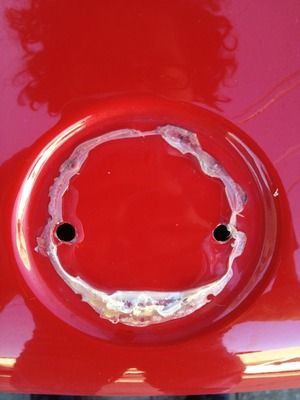

How can I remove glue safely w/o damaging the paint ?

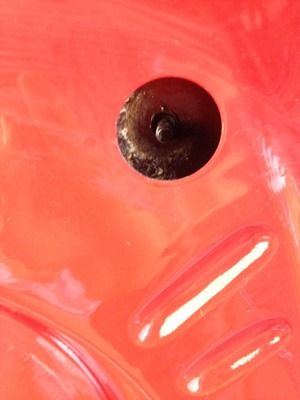

I noticed that a piece was missing from my IS rear spoiler. this is a shot of the right side of the trunk. What do I use to secure it ?







I noticed this zip tie and I believe its holding up my oil cooler. Is the broken piece the mount? Where can I get it/ what's the part #

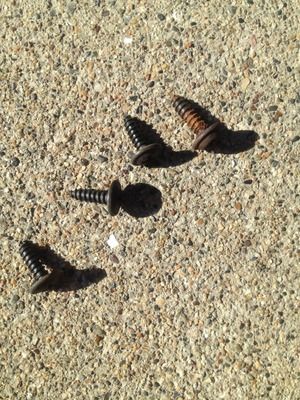

What size are the grill front grill screws ?

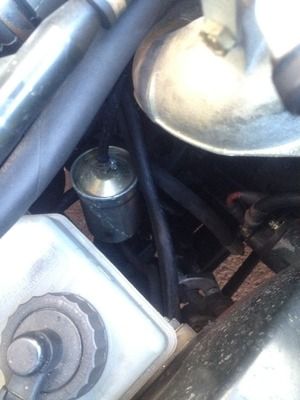

When I was getting my car smogged, my mechanic told me this piece was wrongly positioned/ or the tubes were... what is this piece called and where can I get another?



Thanks again for the help! :D

[vpilarrt]

Screws are 3.8 x 13 mm, sheet metal style. The last picture looks like an add-on fuel filter. The stock fuel filter is on the drivers side bottom of the car just forward of the rear wheel.

[jw 325ic]

Go to realoem.com and fill out your model year info and look up part #s.

[PogiMonster]

Is the broken piece in the second pic, the oil cooler mount ?

[PogiMonster]

New questions thanks in advance guys!

[jw 325ic]

Could be the cooler mount, can you get better pics of it? For the spoiler you could use a nut and washer that will fit in the hole but if you go on realoem.com you can get the replacement plastic nut. For the glue i would try goo gone, scratchX, polish, maybe simple green?

Here, found 2 part numbers for the spoiler nut:
Thread m6: 16131176747
Thread m5: 51711934930

One is $0.53/ea other is $0.23/ea and the foam washer:
51711916637 at $0.32/ea

Oil cooler p/n's from http://realoem.com/bmw/showparts.do?...61&hg=17&fg=05


07 Body nut ST6,3-2 2 09/1987 07129925743 ENDED
07 Body nut ST6,3-2-ZNS3 2 09/1987 07129904232 $0.16
08 Bush 2 09/1987 17211712844 $0.98
08 Bush 2 09/1987 17211723788 $4.02
09 Rubber grommet 2 09/1987 17211712839 $1.98
09 Rubber grommet 2 09/1987 17211723786 $4.73
10 Hex head screw B 6,3X34-Z2 2 09/1987 17201719280 $1.18
10 Hex head screw B 6,3X50 2 09/1987 17201723799 $0.95

[PogiMonster]

Could be the cooler mount, can you get better pics of it? For the spoiler you could use a nut and washer that will fit in the hole but if you go on realoem.com you can get the replacement plastic nut. For the glue i would try goo gone, scratchX, polish, maybe simple green?

Here, found 2 part numbers for the spoiler nut:
Thread m6: 16131176747
Thread m5: 51711934930

One is $0.53/ea other is $0.23/ea and the foam washer:
51711916637 at $0.32/ea

Oil cooler p/n's from http://realoem.com/bmw/showparts.do?...61&hg=17&fg=05


07 Body nut ST6,3-2 2 09/1987 07129925743 ENDED
07 Body nut ST6,3-2-ZNS3 2 09/1987 07129904232 $0.16
08 Bush 2 09/1987 17211712844 $0.98
08 Bush 2 09/1987 17211723788 $4.02
09 Rubber grommet 2 09/1987 17211712839 $1.98
09 Rubber grommet 2 09/1987 17211723786 $4.73
10 Hex head screw B 6,3X34-Z2 2 09/1987 17201719280 $1.18
10 Hex head screw B 6,3X50 2 09/1987 17201723799 $0.95

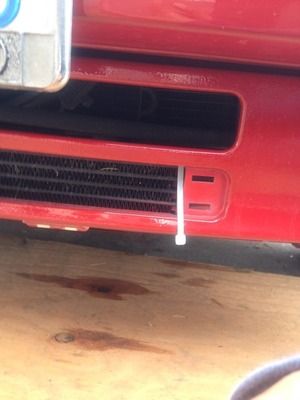

Shot of the front end: zip tie is on the driver side

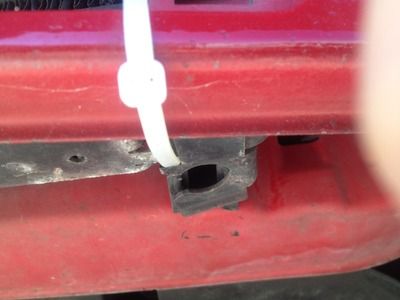

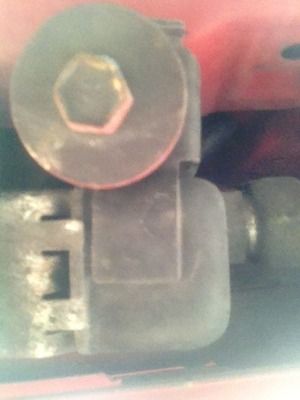

What the zip tie is holding/seems broken

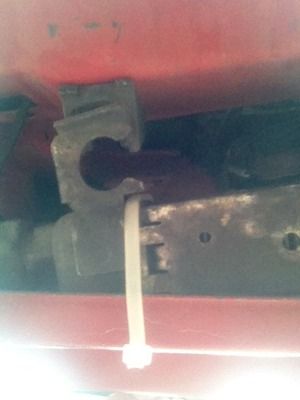

Right side. W/O zip tie

[jc72]

realoem.com is your friend

[catuned]

Your just missing the mount and bolt for the cooler. Very easy fix..

Come by the shop. I should have everything you need.

[robo_trigger]

For the glue? 3m adhesive remover. It's for body shops. It'll do the trick.
