    Mystery wires in dash need help identifying

    Hi I'm in the middle of re installing my dash and I have 3 wires that I cannot seem to find places for. All 3 are in the center of the dash area by the obc and fan knobs etc. 2 of them are lights and the other is a yellow wire with a square white connector.




    #2

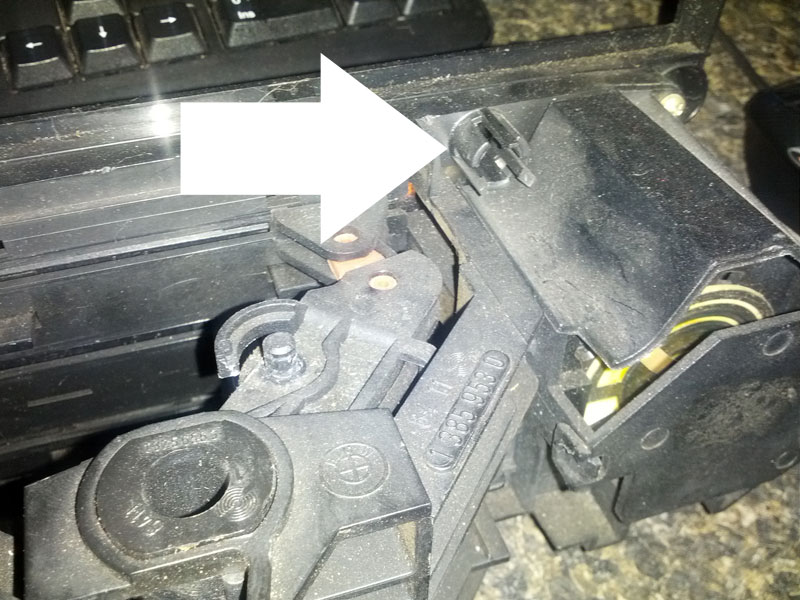

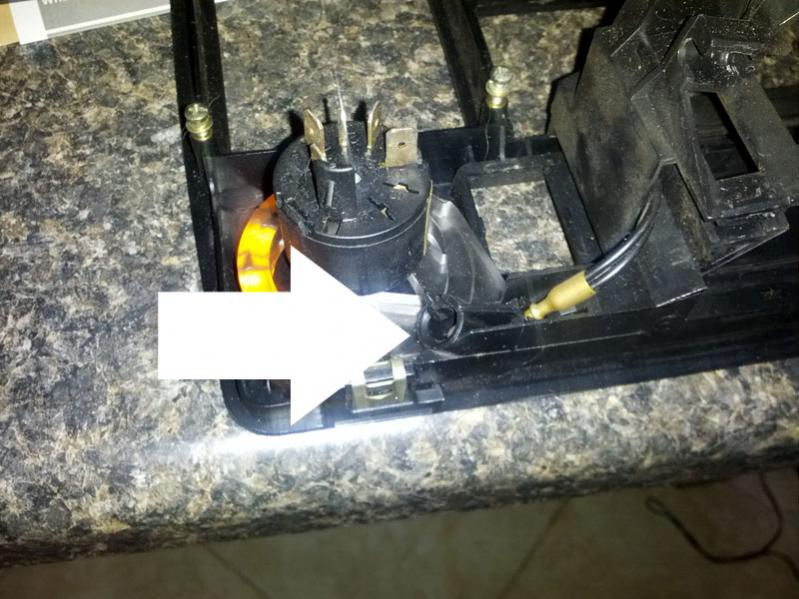

    The lights 'plug into' your HVAC panel and light up everything. There are 2 spots for them.





    The other plug could be for your ashtray light..in the back? Looks like it only has one wire though.
    Attached Files

    instagram: @tonerrrr
