    Please help identifty this connectors location

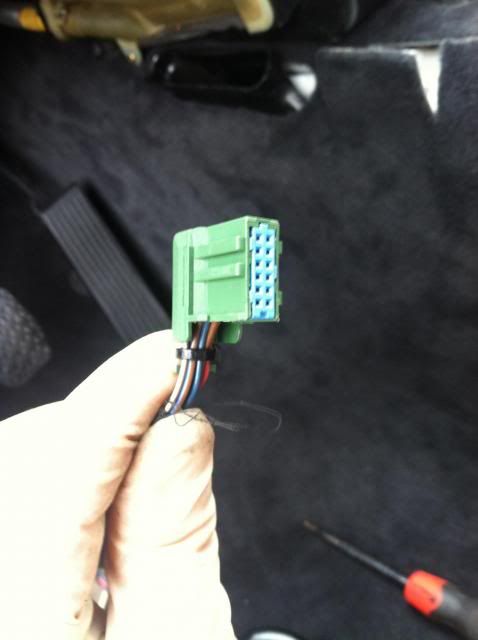

    its attached to the cluster wiring harness. i had the heater box out and cant figure out where it goes and now my tachometer doesnt work:

  • steve68
    E30 Addict
    • Jan 2013
    • 457

    #2
    dosent it go in the back of the cluster?? or is that one bigger?
    88 M3 Lachsliber glass top, 90 IS project,

    Comment

    • e30-325
      Advanced Member
      • Jul 2009
      • 171

      #3

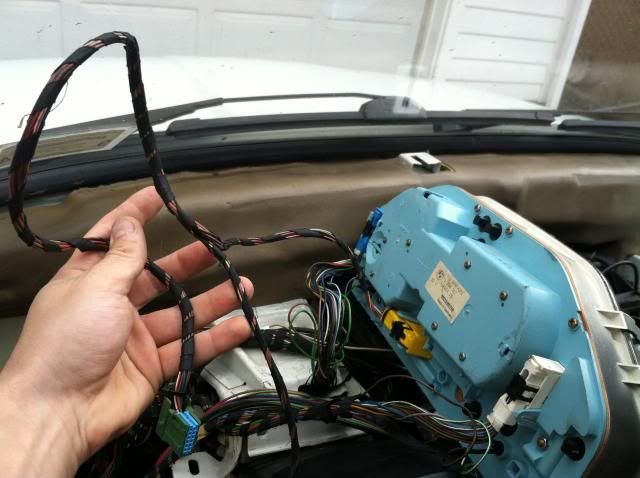

      theres three connectors that go to the back of the cluster: yellow, white and blue. this comes off of the wiring with the yellow cluster connector. it reaches to almost the passenger side of the heaterbox but i cannot find the plug for it. ill get another pic up in a min

      Comment

      • e30-325
        Advanced Member
        • Jul 2009
        • 171

        #4

        Comment

        • e30-325
          Advanced Member
          • Jul 2009
          • 171

          #5
          im a dummy!

          plugs into the back of the clock/obc! didnt fix my tach though haha
