Hi guys
Bought myself a whole 325e 2door chrome bumpers with what I'm told is a 325i head
I have swapped the motor gearbox tailshaft front suspension and diff into my 318i plastic bumpers

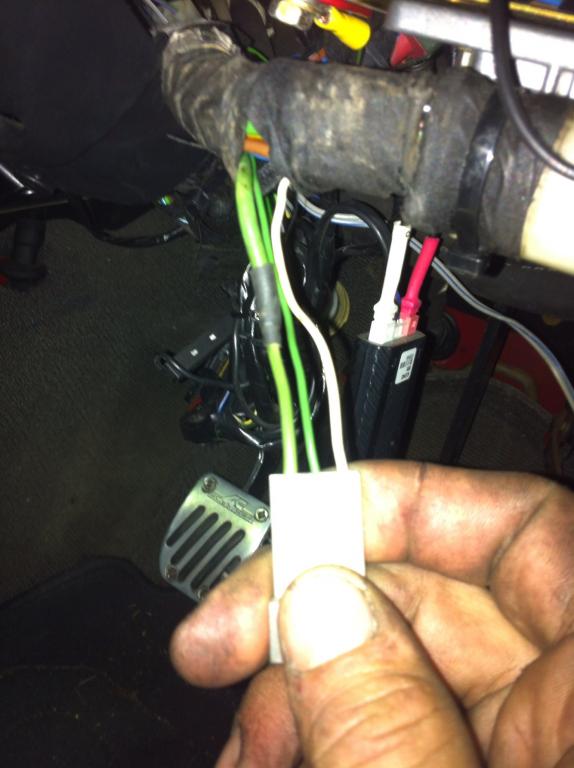

On the ecu loom from the 325e I have a white connector large green wire small green wire small white wire see pics
On The body loom from the 318i i have a black connector with large black/red small black/violet I think this is for a/c ?
I need to know how/ if this has to be connected and what they are ? I tried wiring diagrams but could not find 1 for 318i 88 model
From what I've searched and read the wires in the white plug need to go to c101 engine loom plug to mate with my body harness for everything to work is this right ???
Also will I have any problems with the pinouts of round connectors c101 ???
Bought myself a whole 325e 2door chrome bumpers with what I'm told is a 325i head
I have swapped the motor gearbox tailshaft front suspension and diff into my 318i plastic bumpers
On the ecu loom from the 325e I have a white connector large green wire small green wire small white wire see pics
On The body loom from the 318i i have a black connector with large black/red small black/violet I think this is for a/c ?
I need to know how/ if this has to be connected and what they are ? I tried wiring diagrams but could not find 1 for 318i 88 model
From what I've searched and read the wires in the white plug need to go to c101 engine loom plug to mate with my body harness for everything to work is this right ???
Also will I have any problems with the pinouts of round connectors c101 ???
