    Pos. bat. cable routing

    I would like to relocate my battery to the trunkfor numerous reasson's.
    Does anybody know where cable is ran through from the trunk to the "jump start" point under the hood.??
    sigpic
    Wastedincome420@yahoo.com

    CURRENT STOCK LIST:
    00' e38 750iL HighLine=Highway Queen
    92' e30 318 vert=Aint going anywhere
    91' e34 535iM=Aint going anywhere
    91' e34 525iA=For parts
    92' e34 535iA=For parts


    #2
    Originally posted by wastedincome
    I would like to relocate my battery to the trunkfor numerous reasson's.
    Does anybody know where cable is ran through from the trunk to the "jump start" point under the hood.??
    x2

    Comment


      #3
      It runs along the passenger's side lower door sill all the way back.
      Adam Fogg- '88 M3

      Common sense- It's the new 'gifted'

      Comment


        #4
        lol, drivers side (same side) here :D

        I just ran 2GA cable, it already had some pretty thick shielding around it which would protect it rather well, but just to be safe i used some garden hose, cut it down the center to split it open then wrapped it over the wire. Very little chance of something rubbing through it now, just wanted to be sure it wasnt going to earth to anything :)

        When you look along the sill you will see it basically has sheets of bitumen installed to cover access to where you can run the wire. Just chip it off and replace it once you are done.

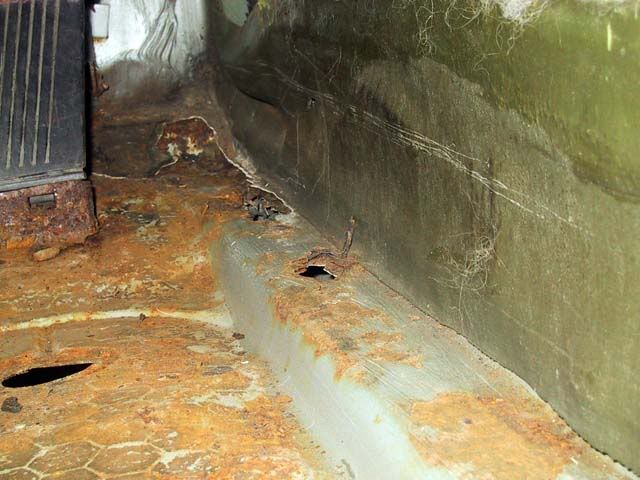

        Excuse the rust, but you can see the stuff covering it there :)
        Just a little project im working on
        - http://www.lse30.com -

        Comment


          #5
          I wonder if cabby's have that same channel or if it blocked near the top storage box. Maybe this is why they never mounted the battery in the trunk on Vert's.
          Maybe it would be easier to run a new power cable under the car
          sigpic
          Wastedincome420@yahoo.com

          CURRENT STOCK LIST:
          00' e38 750iL HighLine=Highway Queen
          92' e30 318 vert=Aint going anywhere
          91' e34 535iM=Aint going anywhere
          91' e34 525iA=For parts
          92' e34 535iA=For parts

          Comment


            #6
            If one were to route a battery cable running out of the front wheel-well, up over the fender, duct taped to the roof, back down along the rear pillar, and into the rear wheel-well..

            It would look really bad [ass].
            -----Zen and the Art of e30 Maintenance - / - Zen TOC - / - Zen Summary

            Comment


              #7
              Originally posted by Simon S
              If one were to route a battery cable running out of the front wheel-well, up over the fender, duct taped to the roof, back down along the rear pillar, and into the rear wheel-well..

              It would look really bad [ass].
              I like your panache, kid.

              :up:

              Comment


                #8
                If you guys figure out a way to do that and want the cable that is used to relocate the battery...i have 3. PM me if any of you want one.
                ~Neil

                www.oceansidemotorsports.com

                Comment


                  #9
                  Originally posted by TurboRefriculator
                  If you guys figure out a way to do that and want the cable that is used to relocate the battery...i have 3. PM me if any of you want one.
                  ~Neil
                  Thank you Neil for the offer ;). If I ned one I'll give ya holla
