Hello I have a 87 325e e30. About a week ago my turning signals don't blink on the cluster but work when I put the caution button(red button that makes the turn sign blink at the same time lol). Anyway I was thinking it could be the relay but now my check control panel doesn't work and I can't tell if my car need any work. Anyone know the reason why my turning signals and check control panel doesn't work?? Thanks.
Announcement
Collapse
No announcement yet.
check control panel and turning signals don't work.
Collapse
X
-
Originally posted by Erkan View PostHello I have a 87 325e e30. About a week ago my turning signals don't blink on the cluster but work when I put the caution button(red button that makes the turn sign blink at the same time lol). Anyway I was thinking it could be the relay but now my check control panel doesn't work and I can't tell if my car need any work. Anyone know the reason why my turning signals and check control panel doesn't work?? Thanks.
Check fuse 4. although I doubt that's the issue.

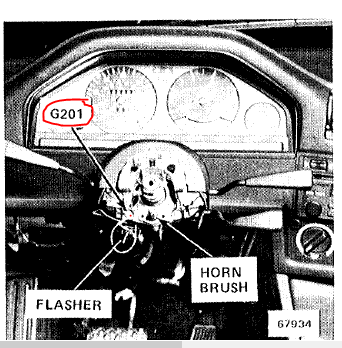

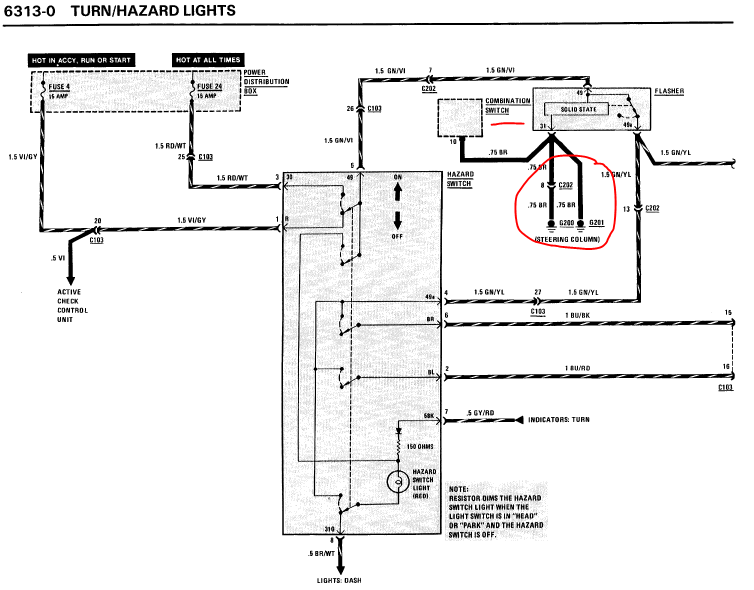

Check connector C103.Violet/grey wire. Connector location is shown below.
full PDF here.
-
do the outside lights work with stalk moved to either direction? or is it just the bulbs in cluster dont flash?
if not normal cause for loss of turn signal operation from the control stalk is the ground wire coming loose in the column , remove the steering wheel and column cover and find the brown ground wire coming off the stalk and find the other end which should have an eyelet with a screw holding it to the column assembly ,make sure the screw is tight ....Last edited by spdracrm3; 02-08-2015, 05:44 PM.Angus
88 E30M3 X2
89 325IX
92 R100GS/PD
:)
