    HELP! 88 wiring harness to 87 cluster connector

    i have the connector for the 88 cluster. can anybody tell me which wires i need to splice onto it from the 87 cluster wires?
    Attached Files

    #2

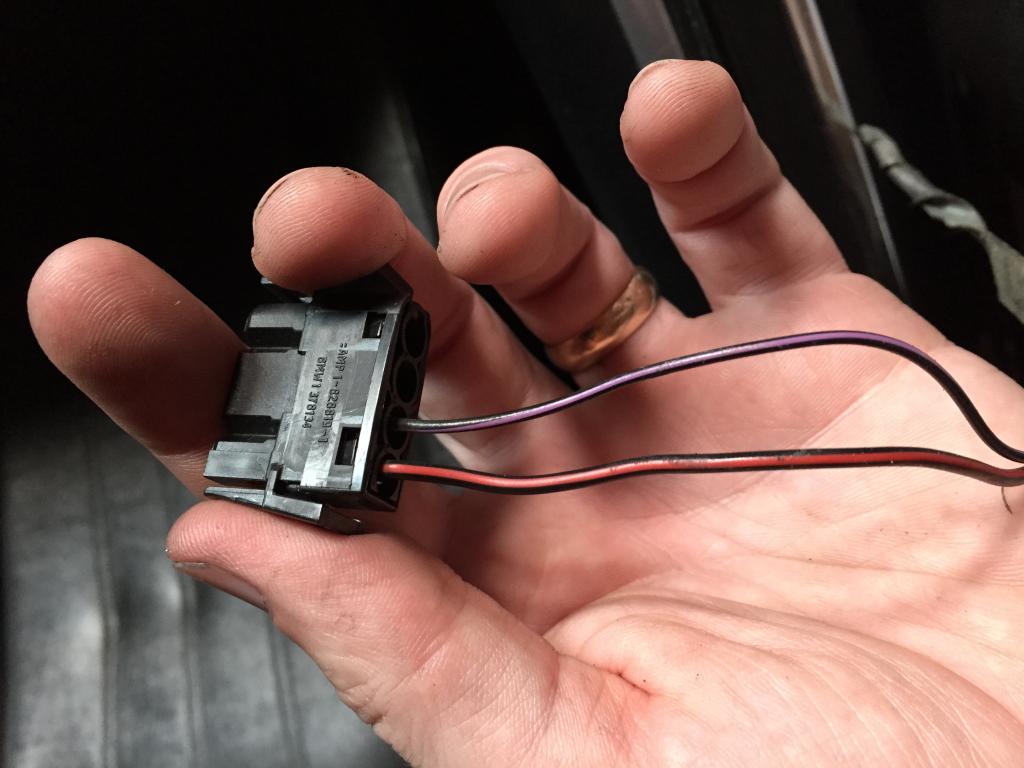

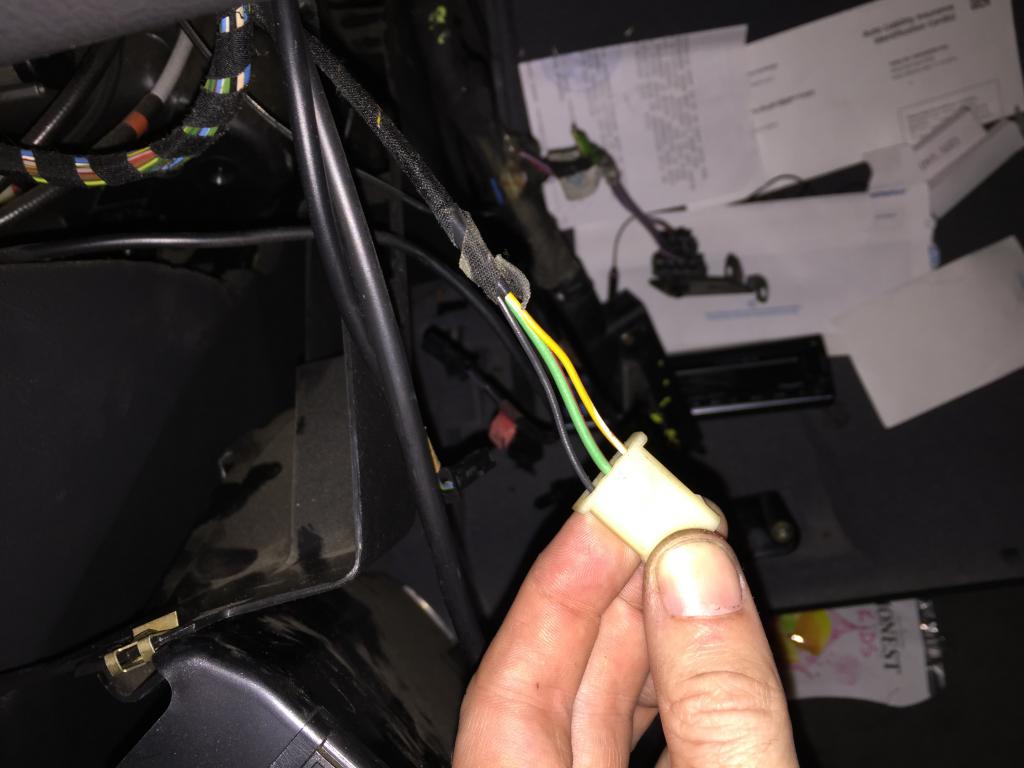

    img9011 is the 88 cluster connector and img2859 is the 87 cluster connector

    Comment


      #3
      See http://wedophones.com/BMWManualsLead.htm for the wiring diagrams for both years production.
      The car makes it possible, but the driver makes it happen.
      Jim Levie, Huntsville, AL

      Comment


        #4
        Addendum...

        One problem that you will encounter is with routing of the Tach and Econometer signals. On an 87 they connect to the engine harness via a pigtail connector near the DME connector. The 88 and later cars route those signals through C101. The best fix is to add the two pins to the body side of C101 (dealer parts) and re-wire the Tach and Econometer to the body side of C101.
