    Need expert help!!!

    I have a 1991 318i with power side mirrors. I took out the mirrow switch when taking the door panel apart and need help. I forgot the order of which color wire goes where. On the back of the mirror switch, theres 6 male connectors for 6 wires - green, brn, blk, blk/wht, blue, blue/wht

    Please help. anyone have a wire diagram or just a picture of where they go? thanks.
    2005 M3 6MT
    1991 318i - project car
    1997 Civic CX Hatchback - DD

    www.clutchstopper.com

    sigpic

    #2

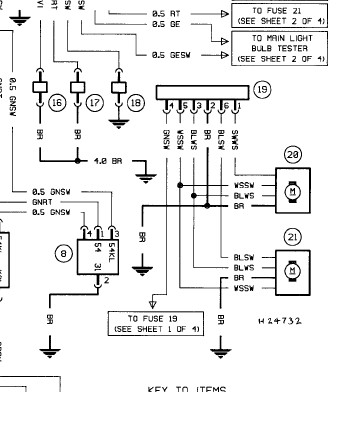

    This is the wiring diagram for the mirrors and switch, hope it helps.

    19 is the mirror switch, and 20 - 21 are the mirrors.

    Good luck :)
    Attached Files

    Comment


      #3
      what does BR and BLWS and all that mean? is there a color chart?
      2005 M3 6MT
      1991 318i - project car
      1997 Civic CX Hatchback - DD

      www.clutchstopper.com

      sigpic
