Heater valve differences?

[Jean]

Does anybody have both an early and late heater core valve on hand to compare them? Is the electrical connection on both the same?

I am trying to confirm if one from a 325i will work on my 318i, the heater core itself is the same, but the valves show different part numbers on realoem.

Thanks!

[Jean]

bump

[BrewCity11]

What's wierd is i have two different valves and they both say they are for the same models.

I'll take some pics tonight and post them. Shoot me a PM to remind me.

[Jean]

Thank you, will do :)

[Jean]

bump

[BrewCity11]

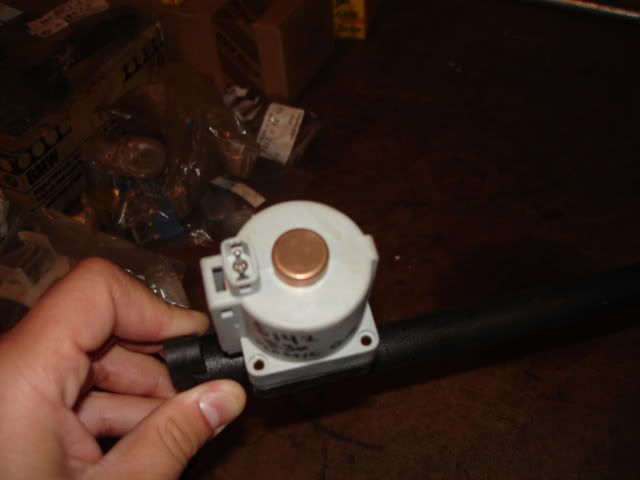

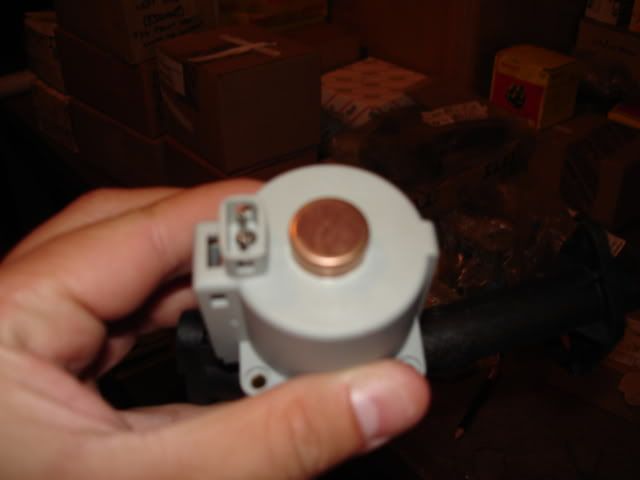

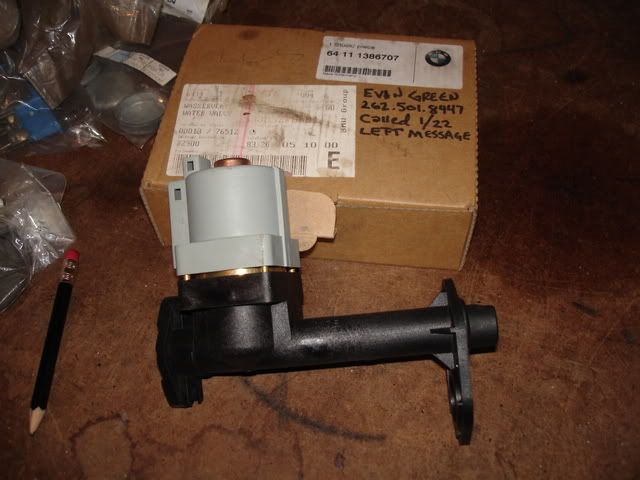

Here are the two i have.

First one: 64 11 1 386 706



Second one: 64 11 1 386 707



Only difference I can figure out is one is for a Canadian Model????? Anyone?

(Both are brand new and for sale $70 shipped)

[Jean]

Thank you, so the pipe length is different as well or is it just the angle of the shot?

I bought one from a 325i, give me until this weekend for it to arrive and see if it will work ok?

According to realoem i need 64111386707

[Jean]

BTW, the 706 is for the heater core where the holes aren't next to each other.
