Wilwood Dynapro, pads sliding out

[sharky]

OK so my Massive strret kit is installed and I have been driving the car around (note none of this is from a problem to do with massive products, this is mearly thier adapters and wilwood/racing brake setup) It was fine for a few dyas and now I see that my pads are falling out, I popped them back in but they sstill seem to slide out. Isnt there some sort of pin that holds them in, seems likr there are provisions for this, sorry I feel stupid asking but everything seemed right on install.

[z31maniac]

Did the calipers not come with a big W shaped metal pin?

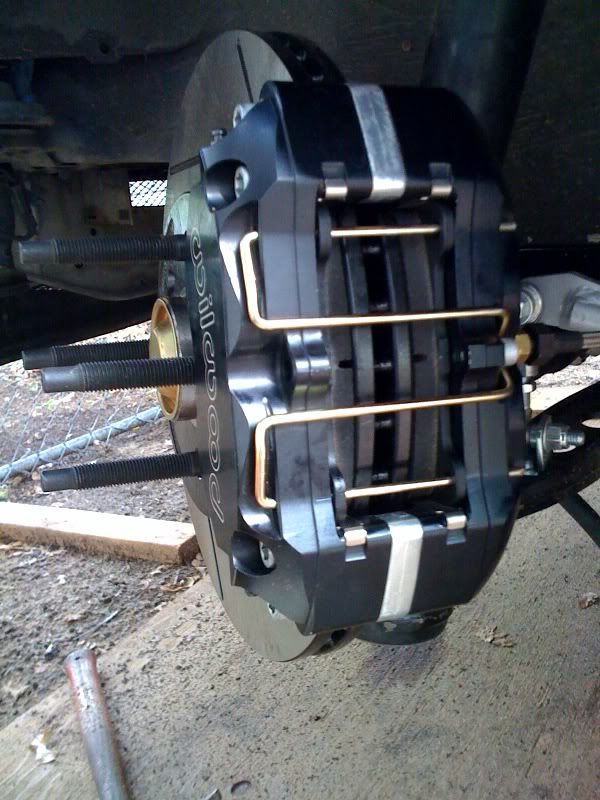

This is what the caliper should look like with pads in, retaining clip and the bolt that holds the retaining clip.

[Massive Lee]

Indeed. There shoud be the "W" shaped retaining clip. If you bought the calipers off me, they should also come with the bridgebolt which is optional. Using a straight brakeline fitting as pictured is a recipe for problems as the brakelines will hit the swaybar on full lock. Which is why I supply 90° fittings.

Lee

[sharky]

Lee I bought the Calipers from Jegs as well as the pads, no bridge bolt and I think that is what I need. I have the W pin, maybe they just wernt put in right, have to take a look as soon as it isnt frickin freazing out. Good thing its not a DD

[Massive Lee]

Yup. It is cold outside. I just started a fire in the fireplace.

The bridgebolt helps stiffening the caliper. It is an option from Wilwood. It will not keep the pad from moving, the W-shaped pin will. BTW The caliper cam with a short 1/4" bolt, which is used to retain the clip as can be seen in the picture in that second post.

Would you have a close-up picture of your install. Maybe we can see what is not "right".
