Rear subframe seats strange after rebuild?

[ron1999]

Hi just did my rear subframe, had the car on Auto-X and after leaving the track i started to hear clank's from the rear end.

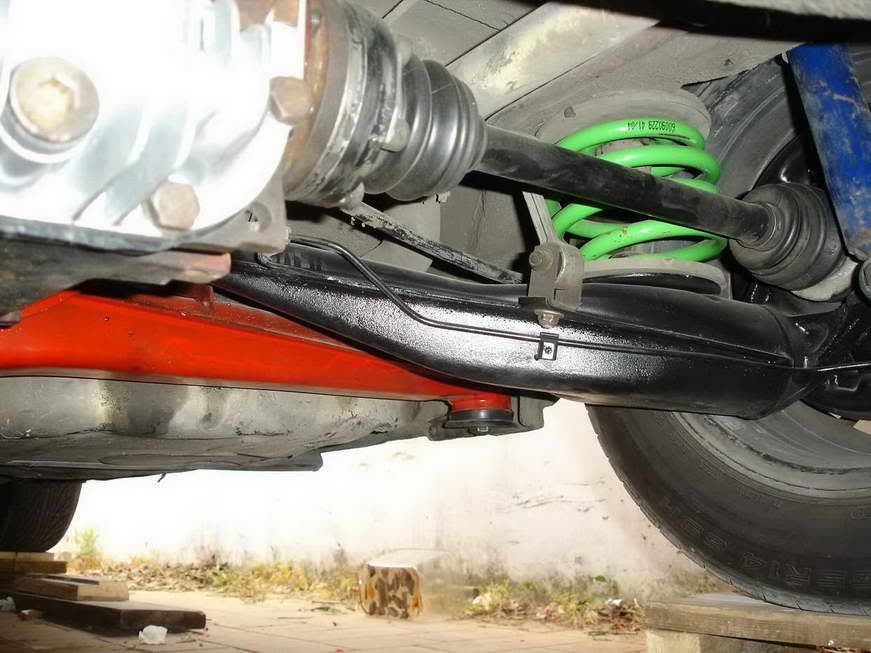

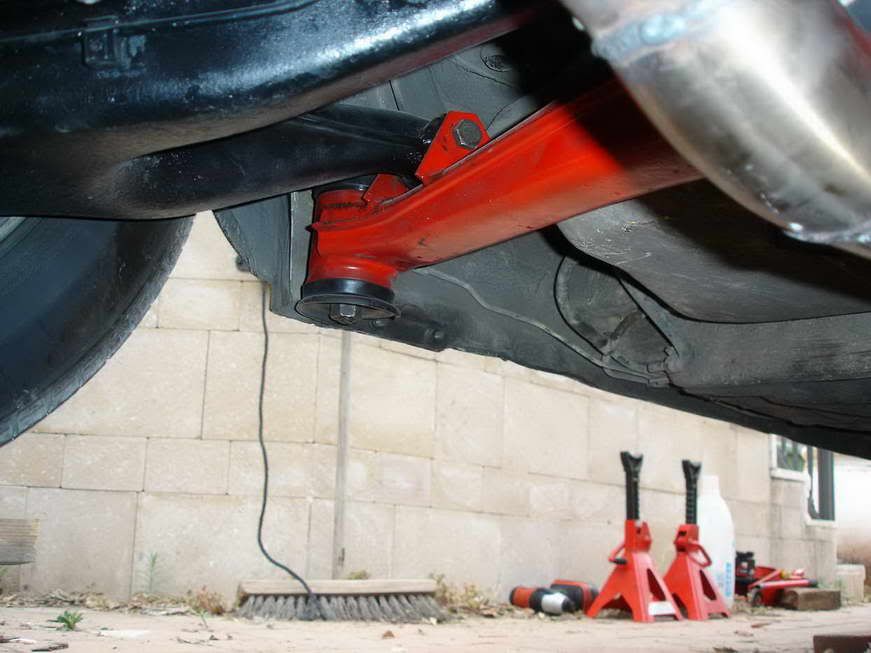

i raised the car and could see that the right side of the subframe seats somewhat strange (see in the pictures)

could it be that i installed the subframe wrong?
the mounts are AKG 70D

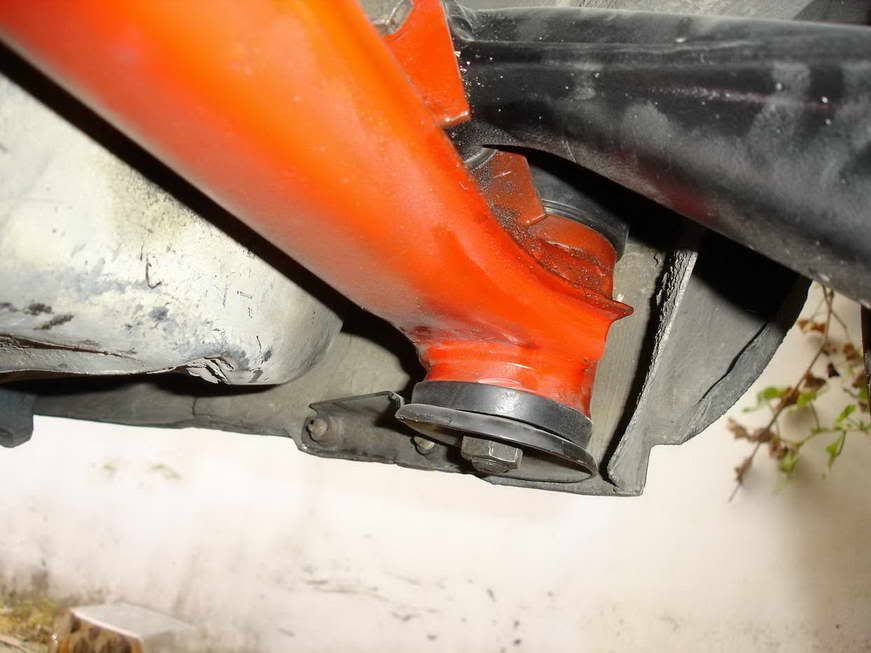

right side:

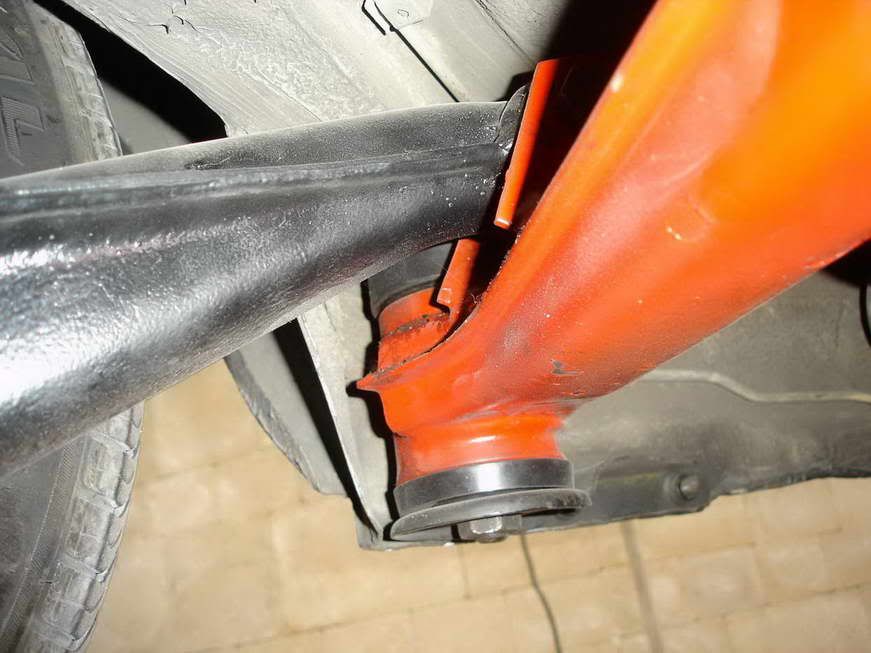

left side:

[325issguy]

Mine seems to have the same problem, not sure if its because I did not use the washers from the stock subframe bushings.

[FredK]

70A or 75D?

If you have the 70A, you need to reuse the washers.
If you have the 75D, you do not need the washers.
