    Drivers front side lower totally stock

    I'm sitting on totally stock suspension and my drivers side is abot a half inch lower than the passnger side. What could this be? I read up that possibly it could be a subframe bushing, but that was for the rear being different heights. But I do have a clunky sort of noise when shifting. I thought it was just the diff. Now it's really bugging me that I saw it haha. The drivers side looks good, almost the same wheel gap as the back, but the passenger side is more gap up front.

    Any suggestion?
    Thanks

    1987 325 | @e30_hunter |

    #2
    Originally posted by JRYE30 View Post
    I'm sitting on totally stock suspension and my drivers side is abot a half inch lower than the passnger side. What could this be? I read up that possibly it could be a subframe bushing, but that was for the rear being different heights. But I do have a clunky sort of noise when shifting. I thought it was just the diff. Now it's really bugging me that I saw it haha. The drivers side looks good, almost the same wheel gap as the back, but the passenger side is more gap up front.

    Any suggestion?
    Thanks

    Is the right rear higher than the left rear?
    Here is my photo gallery answering common questions about Ground Control Suspension, and e30 suspension problems in general.
    Ground Control Gallery

    The Ground Control facebook page: Dragged, kicking and screaming into social media to see what happens next.
    Ground Control facebook page

    Comment


      #3
      No, the drivers front side, I don't know if you mean right from the outside of the car or inside haha.

      1987 325 | @e30_hunter |

      Comment


        #4
        Im thinking that for some stupid reason there a spring pad taken out on only the drivers side

        1987 325 | @e30_hunter |

        Comment


          #5
          ...also make sure you don't have a lower spring perch that is collapsing.
          Suspension tips here...
          http://www.r3vlimited.com/board/album.php?albumid=757

          sigpic

          Comment


            #6
            I dont know what part that is. I'm completely new to suspension, its sad haha

            1987 325 | @e30_hunter |

            Comment


              #7

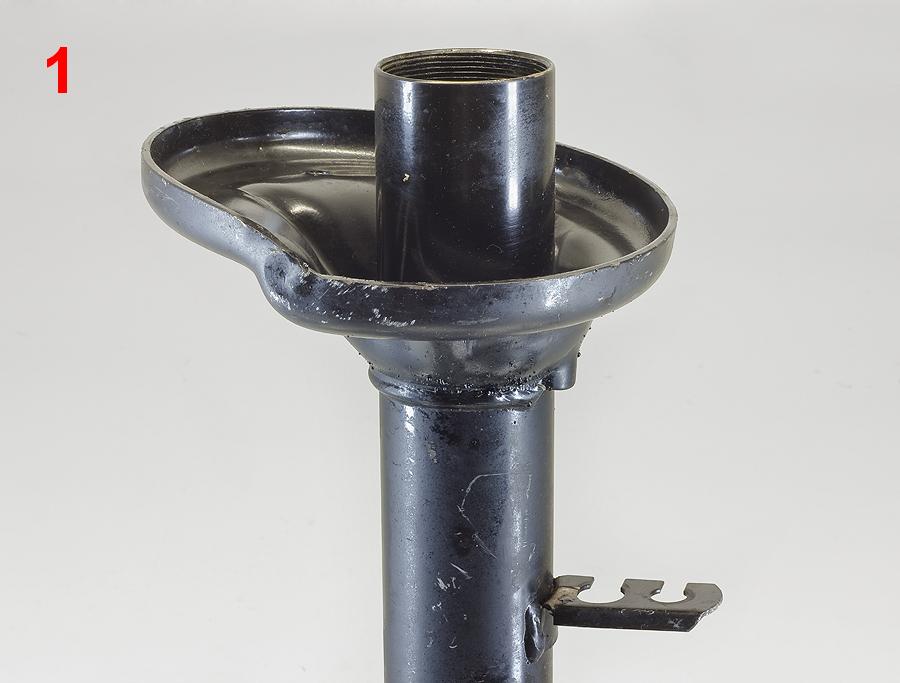

              The perch...

              The big "disk" your spring sits on...
              I've seen them collapse especially if they are rusted.
              Attached Files
              Suspension tips here...
              http://www.r3vlimited.com/board/album.php?albumid=757

              sigpic

              Comment


                #8
                I'm guessing it's because after 20+years of weight being in the drivers seat, that spring has compressed more. Mine does it to.

                Comment


                  #9
                  I never thought of that. But my spring perch has no rust. In fact the whole car has no rust. Has an underbody coating and everything is like new. But the previous two owners mainly only drove alone, without a passenger, so my drivers spring is probably sagging.

                  Thanks

                  1987 325 | @e30_hunter |

                  Comment


                    #10
                    You may be correct...my '89 was lower on the drivers side in stock form.
                    Suspension tips here...
                    http://www.r3vlimited.com/board/album.php?albumid=757

                    sigpic

                    Comment


                      #11
                      Thanks for the help. Well I'll see what happens after lowering spirngs and new shocks, hopefully that straightens things out

                      1987 325 | @e30_hunter |

                      Comment


                        #12
                        Originally posted by JRYE30 View Post
                        No, the drivers front side, I don't know if you mean right from the outside of the car or inside haha.

                        Well often the left front is down and the right rear is UP. This is because cars dont tilt left to right, they tilt corner to corner
                        Here is my photo gallery answering common questions about Ground Control Suspension, and e30 suspension problems in general.
                        Ground Control Gallery

                        The Ground Control facebook page: Dragged, kicking and screaming into social media to see what happens next.
                        Ground Control facebook page

                        Comment


                          #13
                          nice my first forum win
