did things a bit differently than a standard E36 rack coupler mod.
Instead of the spacer/bolt/washer combo that is normally used, I made replacements for the stock pins that normally hold the coupler together out of high carbon tool steel.

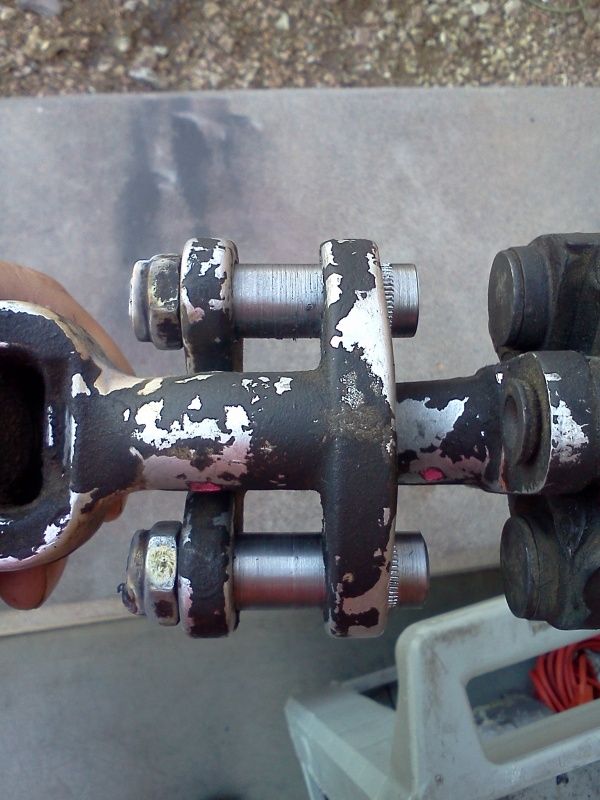

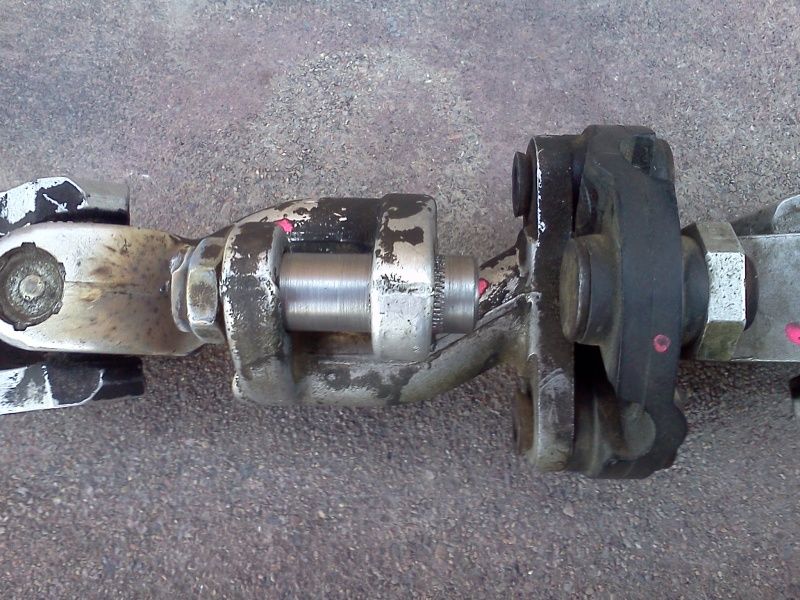

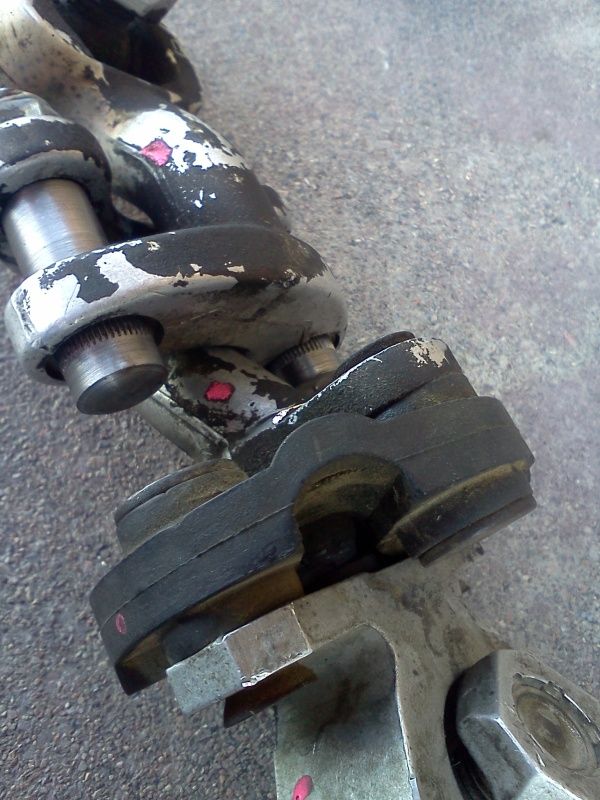

here are a couple of pics of the results. should work just fine for this application.

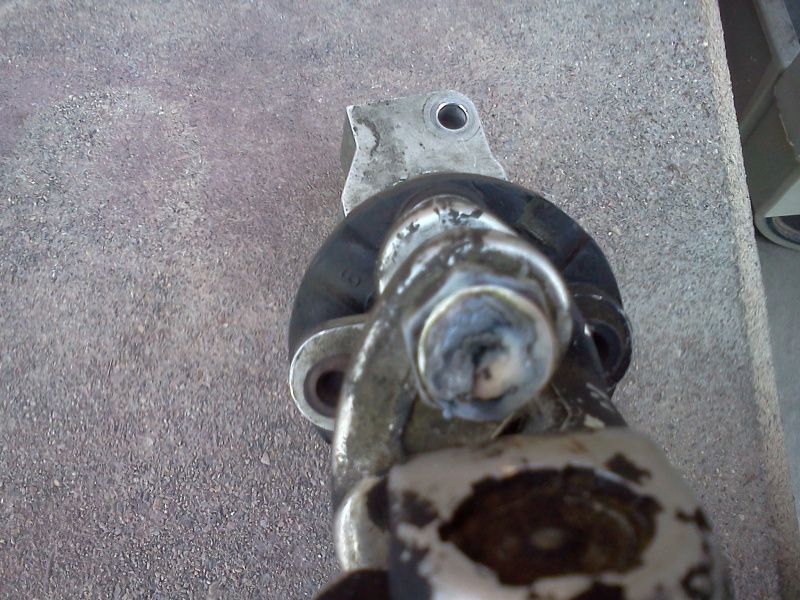

the small diameter end was threaded for a used guibo nut, torqued and then welded to the pin to eliminate backing off. beats loctite all to hell...
at full adjustment, I have .625 of distance between the halves of the coupler, same as the spacer stack normally used. no more adjustment is available due to physical contact between the halves.
Instead of the spacer/bolt/washer combo that is normally used, I made replacements for the stock pins that normally hold the coupler together out of high carbon tool steel.
here are a couple of pics of the results. should work just fine for this application.
the small diameter end was threaded for a used guibo nut, torqued and then welded to the pin to eliminate backing off. beats loctite all to hell...
at full adjustment, I have .625 of distance between the halves of the coupler, same as the spacer stack normally used. no more adjustment is available due to physical contact between the halves.
...
