    how does the front sway bushing mount?

    I see a tab and a bolt hole, the bolt hole is easy enough to figure out but the front tab doesn't seem to mount to anything - anybody got a pic? realoem is all but useful for this.

    91 318i | 87 535iS
  • ttrousdell
    E30 Mastermind
    • Nov 2009
    • 1770

    #2

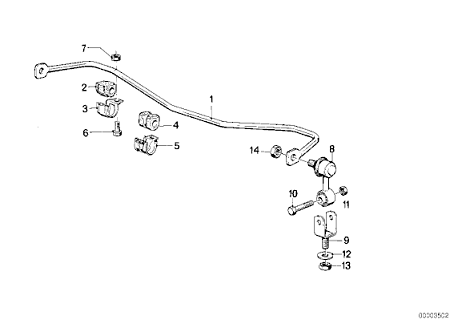

    Are you talking about part #3? If you are, I admit is a bitch to put in since the new bushing is bigger then the space in the bracket. To get the bracket up against the frame so you can put on the bolt, I had to use a jack to push it up.
    Click image for larger version

Name:	4.png
Views:	1
Size:	22.9 KB
ID:	7148108
    Last edited by ttrousdell; 11-11-2012, 03:07 PM.

    The Build:
    http://www.r3vlimited.com/board/showthread.php?t=191125

    Comment

    • I*Do*Werke
      Wrencher
      • Dec 2010
      • 259

      #3
      The tab tucks into the slit opposite of the bolt hole. When you are installing it, make sure you tuck the tab in first, then screw in the nut. Once you see you the slit, it will all make sense
      ^M52B28^

      Comment

      • ScHpAnKy
        E30 Mastermind
        • May 2009
        • 1573

        #4
        Originally posted by I*Do*Werke
        The tab tucks into the slit opposite of the bolt hole. When you are installing it, make sure you tuck the tab in first, then screw in the nut. Once you see you the slit, it will all make sense
        balls, gotcha - jack idea sounds like the best bet.

        91 318i | 87 535iS
