Suspension Techniques Rear sway bar installation

[Garageaholic]

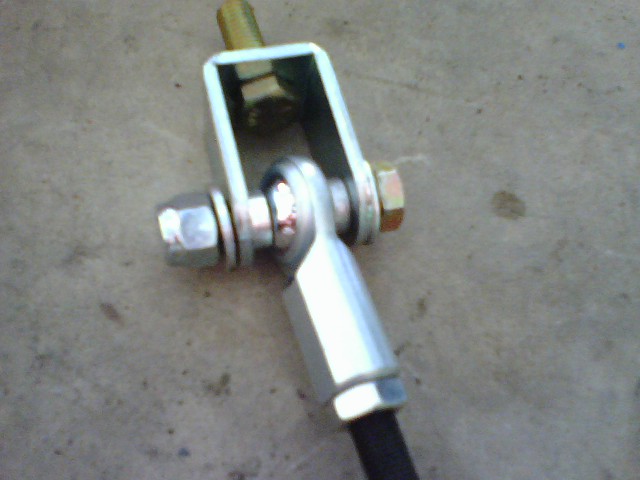

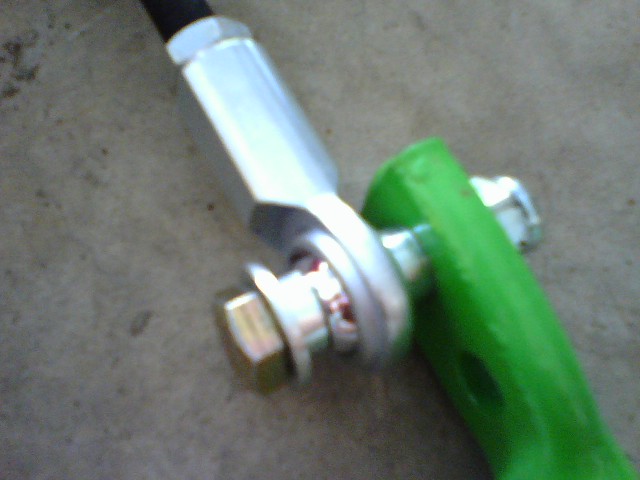

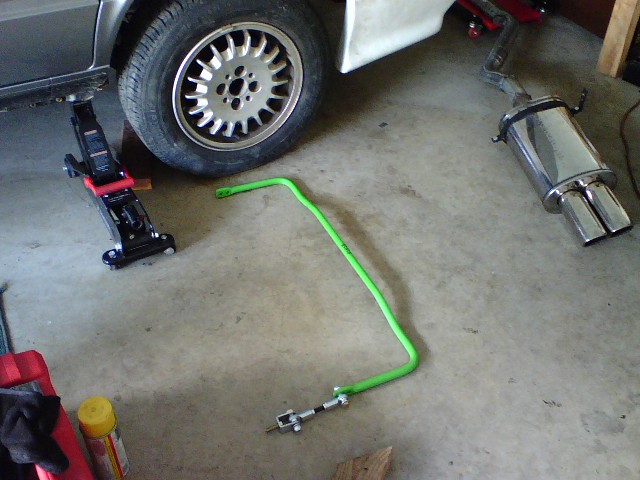

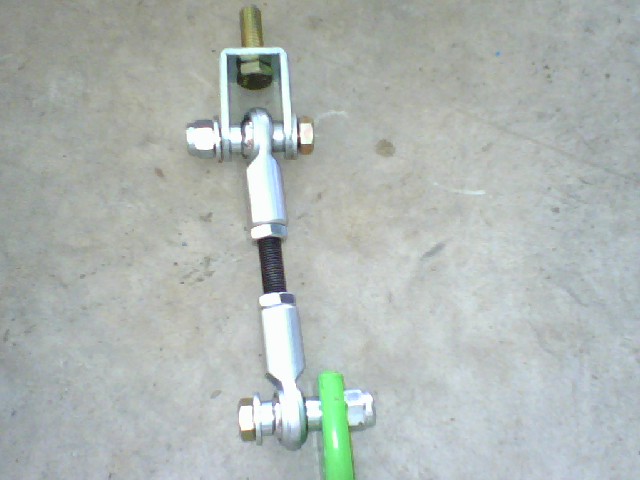

Is this the way that the rear sway bar should be installed? The instructions are wack-ass vague and I'm trying to piece it together.... If anybody has any experience with this, take a look at the pictures (sorry about the quality, took them w/ phone) and let me know if this is accurate with the spacers/bearings and washers....

I dont want this thing snapping on a turn. thanx guys!

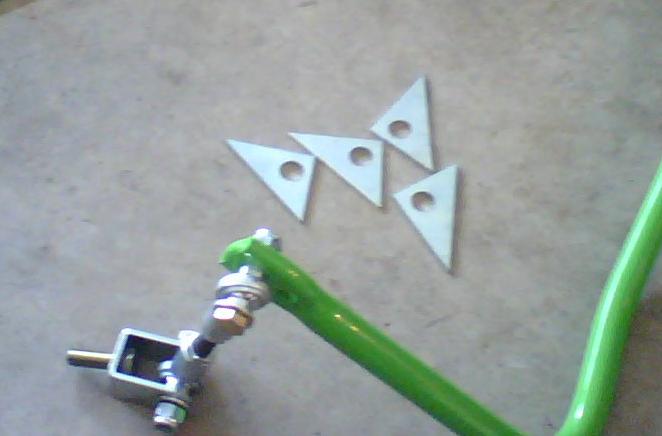

oh yeah,, what the hell are those triangular metal slabs for?? I can't find where they fit anywhere...

[Van Westervelt]

the tabs are to be welded in for reinforcements i beleive on the trailing arms

[NC325iC]

correct, they welld in where the sway bar mount goes for reinforcements

[browntown]

this is turner's kit, slighly different but shows you essentially what needs to be welded, there are instructions in pdf from this link too:

http://www.turnermotorsport.com/html/detail.asp?PRODUCT_ID=TSU3075305

[Garageaholic]

If there are 2 of them in that picture welded as shown, then why do i have 4? it it 2 sides per control arm?

[Garageaholic]

Forget it, i answered my own question.. One above and one below the factory tab on the control arm... 2 per side... 2 sides = 4... math is fun..

thanx for the help guys...

[Beej '86 325es]

Here's a shitty weld job on mine...

[Garageaholic]

Yo beej, is that 2 of them on top of eachother?

[Beej '86 325es]

na, they just sandwich the original tab.

[Garageaholic]

na, they just sandwich the original tab.

K, my question is answered, thanx alot guys. and great with the pictures. thanx beej.
