Placement of side repeater

[Nickish91]

Hey guys.

I'm desperately in need of some help.

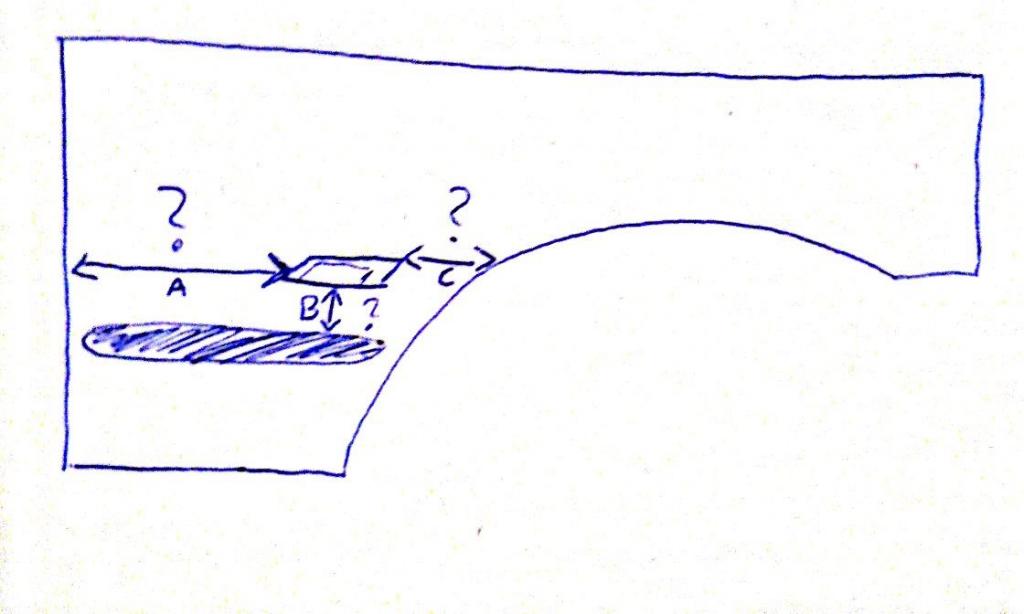

I've just imported a BMW 525i from 1990 and in order for me to put it on the road, I need to mount side repeater on the front fenders. I wanna do this as original as possible, so I would really appreciate it if one of you could tell me the dimensions I've drawn in the attachment so I can put it in the right place.

A is the distance from the rear of the fender to the "tip" of the indicator

B is the distance from the wheel arch to the "tip" of the indicator

C is the distance between the indicator and the plastic trim.

I hope you can be helpful and thank you very much in advance.

Nicolai

[Farbin Kaiber]

Worst case, find a MY95+ fender to measure off of. I tried to search for ya, but it seems this info is a lot more available on the e30 around here, but it seems no forums have this data handy.

[spanish pants]

If you can wait, i'll have my car back in a few days and i can take the measurements for you.

[AndrewBird]

I measured the driver side, so it's opposite of your drawing, but here you go:



168mm down from the edge of the body line
158mm from the back edge of the fender
Opening measures 23mm x 58mm
Screw hole is centered vertically and 18mm in front of the hole. There is a plastic insert that goes in the hole for the screw.

This is on my euro 94 525ix touring.
