How do I?!?! this wastegate is confusing.

[fiftytakedowns]

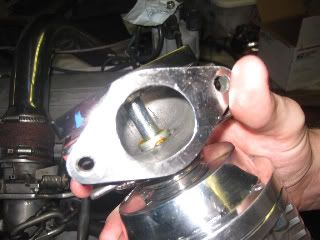

bottom


SIde
s

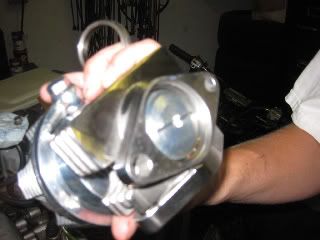

Then there are two nipples, one on the top of the wastegate, the other on the side, I dont know where each one goes.



Thanks for helpingme out, I am almost done with my turbo motor, but this is confusiing me, I bought it off ebay for 20 bucks, and have no Idea the brand, or anything just that it is rated 8-12 psi.

[Danny]

Throw it away.

That wastegate will lock up on you can you'll be fucked.

[fiftytakedowns]

edit isnt working,

NOT sure Which flange mounts directly to exhaust header.

[fiftytakedowns]

Throw it away.

That wastegate will lock up on you can you'll be fucked.

It feels like it is Locked up, the bottom Piston thing is not moving, but I dont know anythign about wastegates.

[Danny]

I don't know much about external ones either, so I'm kind of at a loss for words here.

[Jbpka06]

hook up vac line to the bottom port, leave top port open unless using a boost controller, bottom flange goes to manifold.

[daniel]

you arent using that on your 5k mile e30, are you?

[fiftytakedowns]

nope, its going on a 2002

[fiftytakedowns]

hook up vac line to the bottom port, leave top port open unless using a boost controller, bottom flange goes to manifold.

thanks!

[backtrail69]

Stop turboing your car.... if you don't understand how a simple wastegate works... give up now you are fucked.

[e30slut]

Stop turboing your car.... if you don't understand how a simple wastegate works... give up now you are fucked.

[fiftytakedowns]

Stop turboing your car.... if you don't understand how a simple wastegate works... give up now you are fucked.

I understand how a turbo system works, not how an unlabeled wastegate works. This is not the first time I have worked on turbo'd cars. but thanks for the positive input.

[fiftytakedowns]

I think the wastegate is fubar. The piston on the bottom is not moving, even when I try to push it with my hands, can anyone confirm this?

[ieatpeople]

it may just have a really stiff spring. or it is in fact a paperweight.

[HiTheNameIsBJ]

it may just have a really stiff spring. or it is in fact a paperweight.

I have a Synapse WG002 which handles alot higher boost than that, and I can push it in with my hand. It's a paperweight.
