    Fuel Pump Relay?

    Does anyone know where it is specifically located?

    1991 BMW 318i (Old Shell RIP, Now Being Re-shelled & Reborn)
    1983 Peugeot 505 STI
    1992 Volvo 240 Wagon
    2009 Toyota 4Runner SR5 Sport 4WD
  • selturk
    E30 Enthusiast
    • Dec 2008
    • 1197

    #2
    for m20 or m42..?

    Comment

    • freeride53
      R3V OG
      • Jul 2007
      • 11972

      #3
      m-4-deuce. :D

      1991 BMW 318i (Old Shell RIP, Now Being Re-shelled & Reborn)
      1983 Peugeot 505 STI
      1992 Volvo 240 Wagon
      2009 Toyota 4Runner SR5 Sport 4WD

      Comment

      • selturk
        E30 Enthusiast
        • Dec 2008
        • 1197

        #4
        it's located underneath the large plastic cover on the top of the firewall. The one in the middle is the fuel pump relay. Right one is the main dme relay, left one is O2 sensor heater relay.

        Comment

        • selturk
          E30 Enthusiast
          • Dec 2008
          • 1197

          #5

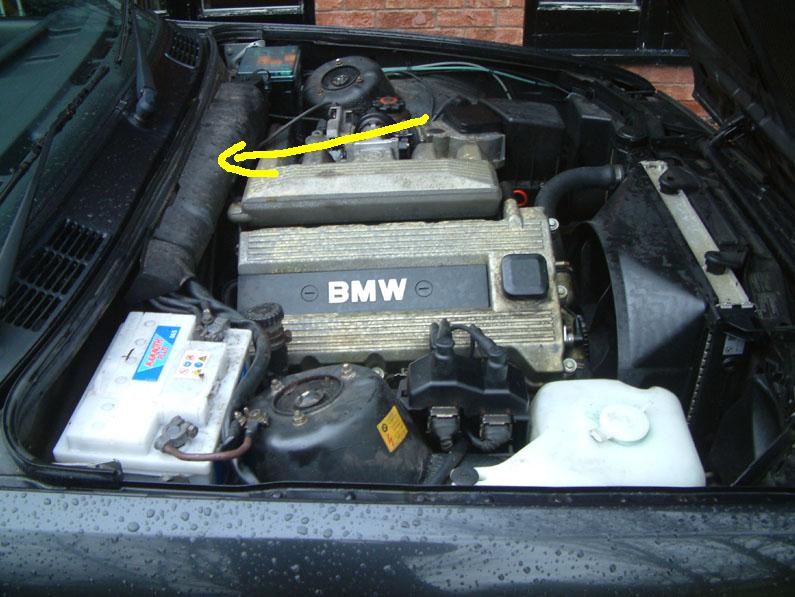

          ok this will help you understand better:

          (it's underneath that long black plastic piece :) )

          Click image for larger version

Name:	relay.JPG
Views:	2
Size:	77.8 KB
ID:	7122520

          Comment

          • freeride53
            R3V OG
            • Jul 2007
            • 11972

            #6
            thanks! btw, why isn't your battery in da trunk?

            1991 BMW 318i (Old Shell RIP, Now Being Re-shelled & Reborn)
            1983 Peugeot 505 STI
            1992 Volvo 240 Wagon
            2009 Toyota 4Runner SR5 Sport 4WD

            Comment

            • selturk
              E30 Enthusiast
              • Dec 2008
              • 1197

              #7
              it's not my car.. I found it quick on google image. It's a convertible 91 318ic, battery is in different location.
