Need help diagnosing my windows.

[RefinedThinking]

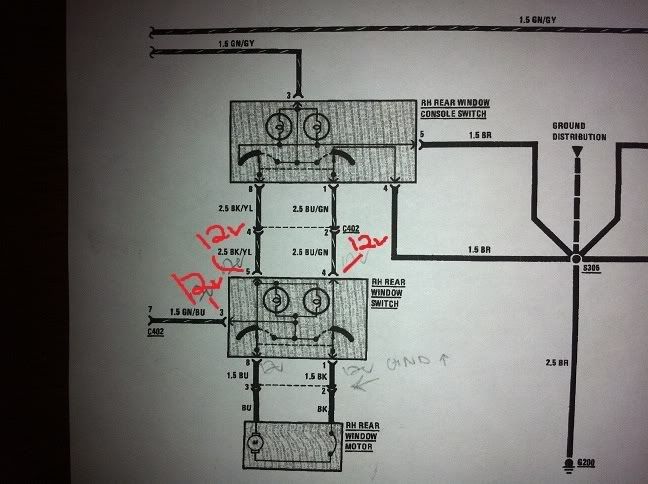

Okay so my RR window only works with the front switch. It does not go up or down when using the rear switch. I am using known good switches because Ive been switching them around to make sure. This is my wiring diagram.

[RefinedThinking]

27 views and no input? shucks...

[dannyyisntt]

Is that little square button off to the right on the center counsel up or down?

Something simple /shrug

[RefinedThinking]

It's not the kill switch. Thanks for the response though.

[StereoInstaller1]

So when you used the other side rear switch, still no workie? I do not know for certain, but I think those are rear-specific switches, maybe check RealOEM.com to make sure.

Blue/green and black/yellow should show a solid ground on them until the "up" or "down" command switches one of them to +12V. I see you show the +12V, but are both motor wires a solid ground (don't you dare use a DVM to test either) when both switches are at rest?

[RefinedThinking]

When both switches are at rest there's 12v all the way through. When I use the front switch to lower or raise the rear window there is a voltage drop. But when I use the rear switch both stay at 12v.

[GDA]

Have you pulled the rear door window wiring harness and checked everything for continuity? You could have a short somewhere in that harness right where it meets up with the rear window switch....

[RefinedThinking]

Yeah I even took the connector out and hooked the wires directly to the switch.

[StereoInstaller1]

When both switches are at rest there's 12v all the way through.

OK, that is an issue.

As I said, test for ground on those wires. They should show a ground all the way through, until one is in use.

The ground comes from the front switch, just as it shows in the diagram.

[RefinedThinking]

I did some digging and discovered someone previous did some crazy wiring. They had something else wired into the rear kill switch.. Now I have to try to clean up this mess. Thanks for the help though stereoinstaller.

[StereoInstaller1]

Check that front ground point, if someone was monkeying in there, it could be wrong or loose or whatever...good luck!

Luke
