S52b32 - right electric conector

[gianluca1505]

Hello Guys,

I'm Gianluca from Italy . In this week I posted with my bad english a lot message in this forum, in techical posts of s52b32 engine.

that is my history :

I have a my bmw z3, year 2000 , second body edition, with engine M52B20 TU - 150 HP . last year I burn my original engine and , with my lucky , i finded a crash car : one BMW z3 M coupe 1998 with engine S50B32 - 320 Hp . So I buy this car and I made the trasform . I change the brake, the differential, the trasmission ZF, and all motor. That work it was very easy , because I buy not only motor , but all crash car , so I had all component .

Now I finish the mechanical trasformer , but start a very big problem . the electronic parts . From a lot diagrams I find that the electric plant are the same , but the engine link and instruments cluters are different, but that have the same original.

So , i read in your forum that a lot people put inside the E30 cars , the S50B32 engine , so a lot people make my same difficult, so I ask if that peoples can help me , because I'm good "sunday mechanical" but I not electrical people.

I post the picture of my work.

Ps : i'm sorry for my bad english.

[gianluca1505]

how i can put on the pictur ?

[gianluca1505]

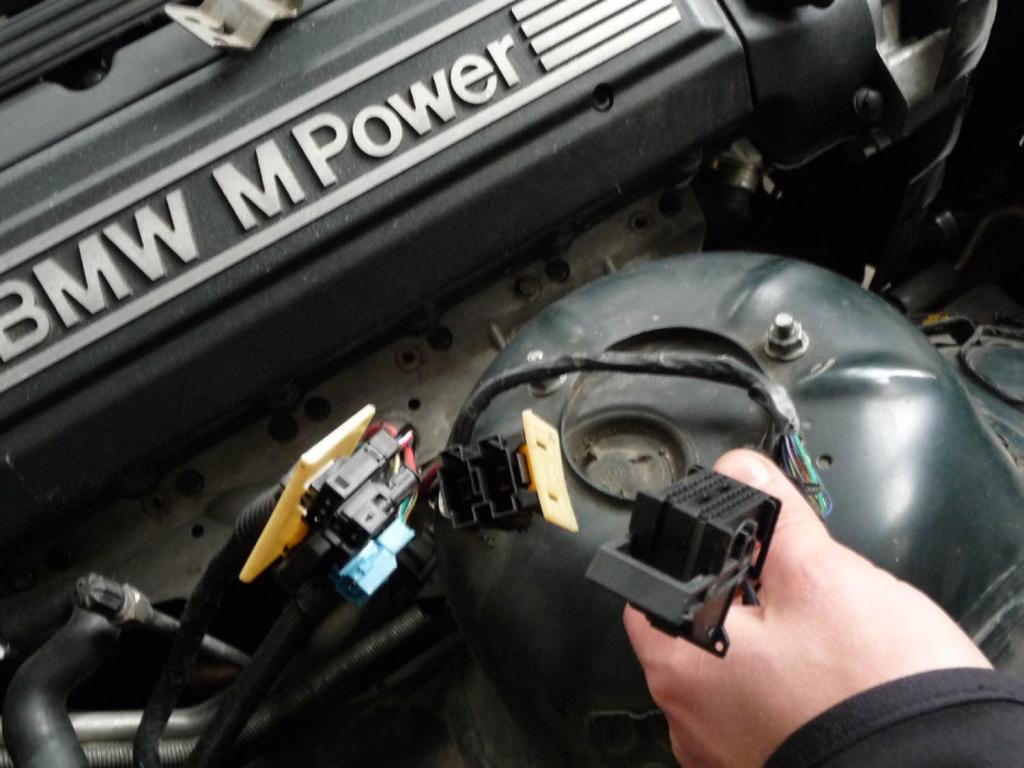

this the original eletric plant from M52B20 Tu engine

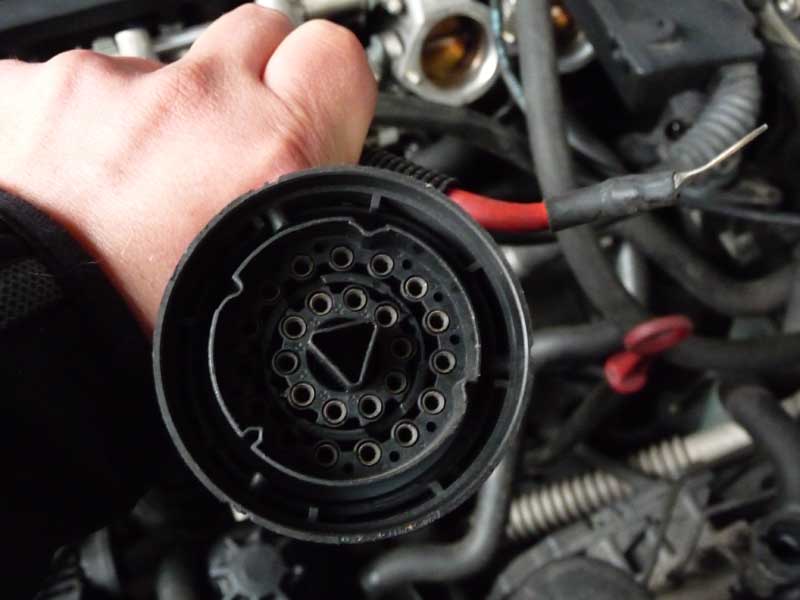

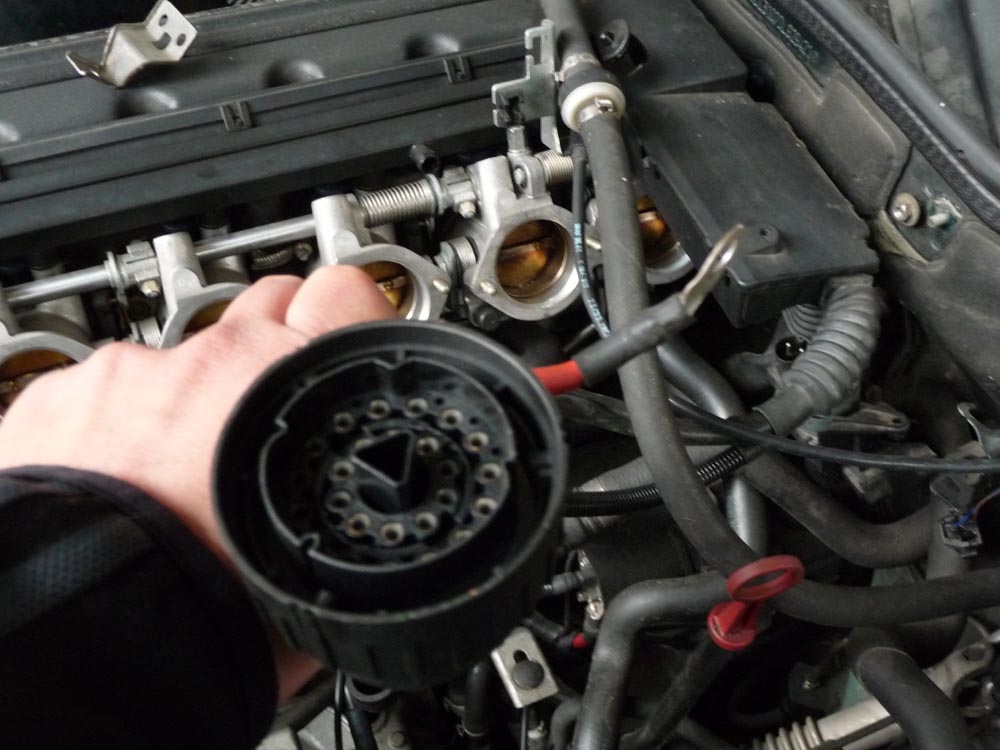

this is the S52B32 engine circular connector. That connector is link to ECU Bmw

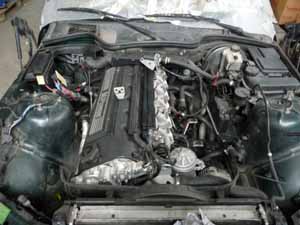

this is my work

[gianluca1505]

I must VERY TANK mister Andrew that he write me that :

Hello,
You swapped an S54 into a car that originally had an S50b32? Here is my pinout for the S50b32 in a 1998 M3:
Note: Colors below are in German
X20 Pin # Item Wire color C101 Connection Pin # Description 1 nothing 2 nothing 3 nothing 4 A/C Compressor Relay SW/BL 5 Pressure Switch SW/GR - related to automatic climate control 6 Automatic Climate Control VI/GR - Ignore 7 EWS II GN Connect to EWS II pin 4 Enable signal from EWS II pin 4 8 Fault Lamp GR - Check engine light on instrument cluster 9 nothing 10 Reverse Light Switch BL/GE Connect to blue/white wire at shifter Reverse sensor on transmission 11 Coolant Temperature to cluster BR/GE 12 Coolant Temperature to cluster BR/VI 13 Fuel Pump Relay GN/VI 13 Fuel pump relay to fuse box 14 Speed Signal SW/WS 14 Speed signal output from insturment cluster to speed signal input at DME 15 Starter Motor SW/GN 15 12v Starter motor, goes to unloader relays 16 Diagnostic Link WS/GE 17 Diagnostic Connector WS/VI Connect to EWS II Pin 2 Diagnostic functions for EWS II 18 Starter via EWS II SW/GE 18 via EWS II Pin 1 Starter signal from ignition switch to solenoid, via EWS II 19 Diagnostic Connector WS/GN 11 Instrument cluster to diagnostic connector (service reset) 20 Engine Speed SW 9 and EWS II pin 12 Engine speed output from DME to instrument cluster 21 Ignition GN 7 12v ignition 22 Live Run & Start GN/WS 23 Oil Pressure BR/GN 5 Oil pressure switch output to instrument cluster 24 Fuel Rate WS/SW 8 Fuel rate output from DME to instrument cluster 25 Alternator BL 1 Alternator D+ to instrument cluster
X6031 Pin# 10 BR/RT - Oil temperature sender to instrument cluster


but I would ask Him : the pin that you write are the pin on the connector of the picture ? I write here because in the privat message it's very confusional and I prefer make a post and in the future that post can help another man as me.

[gianluca1505]

I must VERY TANK mister Cormier that he send me a electric plant :

but I dont undestand because i'm not electric I need help to read .

Take a look at this link if you have a multimeter electrical tool these are easy to use

http://www.gbnetwork.co.uk/bmw/downloadetm.html

PS : i made a post because from privat message it's all confusion , and the second if i made a post , that post can help another man as me.
