    Help r3v! Engine sludge, see pics, need advice

    Background:

    My girlfriend drives a 2006 Saturn Ion, 5 speed, 106k. When she purchased the car last year she purchased an extended warranty with it (rolled into the loan, approximately 24 months remaining on the loan). She bought the car from an independent dealer lot. The warranty covers all powertrain components.

    Lately we have noticed that when the car is started there is more valvetrain noise than normal until the engine is warm. So she took it to our local GM dealer to have it looked it. GM dealer suspected worn timing chain components so they called the warranty company to make a claim.

    The warranty company requested that the dealer open up the engine so they could send someone to visually inspect the valvetrain before they warranty the work.

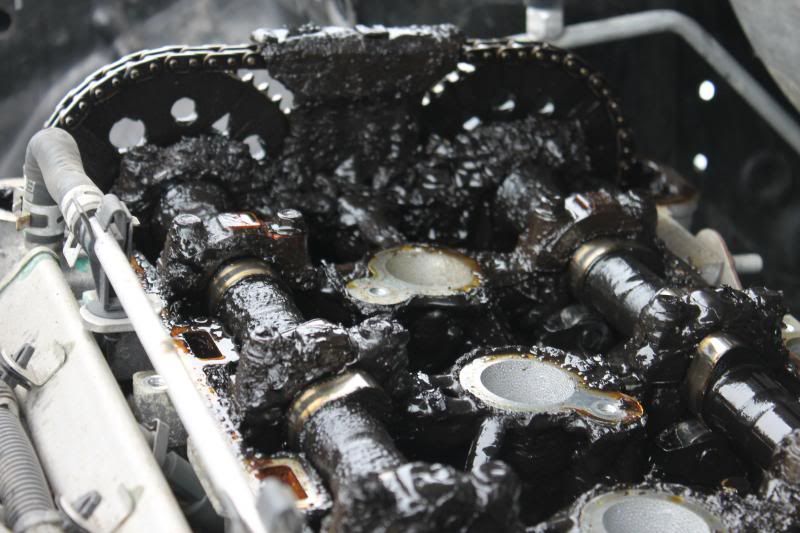

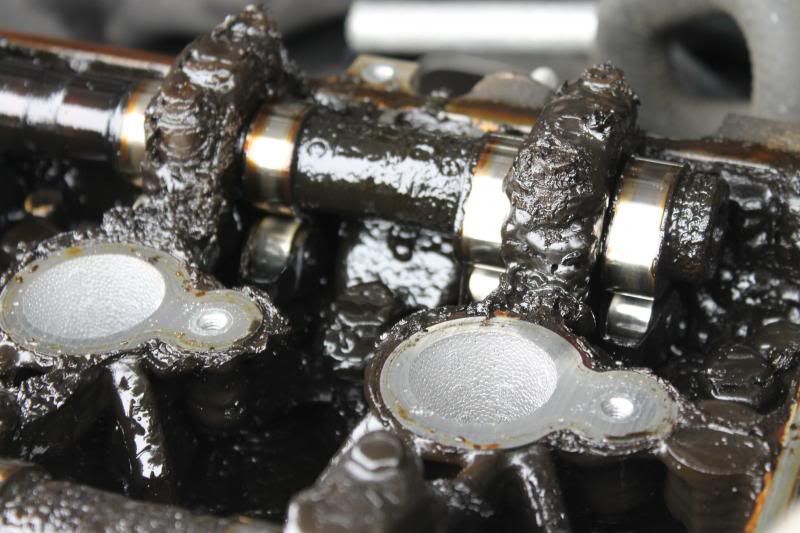

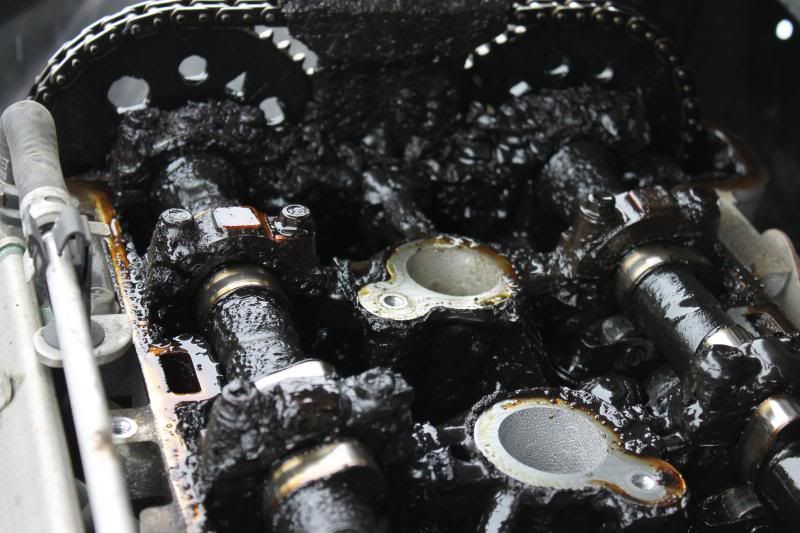

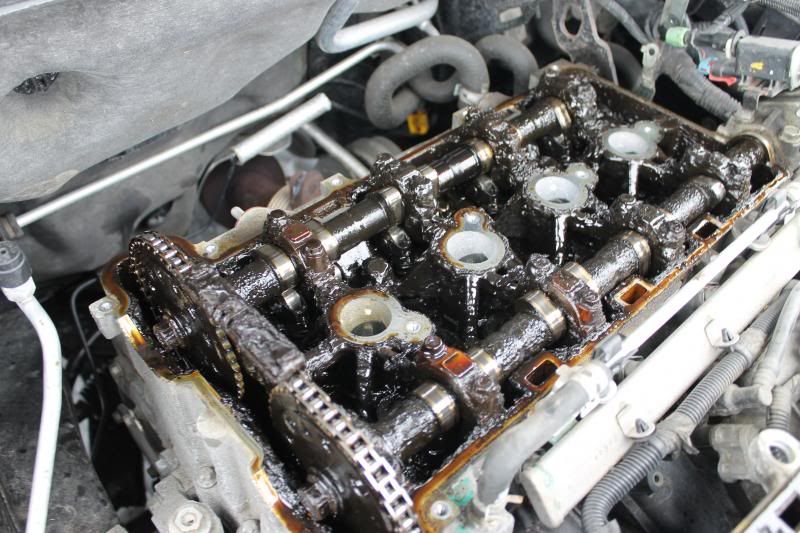

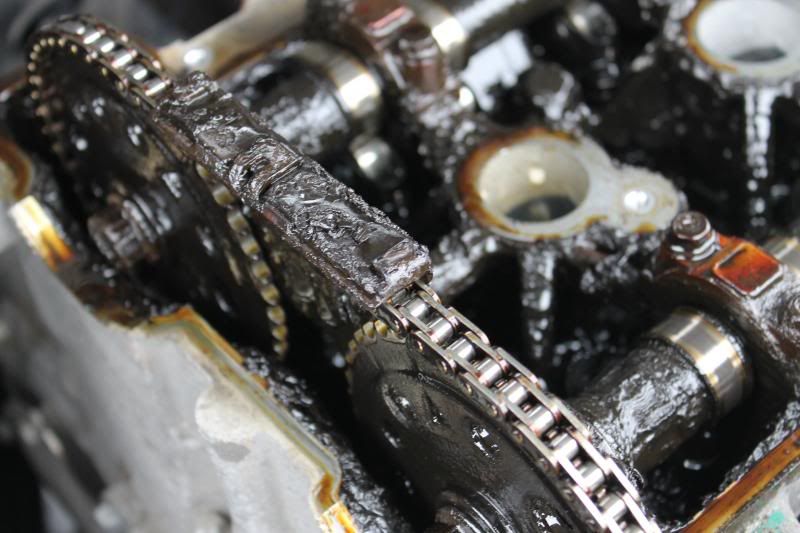

    Today the dealer pulled the valve cover and discovered this:











    At this point they stopped and called my girlfriend and basically told her that if the warranty company sees the sludge buildup they will not warranty the repair.

    She has had the car for roughly 20k miles and has had regular oil changes in that timeframe. Obviously this car was not well maintained prior to her ownership. And several of the mechanics have said that this buildup has been happening far before she took ownership.

    At this point I'm trying to figure out her options.

    I'm thinking she should try to trade it in and get into another vehicle. Immoral, IMO, but hey the place she bought it from screwed her.

    - or-

    Find a way to make the car last 2 more years.
    I'm worried that if I seafoam the crankcase, the sludge will break off and clog the oil passages, and seize her oil pump.

    Any suggestions? What would r3v do?
    Last edited by BobombETA; 03-19-2013, 06:09 PM.
    Instagram
    sigpic
    Current: 99 M3
    Past: 84 325e, 84 528e

    #2
    Carmax.
    1974.5 Jensen Healey : 2003 330i/5

    Comment


      #3
      HAHAHAHA a guy with an e46 M3 did that.

      Change you oil. you will need the whole engine dissembled and cleaned.
      Much wow
      I hate 4 doors

      Comment


        #4
        My wife's e46 did that due to always doing short trips so the oil never gets up to temp. We did oil changes twice as often as BMW recommended, and it did not matter.

        Traded car in this year.
        Originally posted by codyep3
        I hope to Christ you have looks going for you, because you sure as fuck don't have any intelligence.
        2001 silver/Blk 325 cabby. SOLD
        1988 Blk/Blk e30 factory wide body kit car SOLD
        1992 DS/BLK 325 m-tech II apperance pack cabby SOLD!
        2002 325xit Sil/blk. SOLD
        2012 328i xdrive touring. Wht/blk. SOLD
        2009 135 cabby. monacoblue/blk leather SOLD
        2007 Z4m coupe. Silver grey/black/ aluminum. 1of50
        2010 F650gs twin
        2016 M235i cabby. Mineral grey/Red leather

        Comment


          #5
          some guy did that and used like 5 or 6 treatments of seafoam and it worked. I'll try to dig up the thread, I think it was on chevy blazer
          1991 318is --- currently not road worthy
          1991 318i ---- 308K - retired

          Originally posted by RickSloan
          so if you didnt get it like that did you glue fuzzy oil to the entire thing?

          Comment


            #6
            A litre of ATF and running it up to temp helps also. Then drain and refill.
            Originally posted by codyep3
            I hope to Christ you have looks going for you, because you sure as fuck don't have any intelligence.
            2001 silver/Blk 325 cabby. SOLD
            1988 Blk/Blk e30 factory wide body kit car SOLD
            1992 DS/BLK 325 m-tech II apperance pack cabby SOLD!
            2002 325xit Sil/blk. SOLD
            2012 328i xdrive touring. Wht/blk. SOLD
            2009 135 cabby. monacoblue/blk leather SOLD
            2007 Z4m coupe. Silver grey/black/ aluminum. 1of50
            2010 F650gs twin
            2016 M235i cabby. Mineral grey/Red leather

            Comment


              #7
              Originally posted by Todd Black 88 View Post
              A litre of ATF after draining a liter of oil and running it up to temp helps also. Then drain and refill.
              Originally posted by kronus
              would be in depending on tip slant and tube size

              Comment


                #8
                Originally posted by slammin.e28guy View Post
                Carmax.
                I was thinking the classifieds section of r3vlimited.com ;)

                Originally posted by Cabriolet View Post
                HAHAHAHA a guy with an e46 M3 did that.

                Change you oil. you will need the whole engine dissembled and cleaned.
                That's basically what the GM dealer said. To me the car isn't worth enough to warrant that kind of work... We'll see...

                Originally posted by Todd Black 88 View Post
                My wife's e46 did that due to always doing short trips so the oil never gets up to temp. We did oil changes twice as often as BMW recommended, and it did not matter.

                Traded car in this year.
                She mainly drives less than 5 miles at a rip, but she hates the cold so she always lets the car idle to temperature.

                Originally posted by jrobie79 View Post
                some guy did that and used like 5 or 6 treatments of seafoam and it worked. I'll try to dig up the thread, I think it was on chevy blazer
                I have had good experiences with Seafoam in the past so that was my first thought.

                Originally posted by Todd Black 88 View Post
                A litre of ATF and running it up to temp helps also. Then drain and refill.
                I'll have to look into this one. Never heard of it.
                Instagram
                sigpic
                Current: 99 M3
                Past: 84 325e, 84 528e

                Comment


                  #9
                  Originally posted by slammin.e28guy View Post
                  Carmax.
                  Yep. Trade that sucker in.
                  Haven't you ever seen Russian Nesting Dolls? They work like that.

                  1987 325e / 2008 135i

                  Comment


                    #10
                    Most of this can be dealt with. Add ATF or an engine flush compound to the oil. Then drive the car for a bit, maybe 100mi at first, change the oil/filter and repeat. Driving the car means sustained highway speed trips or 30min or more each. I'd take the precaution of temporarily installing an oil pressure gauge to alert if the filter starts clogging. After most of the sludge is gone, the drive cycles can be longer (but still highway speed). That much sludge will take a while to clean up and you will use a bunch of filters & oil. I cleaned up an engine about as bad a few years back and used about 20 filters (and the corresponding oil).

                    Once you get the engine clean cut the "book" oil/filter changes in half (or less) unless the car sees at least two sustained highway trips of 30min or more each week.
                    The car makes it possible, but the driver makes it happen.
                    Jim Levie, Huntsville, AL

                    Comment


                      #11
                      a quart of marvel mystery oil added to every oil change at 1000 mile intervals also will remove that sludge.
                      sigpic

                      Comment


                        #12
                        I wouldnt f*#k with it,flip it bro quick like you will thank me later.;) Before you have a major engine failure.
                        Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.

                        garage queen 91 bmw 325is / 1972 Chevy El Camino 355 sbc 450hp

                        Comment


                          #13
                          Pennzoil.
                          Current Collection: 1990 325is // 1987 325i Vert // 2003 525i 5spd // 1985 380SL // 1992 Ranger 5spd // 2005 Avalanche // 2024 Honda Grom SP // 2024 Yamaha XSR700 // 2024 Jeep Gladiator Rubicon

                          Comment


                            #14
                            ATF was produced from a genie's butthole. That stuff is magic and will fix anything that is mechanical.
                            Originally posted by Wh33lhop
                            This is r3v. Check your vaginal sand at the door.

                            Comment


                              #15
                              Originally posted by slaterd View Post
                              ATF was produced from a genie's butthole. That stuff is magic and will fix anything that is mechanical.
                              This sounds right.
                              Instagram
                              sigpic
                              Current: 99 M3
                              Past: 84 325e, 84 528e

                              Comment
