m20 solidworks model

[TehRaydarlover]

I found this solidworks model of an m20 a while ago and have been using it as a quick reference, I have yet to verify any of the dimensions. If any of you have solidworks you might find it interesting.

https://docs.google.com/file/d/0B83ZKVaQkukmdWhUUnNVbkVRVFU/edit

PS
This isn't my work and I don't claim it to be. It was a free download somewhere, can't remember where.

[glucklich21]

Time to fire up the 3D printer!

[Wh33lhop]

Time to fire up the 3D printer!

A 1:3 scale running M20 would make me so happy.

[Thizzelle]

cool

[Thizzelle]

says there is no block for me in the folder :(

[TehRaydarlover]

Yeah unfortunately it wasn't in there when I got it.

[plain325]

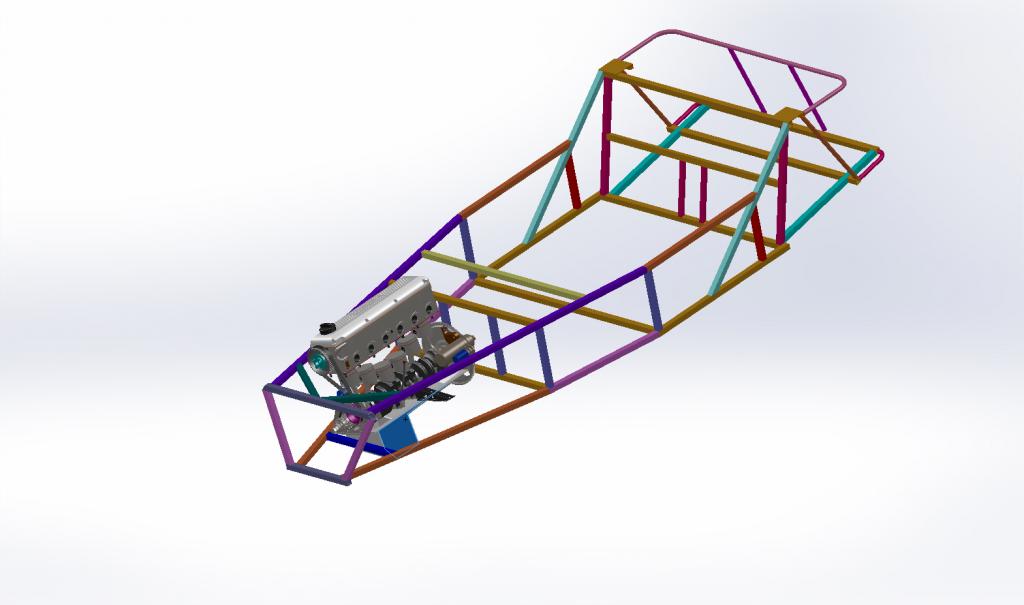

bout time to start that locost maybe(no block for me either)

[theevildoodlebob]

Vlad posted that up on Grabcad.com a few years ago. I just happened to come across it the other day while at work. The block should also be available in the complete assembly. I was able to open it up in its complete form and even hide the oil pan to see the internals were all still there. He also has a separate head but I am unsure if it is different from the one that is in the complete engine model. It comes in as a step model but still allows you to have it for mockup purposes. I did have issues doing the download all zip folder but it worked by just selecting the step final assembly file.

http://grabcad.com/library/bmw-m20-engine-1
