HI-BOOST's 2JZGTE E30

[HI-BOOST]

1986 BMW 325E (car was stock when purchased)
HP Goal: 600-700 Reliable

My goal is to make it a Street/Track car with a CLEAN swap and make it some what a sleeper.

Current Mod list:
-JDM 2jzgte
-R154 Trans
-1jzgte Bell Housing
-1jzgte flywheel w/ ARP studs
-HPF Feramic 700hp clutch kit
-r154 fork
-custom drive shaft
-Haltech e6k standalone
-FMIC
-Tial 50mm Bov
-Gauges -AEM Wideband, Boost, Oil
-6k HID's
-Fuel Cell
-255LPH in-tank and a 1000hp aeromotive external
-All new fuel lines
-FPR
-MBC
-Oil Catch Can
-Eibach lowering springs
-Engine cut off switch (by license plate)

Future Mods:
-Roll Cage
-Bucket Seats w/ harness
-Suspension
-Wheels
-Single T67 Billet
-Exhaust Mani
-HKS/Tial Wastegate
-Tune
-Lots of boost :biggrin

*When I purchased the car*







*Started to do work*




*Under the knife*





























Yet to do:
-Run and install all fuel lines and finish fuel system
-Install FMIC and do piping
-Install gauges and electronics
-finish the exhaust
-Install the radiator
-Street tune the car

Hope everyone like my project, feel free to ask questions.

ENJOY!

[HI-BOOST]

Update..
Picked up an Intake Mani and some Seats

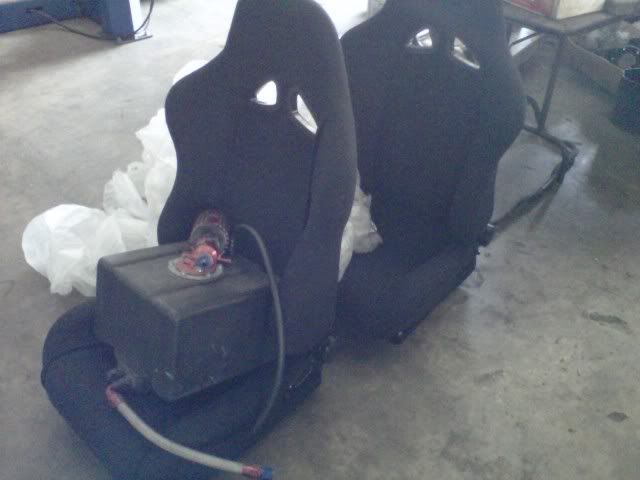

Seats

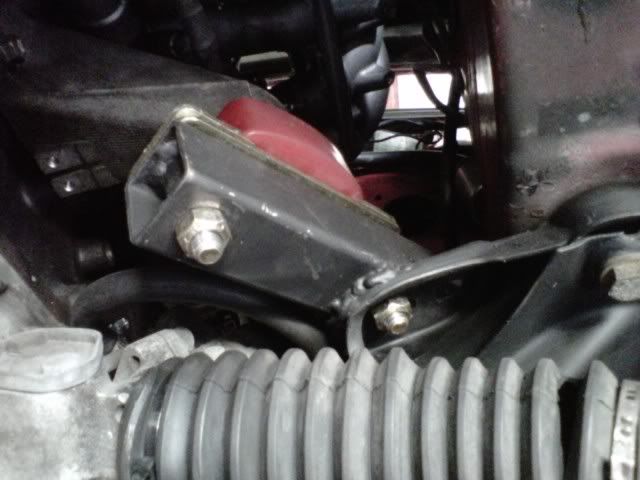

A few pics of the mounts. Alot of people questioning.

[510z]

i just went from 6 to midnight

[z31maniac]

I'd SERIOUSLY consider, nay, without question I'd reinforce the motor mount "ears" on the stock subframe.

Otherwise, I'm interested to see the progress.

[Nic01101011]

:?

[caliGreen]

dang. talk about DAMAGE! that is a wild beast

[M-technik-3]

:?

Scary idea for an engine mount with such high amount of Torque.

[SamE30e]

I would have welded the mounts to the frame rails. With the subframe being bolted to the mount. Or made new mounting arms.

Other then that. Wicked.

[Good & Tight]

Nice project, looks like it fits in pretty easy. And like everyone else has mentioned the mounts will fail. What does the other mount look like?

[HI-BOOST]

Hey thanks for the heads up guys, I havent been able to get a good shot at the other mount but is welded the same way with a bolt going across like this one.

So even though the bolt passed through the mount, that square metal (inside re enforced so it doesn't collapse) and the sub frame I may be looking at disaster?

I will reconsider those mounts then.

[ieatmango]

Hey thanks for the heads up guys, I havent been able to get a good shot at the other mount but is welded the same way with a bolt going across like this one.

So even though the bolt passed through the mount, that square metal (inside re enforced so it doesn't collapse) and the sub frame I may be looking at disaster?

I will reconsider those mounts then.

in short yes. you need something really solid with those hp/tq goals

[HI-BOOST]

in short yes. you need something really solid with those hp/tq goals

Yea, although i trust my mechanic I really think his top notch I will consult this with him and see if we can secure that motor on there better. Ill keep posting pictures as i go.

[DTM190]

Another 2jz E30, good to see. We have a few here in Aus and know of a few others around the globe.

Looking good but as everyone else has mentioned, those mounts wont last. Go overkil on the mounts IMO

[einstein57]

e30 subframes are pretty weak at the motor mounts and break under heavy use with the m20. AKG makes a ready to weld in reinforcement kit.

[xwill112x]

fucking SICK! i love 2jz's, be sure to post up some vids, as well as to some specs on the install!
