Stroker Ace - 318iS to 327iS.

[golde30]

brake lights, or running lights? i had a bad front turn signal socket that kept shorting out my running lights, maybe one of the rear bulb sockets is messed up?

[Hooffenstein HD]

Not much has really happened. Mostly just been driving it around across the state. Only been driving it for 6 months and already racked up around 30,000km.










Killed a fuel pump, so I swapped to a Walbro GSS340. Not sure if these things are supposed to be as loud as they are but it definitely runs better.

Also, got tired of the hunting idle and inconsistent performance. I had checked pretty much everything else, so concluded it must have been the AFM going bad. Decided to give the Miller Gen III MAF a shot. I actually wanted to go with a whodwho MS but the Black Friday sales made the MAF hard to resist. Chipped for 7,000RPM and installed with #173 ECU and 19lb #710 Mustang injectors. Seems to be running better. Can't really feel much of a performance gain but it definitely runs a lot more consistently. 3.5KG weight reduction over the old heavy, metal air box and AFM too.

[E30NJ]

If you don't mind me asking, what MPGs do you typically get?

[Hooffenstein HD]

If you don't mind me asking, what MPGs do you typically get?

I did a 550km road trip and worked out it was around 10 litres per 100km(23.5 US MPG) That was on open but twisty hills/valley roads doing 100-140km/h.



Now I've swapped to the MAF and 19lb injectors, my economy gauge sits on about 5litres per 100km when doing 60km/h around the city and about 7litres per 100km when doing 100km/h on open roads. I've yet to calculate its accuracy but that can't be correct. That's Corolla level economy.

I'd estimate something around 25 USmpg on open roads. Too hard to calculate metro driving as every body has vastly different traffic conditions.

[JinormusJ]

Stroker Ace - 318iS to 327iS.

When you swap to bigger injectors, the resistance load on the injectors drops (because where it normal runs at 80% duty cycle with 14#, it is now running at 40% 19#) and the ECU calculates that as increased fuel economy

Seattle Circuit sells an adjustable doodad that can compensate the resistance load on the injectors and simulate the OEM 14# duty cycle; AKA fix the issue. I think it was good anywhere up to 46#s but I've never used it yet (plan to when I chip it and switch to 19#s myself)

http://www.seattlecircuit.com/fuel_signal.htm

Either way; nice freaking work
This car looks awesome

[Hooffenstein HD]

I knew the gauge had to be wrong. Seemed way too good to be true.

It's getting there. Still need to sort out the passenger door, paint the rockers and get another fog delete.

Reiger style chin spoiler is on the cards too.

[Hooffenstein HD]

Last weekend a bushfire started in Sampson Flat and over the course of the week burnt out of control through 11,000 hectares of the Adelaide Hills. The CFS have done an amazing job of containing the fires and protecting homes/towns but a lot of the terrain is difficult to reach. Following a large storm and one of the largest downpours of rain the state has seen in the last 30 years(oddly enough, in the middle of summer) the fires are now contained and roads are beginning to open up following clean up of debris and fallen trees.



Decided to go for a drive and see what the damage looks like.

[Hooffenstein HD]

Also found this guy looking pretty parched and hungry. He was climbing trees looking for leaves but they were mostly burnt so when he climbed back down, we gave him some fresh looking leaves off one of the cut down trees. He seemed to appreciate the feed and the drink from our water bottle.

[lambo]

Nice pictures, man!

[Hooffenstein HD]

Gave it a few revs coming out of a fuel station last night, hit about 4,500RPM and the engine suddenly died.

Cranked for a while and it managed to start back up but now it runs rough, idling up and down from 1,000-2,000RPM. Disconnecting the MAF is not making any difference whatsoever but I'm not ready to say that's the issue. I'll be buying a multimeter and inline fuel pressure gauge after work today and run some diagnostics.

Any other known reasons for what would cause an engine to suddenly die like that? I've already replaced CPS right after the stall. Didn't make a difference.

Edit:

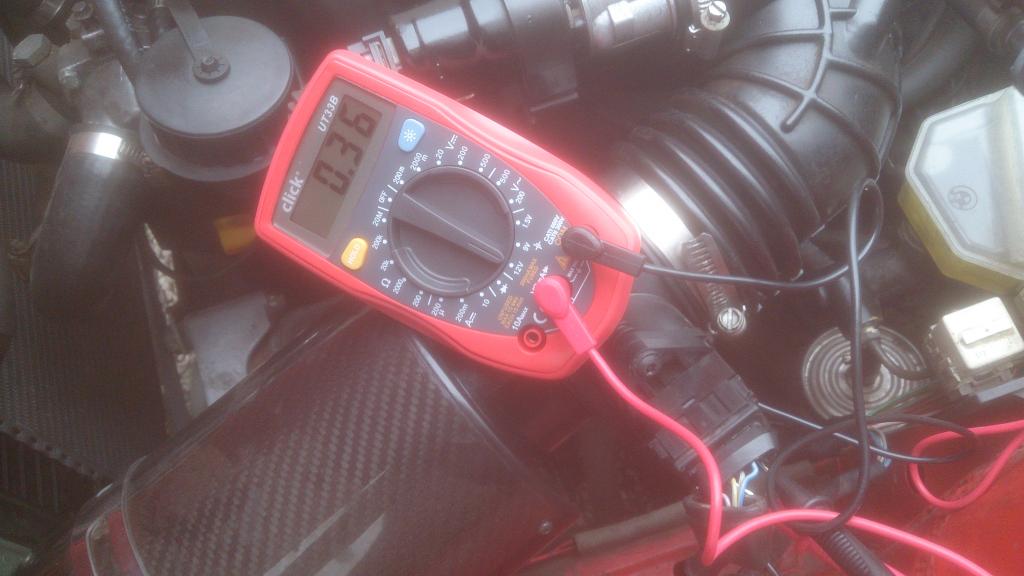

0.36 ignition on, 0.36 idling. I guess that confirms a dead MAF but the real question is why did it die after only 3 months?

[Hooffenstein HD]

At WOT, is the MAF/AFM ignored? If I give it a rev it will bog right down until it almost dies but if I crank the throttle wide open it revs up.

[lukeADE335i]

Yes - the MAF / AFM is ignored at WOT.

[lambo]

Yes - the MAF / AFM is ignored at WOT.

Thanks for confirming that. This might help explain my current sluggish/chugging acceleration under partial throttle that is cleared up with a WOT pull to redline.

[Massimo]

Any other known reasons for what would cause an engine to suddenly die like that?

To much power...

[Hooffenstein HD]

MAF has been sorted. Bought a new insert and swapped Miller's plug adapter into it. Had to cut out the thermistor/IAT from the old MAF and solder it into the new one. Can take/upload photos for anyone interested.

Drove an impromptu ~1600-1700KM over the weekend. Roughly 30 hours including the 8 hours we slept and all the time spent sight seeing with the lady. Worked out fuel economy to be around 9l/100km and a good deal of those km were spirited driving through the hills surrounding The Grampians. Only minor hiccup was fuel surge when almost airborne over a large bump with the fuel gauge deep in the red.

Maps Route is only a basic guide, doesn't count all the km zig zagging and driving around the areas.



Unfortunately only have potato phone pictures.
