    Restoring my E30 318is

    Hello, in this thread I will tell the story of how I purchased my '90 E30 318is and how I am restoring it.

    I am a Mechanical Engineer that live and work in Dubai, UAE, and I drive a Toyota GT86.
    In my home country, Lebanon, I wanted to have a car that have similar characteristics, and a project car that I can have fun working on restoring and bringing it back to stock condition during my vacation days (1 month / year).

    So I began searching online for one, and it seems in Lebanon nobody knows what a real 318is is. All kinds of 318s were claiming to be one, some with 4 doors, some with automatics, some with the wrong engine, ect... until I managed to get in contact with someone who sent me the car registration form showing the chassis number which I verified online, it was:






    Looking at the photos of the car, it was looking a beater neglected car:







    Since I was living abroad, I sent my father with a mechanic to inspect the car, and it showed no red flags, and there was no rust in the usual areas.
    It had no maintenance history, and the odometer has stopped working @ 160,000 km. The seats were leather from an E36.
    The market for E30 in Lebanon is quite prosperous, with clean examples in the range of 5000 $ price tag.

    So I got the car for 3400$, and repaired the exterior dangs and hits with black body filler. I also painted the hood as it was faded, as temporary solution until I can fully paint the car. The results are below:







    On to the maintenance issues, I ordered most of the parts from pelican, and I started addressing the known problem areas:

    1- Changed the chain tensioner with the upgraded one:



    I tried expanding it before installation, but it sprung open into 3 pieces and I could not get the snap ring back on. After many tries, I used grease and twisted it back into position.

    2- Inspected the lower oil pan for loose bolts and broken chain guides, it was clean.

    3- Replaced the fuel pump as it suddenly became dead one day while driving.

    4- Replaced the water pump. This was a nightmare, the pump outside housing broke while trying to remove it with the bolts method, and then when using a chisel and a hammer, it came out but half of it was broken inside the block. We continued to remove the broken pieces carefully until nothing was left inside.

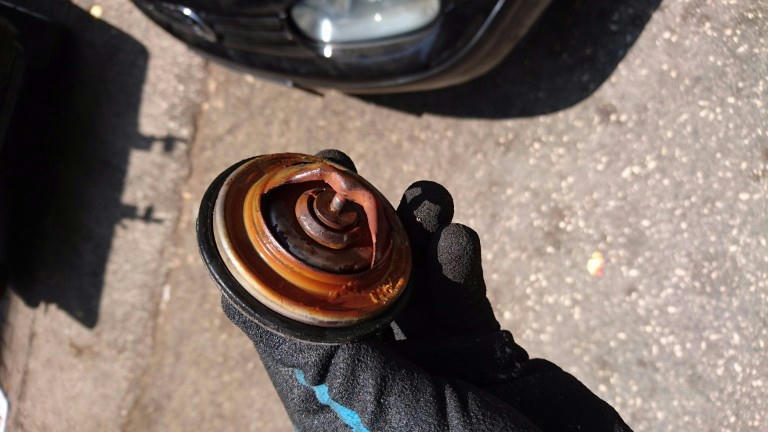

    5- The car was reaching normal operating temperature (at the half way mark) after 30 min while driving, so I knew the thermostat was broken, and it was:





    I replaced it with a new one @ 88 deg. C.

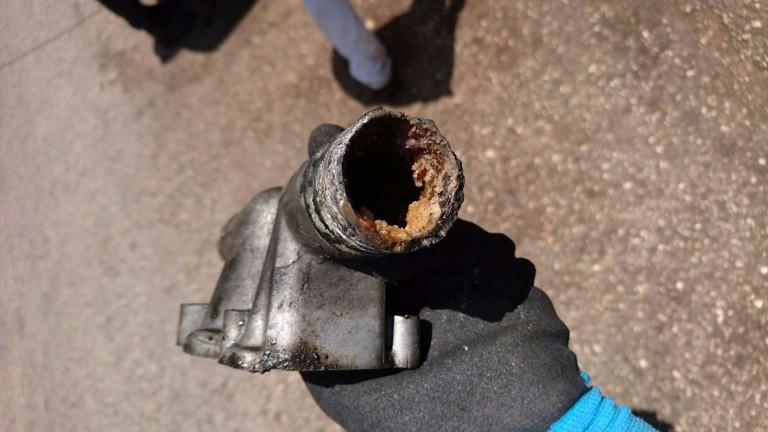

    Notice the build up on the thermostat housing, since Prestone radiator flush is not locally available, I flushed the coolant with distilled water, until I can get one online.

    While installing the thermostat, the metal housing broke, so I searched for a used one in the stores that sells used parts.
    The o-ring that came with the thermostat seemed a bit thicker than the old one, so there was always a water leak from the new housing, until we decided to use the old one back.

    6- Changed the spark plugs, fuel filter, rear disks (old ones were faded), air filter, radiator hoses, flushed the brake fluid and steering fluid, replaced the steering fluid reservoir.

    7- When changing the transmission oil, this was the quantity I found inside:



    From 1.2 liters required, this was what is inside only, I wonder how the car was moving.
    I filled with Liqui Moly 75W-90 GL4.

    8- I changed the engine oil to a synthetic 0W-40 grade oil, the one selling me the oil refused at the beginning to sell me as he said was for newer cars only, and not for old cars. lol

    9- Around 75% of the fuses in the fuse box were above the required rating, so I replaced all of them. The previous owner was so cheap, he used metal wire to fix a melted fuse:



    10- Fixed the mess of wires under the dash, replaced the airbag steering wheel with an M-Tech 1 wheel, and replaced the plastic shift knob with an original leather shifter:



    11- The car was idling rough, so I cleaned the ICV, and when you go WOT, the car was choked, hesitating and turning off between gear changes.
    I used STP Compete Fuel System Cleaner, but it showed no improvement.

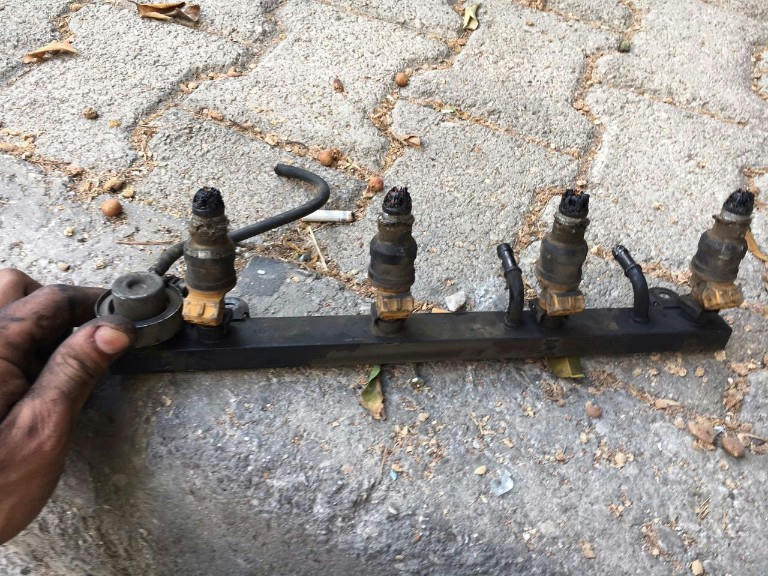

    I decided to inspect the injectors and clean them if necessary, and I found this:

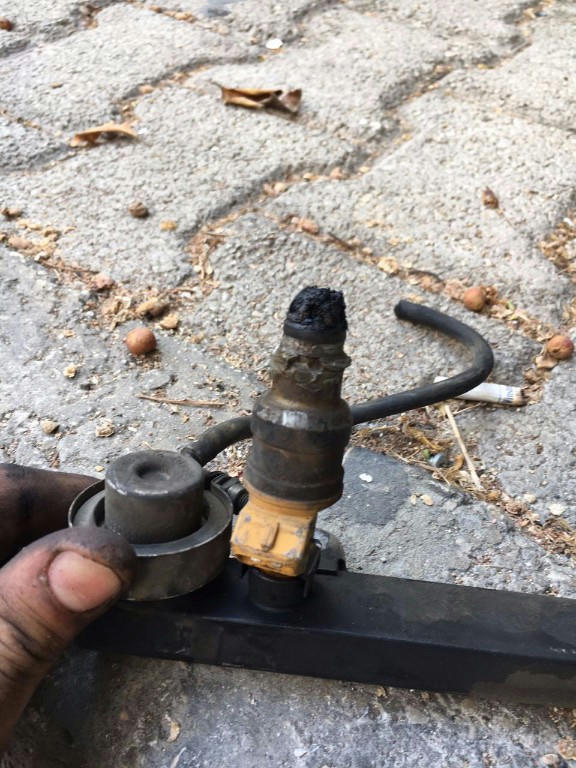

    Silicon was used to press the injectors in place :/
    Again I wonder how the car was running.
    I replaced all the o-rings with new ones and cleaned the injectors in a special shop.

    12- I noticed that in traffic, the temp. gauge reached the 3/4 mark, and the aux. fan did not kick in, when I looked at the radiator, the temp. gauge switch was missing !
    Also notice how the fan shroud is smaller than the stock one and not covering the complete fan:



    13- Replaced the front tie rods and rear shock mounts with E46 ones and reinforcement plates, below picture of the old one:



    14- The shift linkage is completely shot, you can move the arm carrier by hand.
    I am planning to replace the bushings in the future and installing a Z3 1.9 shifter.

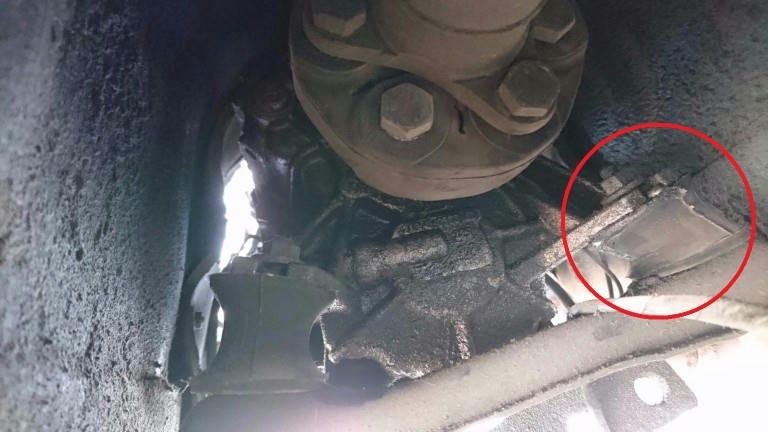

    15- When I lifted the car, I noticed the tag on the differential saying 3.45, so sometime in the life of the car, it was changed from the stock 4.10 that came with. I will look for a 4.10 and replace it when I find one.

    17- The tachometer and fuel econ. gauge are not working. I replaced the SI battery but no results. I will see if I can replace the dash, or make more troubleshooting.

    18- When you put the car in reverse, the drivetrain shakes and clunks, I examined the transmission mounts and noticed that one was crushed, so I replaced them, problem solved.
    In the future I will do the engine mounts too.




    In the future, I am planning to:
    - change the wheels to 15" OEM basket weaves.
    - change the engine mounts and O2 sensor.
    - refresh the shift linkage and install the Z3 short shifter.
    - fix the aux. fan and fan shroud.
    - flushing the cooling system.

    Thanks for reading.
