    Replacing Alternator Issues...

    I need my car back up and running ASAP, so I am now willing to pay anyone who wants to come help me finish this!

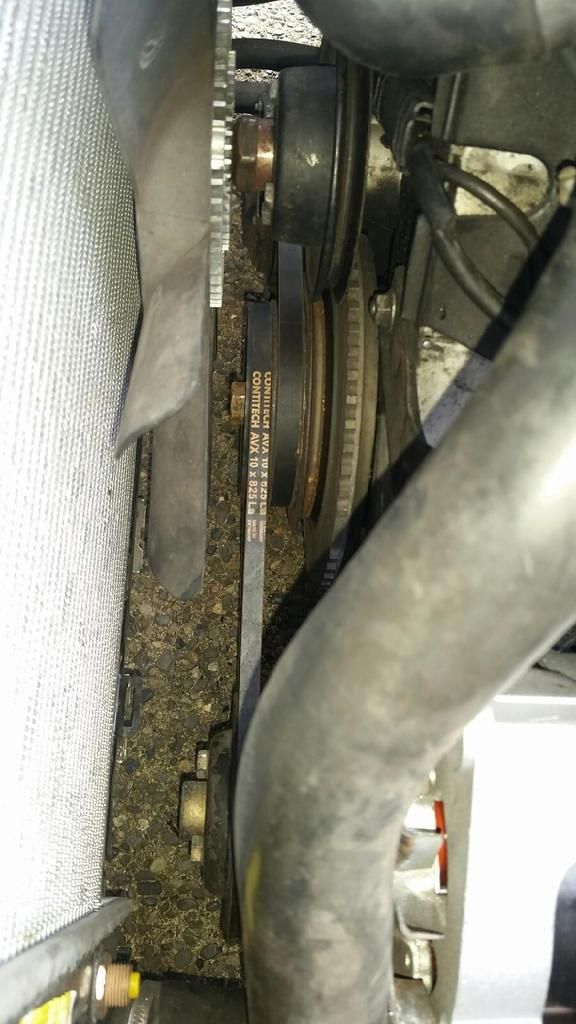

    Alright so I've got most the work done. The alternator is pretty much in, but I need to replace the belt. I cannot for the life of me figure out how to get this belt around the other 2. I've combed through every damn page I can find on e30 alternators and belts and still have yet to find what I need. I know I need to loosen the 2 belts so I can slip on the new alternator belt but nothing seems to be working... I've included a picture of my engine bay currently. It would be super awesome if someone could point out the tensioner or bolts I need to loosen in order to get the first 2 belts out of the way.

    Thanks for your help r3v!
    Last edited by Beastolizer; 05-25-2015, 01:13 PM.
    '91 Brilliantrot 318iS - Sold
    '95 e34 s50 Touring - P/O
    '87 Alpine White 325iS - Current
  • AndrewBird
    The Mad Scientist
    • Oct 2003
    • 11892

    #2
    Is the pulley on the new alternator a different size? If it is, you should be able to swap your old one back on.

    Comment

    • Beastolizer
      E30 Mastermind
      • Nov 2008
      • 1517

      #3
      No I'm just a doofus and forgot the belt goes around 3 pulleys, not 2
      '91 Brilliantrot 318iS - Sold
      '95 e34 s50 Touring - P/O
      '87 Alpine White 325iS - Current

      Comment

      • Beastolizer
        E30 Mastermind
        • Nov 2008
        • 1517

        #4
        Am I going to need to take these other belts off in order to install the new alternator belt? I'm not seeing how I can get the belt onto the third (bottom) pulley track
        '91 Brilliantrot 318iS - Sold
        '95 e34 s50 Touring - P/O
        '87 Alpine White 325iS - Current

        Comment

        • Beastolizer
          E30 Mastermind
          • Nov 2008
          • 1517

          #5
          Feeling so dumb right now...
          '91 Brilliantrot 318iS - Sold
          '95 e34 s50 Touring - P/O
          '87 Alpine White 325iS - Current

          Comment

          • Beastolizer
            E30 Mastermind
            • Nov 2008
            • 1517

            #6
            Someone please help this amateur wrencher, I am lost on this.
            '91 Brilliantrot 318iS - Sold
            '95 e34 s50 Touring - P/O
            '87 Alpine White 325iS - Current

            Comment

            • iansane
              E30 Fanatic
              • Oct 2011
              • 1341

              #7


              I just google imaged searched m20 belt diagram and if that's correct, you'd at least need to take off the a/c belt to get the alt belt on.
              84 325e - 91 325i - 92 318 touring - 91 Trans Am - 01 S4 avant - 03 S-type R - 96 F350 - 15 SS - 84 Biturbo - 91 Defender

              Comment

              • e30austin
                I waste 90% of my day here and all I got was this stupid title
                • Sep 2010
                • 15382

                #8
                How the hell did you get it off without removing those other belts?


                Comment

                • Beastolizer
                  E30 Mastermind
                  • Nov 2008
                  • 1517

                  #9
                  Originally posted by Austin!
                  How the hell did you get it off without removing those other belts?
                  Razor blade. For whatever reason, once I got the alternator loosened up there wasn't enough play for the belt to slip off. So I got under the car and used a flash light to inspect the teeth of the belt and saw it needed replacing anyway so I cut it right off.

                  Now I'm stalled and am fearing I'll need to remove the radiator and the fan just to get these other 2 belts off. Looks like I'll be out of commission the next few days haha
                  '91 Brilliantrot 318iS - Sold
                  '95 e34 s50 Touring - P/O
                  '87 Alpine White 325iS - Current

                  Comment

                  • Beastolizer
                    E30 Mastermind
                    • Nov 2008
                    • 1517

                    #10
                    Originally posted by iansane

                    I just google imaged searched m20 belt diagram and if that's correct, you'd at least need to take off the a/c belt to get the alt belt on.
                    Correct, but I cannot get either of these 2 belts off I've tried a ton of different things and nothing seems to loosen them up so I can slip them off..
                    '91 Brilliantrot 318iS - Sold
                    '95 e34 s50 Touring - P/O
                    '87 Alpine White 325iS - Current

                    Comment

                    • Savagefurai
                      E30 Modder
                      • Apr 2011
                      • 970

                      #11
                      Cut the rest of em and start anew.

                      All new belts cant be a bad option. How expensive could they be...
                      sigpic
                      Currently without an e30. Will probably die soon.

                      Comment

                      • Beastolizer
                        E30 Mastermind
                        • Nov 2008
                        • 1517

                        #12
                        Originally posted by Savagefurai
                        Cut the rest of em and start anew.

                        All new belts cant be a bad option. How expensive could they be...
                        The issue doesn't go away if I cut the 2 other belts off. I still have the issue of getting those 2 belts back on (which is theoretically the same problem I am already dealing with - getting those 2 belts off).
                        '91 Brilliantrot 318iS - Sold
                        '95 e34 s50 Touring - P/O
                        '87 Alpine White 325iS - Current

                        Comment

                        • BraveUlysses
                          No R3VLimiter
                          • Jun 2007
                          • 3781

                          #13
                          you have to pull off the other two belts (prob a good time to replace them) http://ethirty.site90.net/article/1/...20-timing-belt

                          this site has good pics so you can see how you'll need to loosen and re-tighten the belts.
