    Identify this wire

    I'm in the process of wiring up my s52 to a 525i harness. The harness has a set of wires (one plug) with the following colors: blue/white, blue/yellow, and brown/orange. Where does this plug go?

    Thanks

    #2
    Where's the plug on the harness?

    Comment


      #3
      More importantly...

      which harness is the plug on?
      sigpic
      Trying to make the world a better place, 6 TB at a time.
      http://abloriginalparts.com/

      Comment


        #4
        Pictures are great too.

        Comment


          #5
          I'm unsure of the year of the harness, but its on the e34 525i vanos engine harness. Sorry I can't get pictures right now. Is there an automatic transmission hook up (how is the auto harness different from the manual equivalent)?
          I've got all the other leads figured out (maf, throttle position, cam position, vanos, knock sensors, crank position, coolant temp, intake temp, o2 sensors).

          Comment


            #6
            Is it I the same bundle as anything else like the oxy or maf?
            1989 332IS -S-Fiddy Four-Some weight removed.
            5 lug E36 M3 Brakes Coilovers and LTW's and No ABS.

            Comment


              #7

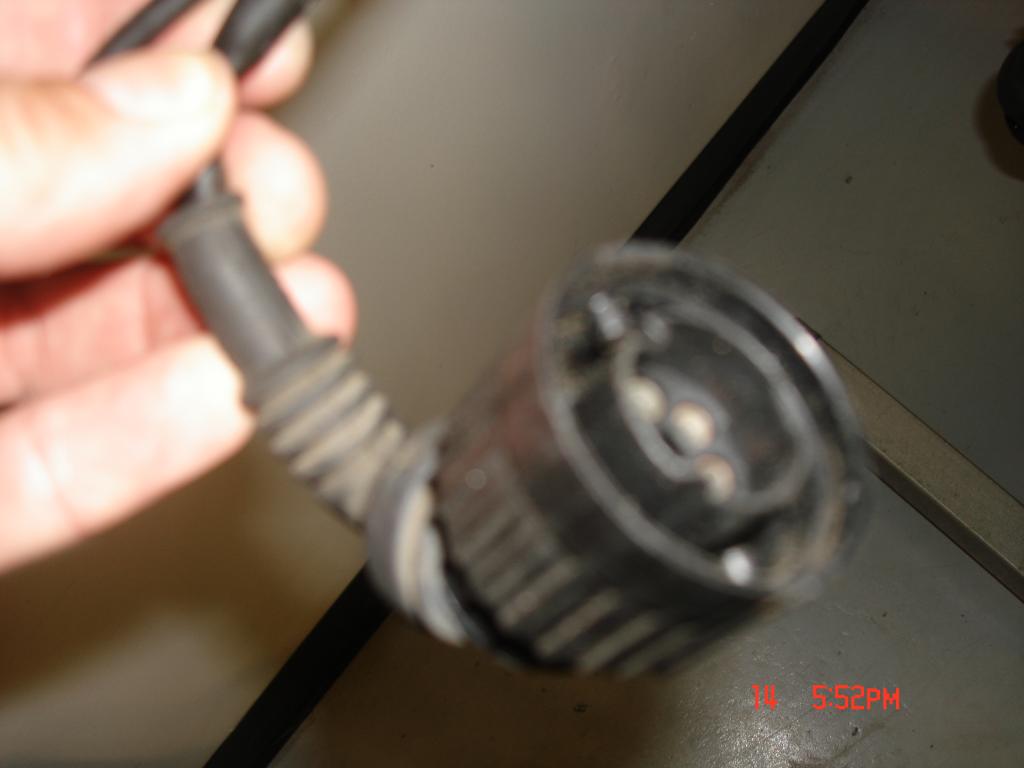

              does it look like this
              Attached Files
              NASA
              BMWCCA member
              PCA member 25yrs




              1991 318IS slick top
              1997 M3 sedan
              2001 325CI DD

              “whoever turns the wheel the least, wins"

              Comment


                #8
                Its not the throttle position sensor or the maf. It has the same sort of plug as the knock sensors, except it has three leads instead of two.

                Comment


                  #9

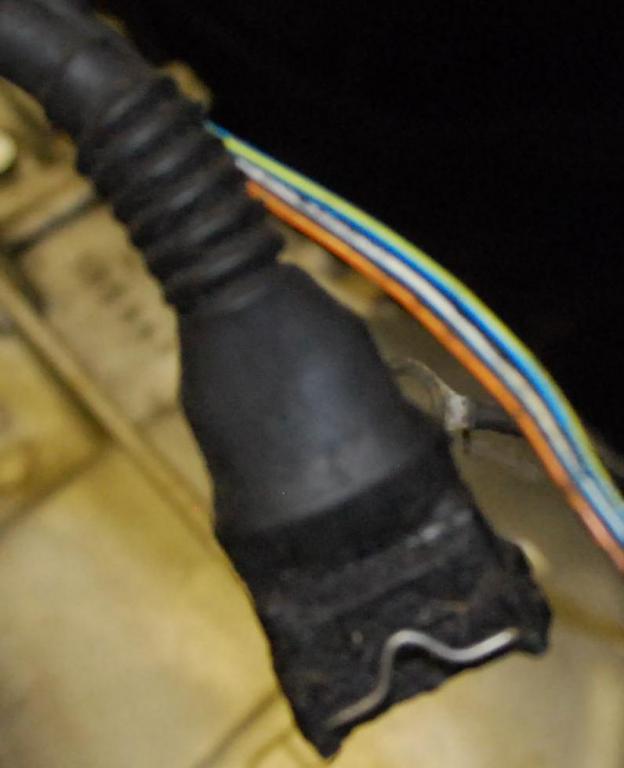

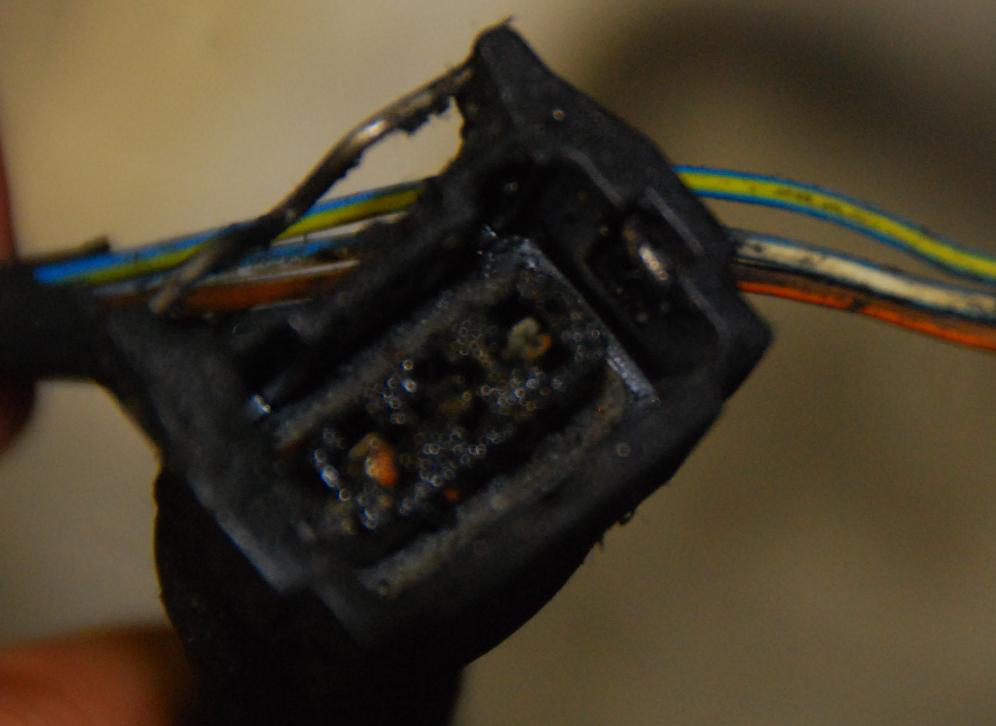

                  Here is a picture of the wire:

                  Your help is greatly appreciated!
                  Attached Files
                  Last edited by BM5W; 08-21-2009, 11:44 PM.

                  Comment


                    #10
                    Oil level sender possibly? You can look up the wire codes in the ETM if you know what year/model your harness is from.
                    Mtech1 v8 build thread - https://www.r3vlimited.com/board/sho...d.php?t=413205



                    OEM v8 manual chip or dme - https://www.r3vlimited.com/board/sho....php?p=4938827

                    Comment


                      #11
                      does it have a long lead? like it could conect to the oil level
                      NASA
                      BMWCCA member
                      PCA member 25yrs




                      1991 318IS slick top
                      1997 M3 sedan
                      2001 325CI DD

                      “whoever turns the wheel the least, wins"

                      Comment


                        #12
                        The only way to ever know FER SURE is to do a continuity test and see which pins on the ECU plug it connects with.
