m50 /s50 no fuel no spark

[e30m20TurbO7]

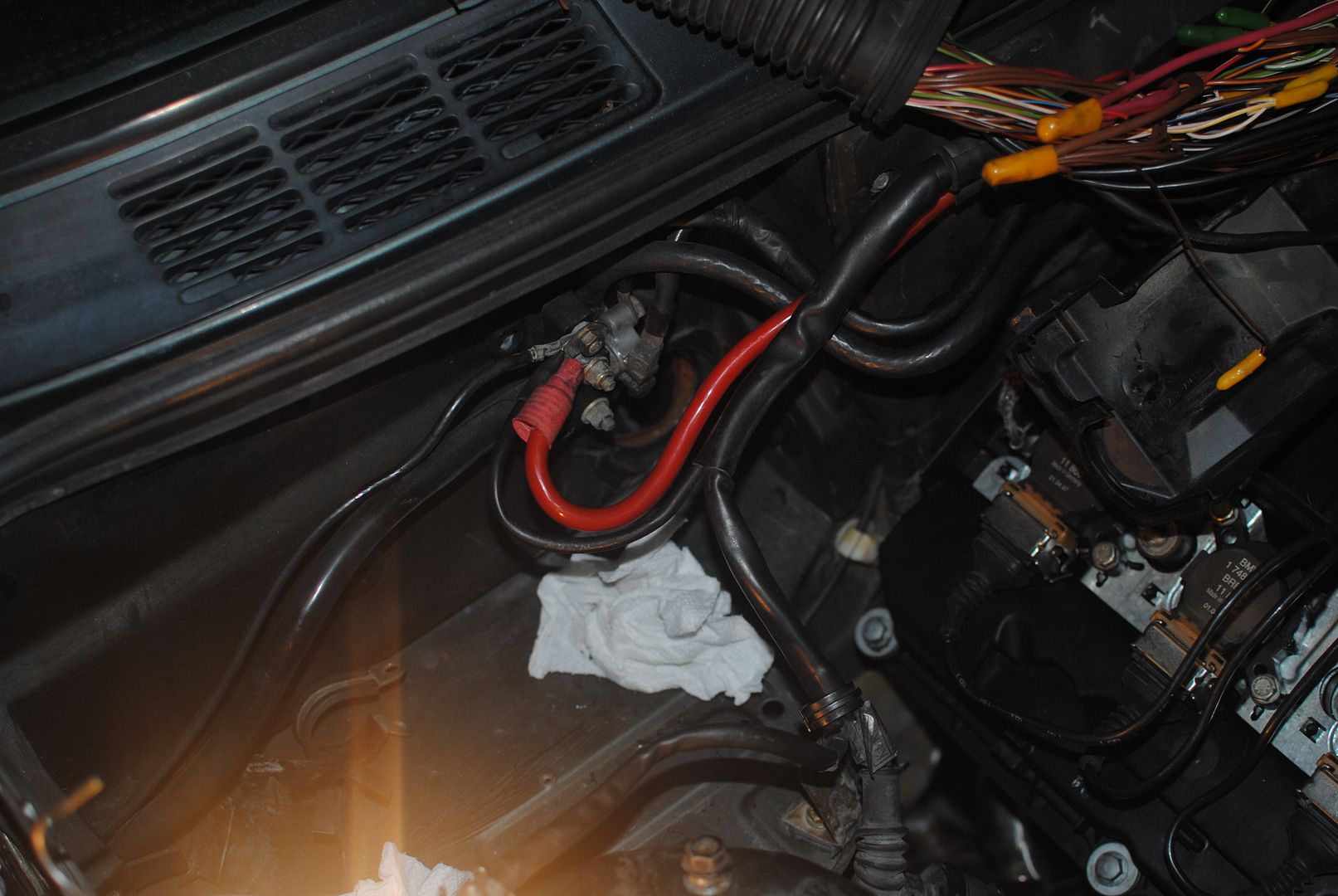

the large black starter wire running from the distribution lock to the starter that was originally used for m20 , do you keep that and run it to the starter ,
or can you get rid of it since there is a red large wire running through the harness that goes to the starter , on the starter side there is a large red wire and small red wire that i believe goes to the e36 fuse box??
any input
OKAY SO I GOT THE CAR TO CRANK, now i have no fuel and no spark ? any idea
i jumped the fuel pump so i know it works
need some input

[mpowerful]

I just used em both. Figured redundancy couldnt hurt

[e30m20TurbO7]

when i try to crank the starter makes a loud clicking noise ??? any one have any suggestions

[justin_l_]

Bad ground, stuck starter or flywheel

[e30m20TurbO7]

would a low battery cause the starter to just click then to properly engage

[justin_l_]

It could, have you checked voltage yet?

[e30m20TurbO7]

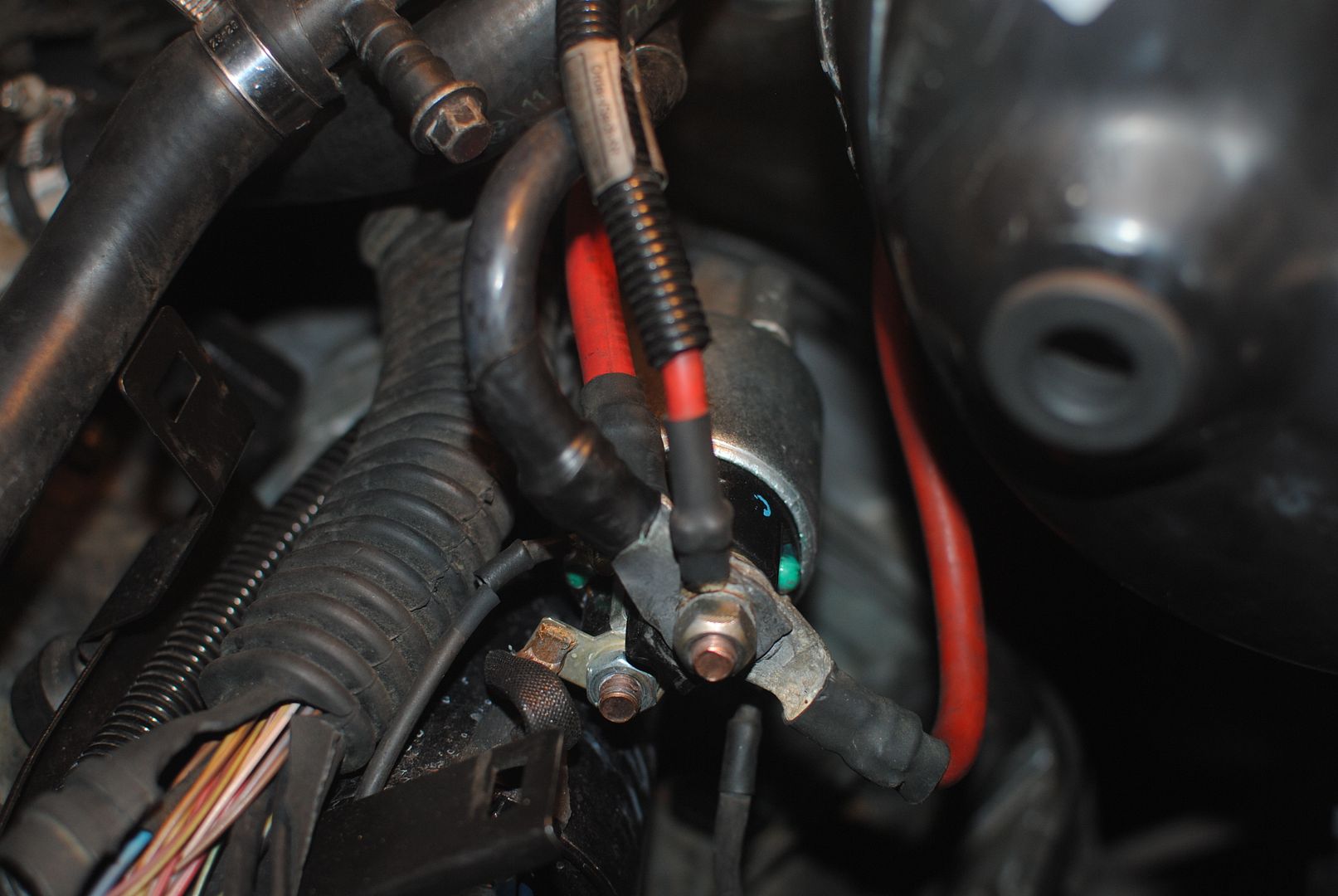

i have put ground straps on both motor mount arms,
do these look right

[e30m20TurbO7]

car cranks after a fresh battery, now i have no fuel or spark any idea?

[e30m20TurbO7]

icv and cps crossed

[scoops]

Might be a long shot, but when I did my S52 swap I had the same crank no start, turned out my ecu needed to be flashed, plugged it back in and fired right up.

[topiasp]

do you have power in engine wiring relays? there is 3 relays..
had problem with relays in my swap...
