Looking for m50/2 pinout from 86 325es body

[JeLani]

need , i have a 525 ecu but idk if that is necessary for what i need.

[JeLani]

Nobody?

[2mAn]

wedophones.com (i think thats the page) every swap is slightly different, but its only about 7 wires to figure out. this is part of the fun of the swap. the research

[JeLani]

thanks simon

[2mAn]

Does your car have the round c101 or the square?

this thread is gold

http://www.r3vlimited.com/board/showthread.php?t=163088&highlight=love+c101

this is also helpful

http://www.r3vlimited.com/board/showthread.php?t=154876

[JeLani]

Does your car have the round c101 or the square?

this thread is gold

http://www.r3vlimited.com/board/showthread.php?t=163088&highlight=love+c101

this is also helpful

http://www.r3vlimited.com/board/showthread.php?t=154876

Round c101 in my e30 ! Thanks for the links :)

[4DR_Lou]

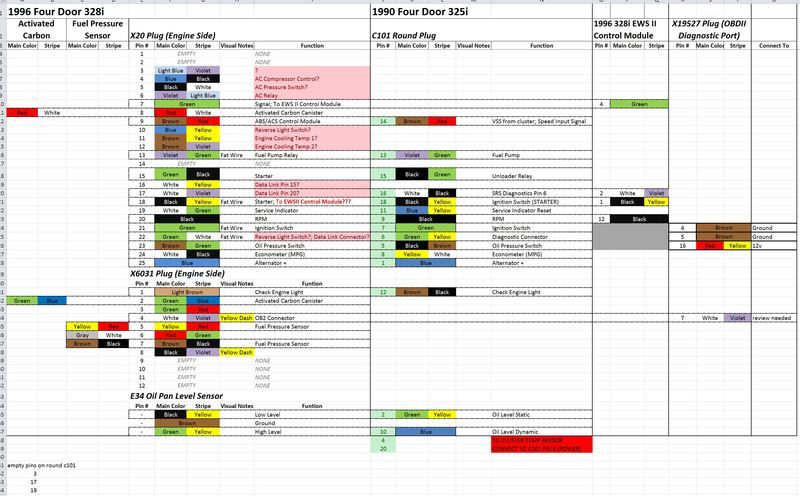

I'll share mine(M52 OBII with EWSII) for viewing purposes only. I will not take any responsibility of anyone's actions from following these wiring pins. I have done the research, but I still need to go over the connections for confirmation.

I will also be repining these onto a new c101 plug.

[JeLani]

I was actually going to repin on a new c101 too, thanks!!

[2mAn]

I have the specific crimper you need. It cost me $50, I can let you "rent" it from me

[JeLani]

I have the specific crimper you need. It cost me $50, I can let you "rent" it from me

I'll pm you
