318is => e36 m50 wiring

[asubimmer]

I know there are tons of threads out there about the wiring but I'm having a hard time finding anything on the 318is to m50. I have a 94' e36 vanos m50 and a 91' 318is car that its going in.

Also my engine was off an auto e36 and the harness has two plugs like the dme. One is for the dme but what is the other for?

[e304me]

ummm what happend to the turbo?

[asubimmer]

its FS if you are intersted but stay on topic cause I posted the thread for help not to discuss my car ;)

[matt]

Get ETMs for your car and your motor. Between them and the two bentley's it's pretty easy to figure out. Match wire colors and sizes, rather than pin locations in the C101/X20 connector.

[KangamangusDriver]

I did the same swap.

91' m42 using a 95' m50 from an auto

I can dig up the diagrams if you like.
I used a combo of akg's and addissimos diagrams

[1990m3]

sorry i can't help. I live 40 minutes from AKG, I just gave him my harness and he gave it back good to go!

[asubimmer]

I did the same swap.

91' m42 using a 95' m50 from an auto

I can dig up the diagrams if you like.
I used a combo of akg's and addissimos diagrams

that would be great if you could do that!

[asubimmer]

anyone?

[Mike B.]

I have the chassis side completed for my '91 318is. I'll post it on Monday after I get the euro 3.2 in the car.

[02stu]

The pm I sent you didn't work?

[02stu]

oh shit, the wiring harness info I sent you is if you cut the harness connection off the engine harness so its abit different. I'll send you the correct one on monday.

[asubimmer]

bump...

[asubimmer]

ttt

someone has to know :(

[FredK]

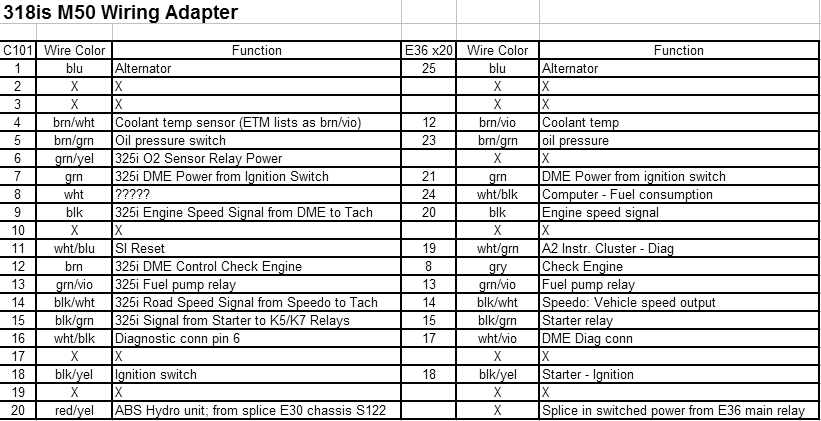

This diagram should be sufficient. I am wiring up my 318is tonight and this is the final config that I am going to use.

The wire colors were taken directly from the C101 and x20 connectors that I have. The E36 functions were derived from Mike B's diagram, which mirrored my own diagram at home (which I don't have handy right now). The E30 functions were derived from the ETM.

C101 Pin 8 (white) is the only wire I couldn't find the function to. The C101 wires labeled 325i are the ones that are the same colors as the late model 325i and were assumed to perform the same function. This was out of necessity, as the ETM for the 318is isn't that helpful, or at least the copy I had wasn't very helpful in that regard.

[So Live]

this dude did the same thing too. Id compare and see whats different. Not that Fred's is wrong its just nice to have a few soruces.

http://www.e30tech.com/forum/viewtopic.php?t=25243&highlight=m50
