Clarification on Temp vs. Coolant Sensor

[tjcm3]

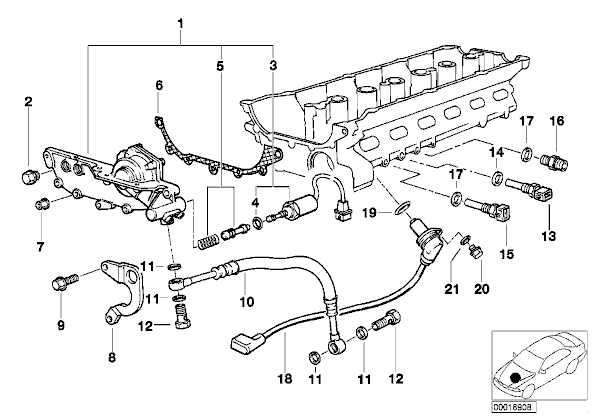

Sorry, searched but no luck. Which sensor is the DME temp sensor, the "Engine Coolant Temp Sensor" #13 or "Temperature Sensor" #15?

Is the naming scheme the same for the E30 sensors also? Thanks for any info....

[matt]

The DME one is blue. I think they are differently threaded also...

[Jason89i]

yes, they are different thread sizes. I THINK.....the dme temp sensor is small(m12x1.5) ....the temp gauge sender is large.(m14x1.5) but that is from memory, dont quote me.

cheers, jason

[PiercedE30]

DME sensor is 15, gauge would be 13.

[tjcm3]

As always, thanks.
I can see now that the naming is at least consistent, if not all that clear. "Coolant Temp Sensor" = DME (color-blue) and "Temperature Sensor" = Gauge (color-black) on the E30 M3 side also.
