    For those running the IX booster.

    What did you do about the resivor??
    can I cut the bracket off the back of the booster and move it back??
    The resivor is hitting my TB and causing issues with the vac lines.
  • e30this
    No R3VLimiter
    • Dec 2007
    • 3580

    #2
    no one knows?

    Comment

    • dude8383
      Forum Sponsor
      • Jan 2005
      • 10387

      #3
      I believe that you have to relocate it with 2002 brake lines or lines from a 5 series (don't know which model specifically)..
      IG: deniso_nsi Leave me feedback here

      Comment

      • MR 325
        Moderator
        • Oct 2003
        • 37825

        #4
        I have a remote unit from a 2002.
        BimmerHeads
        Classic BMW Specialists
        Santa Clarita, CA

        www.BimmerHeads.com

        Comment

        • e30this
          No R3VLimiter
          • Dec 2007
          • 3580

          #5
          Whats a remote unit??
          I found this last night...

          http://www.realoem.com/bmw/showparts...34&fg=25&hl=15

          I think I got a idea so we will see if ti works out.
          if not then Im out a brake booster and will just figure something else out.

          Comment

          • dude8383
            Forum Sponsor
            • Jan 2005
            • 10387

            #6
            Originally posted by e30this
            Whats a remote unit??
            I found this last night...

            http://www.realoem.com/bmw/showparts...34&fg=25&hl=15

            I think I got a idea so we will see if ti works out.
            if not then Im out a brake booster and will just figure something else out.
            Thats pretty much what you need :)
            IG: deniso_nsi Leave me feedback here

            Comment

            • e30this
              No R3VLimiter
              • Dec 2007
              • 3580

              #7
              schaweeeet. Thanks

              Comment

              • MR 325
                Moderator
                • Oct 2003
                • 37825

                #8


                BimmerHeads
                Classic BMW Specialists
                Santa Clarita, CA

                www.BimmerHeads.com

                Comment

                • e30this
                  No R3VLimiter
                  • Dec 2007
                  • 3580

                  #9
                  Where did you get it and what did it cost, part numbers??
                  info would be AMAZING!!!!!!

                  BTW how did the center console work out for you??

                  Comment

                  • e30this
                    No R3VLimiter
                    • Dec 2007
                    • 3580

                    #10
                    Found the info I need.
                    Thanks

                    Comment

                    • etxxz
                      R3VLimited
                      • Feb 2006
                      • 2085

                      #11
                      ^^ ... do away with the bracket.

                      mount the booster directly to the wall by drilling new holes in the firewall (coat with rostoleum to prevent rust)
                      measure twice, cut and weld the piece that goes to the brake pedal.

                      voila, resevoir fits right behind the intake boot. its what i did.
                      No more e30s for me.
                      88 black BMW OBDII 332is dedicated track [sold]
                      88 BMW OBDII bronzit 332is [RIP 03/08]
                      91 BMW 325i [sold]
                      86 Corolla 'Ae86' HB 20v trd [sold]
                      http://youtube.com/watch?v=pTj7Hn9v5Rs

                      Comment

                      • dude8383
                        Forum Sponsor
                        • Jan 2005
                        • 10387

                        #12

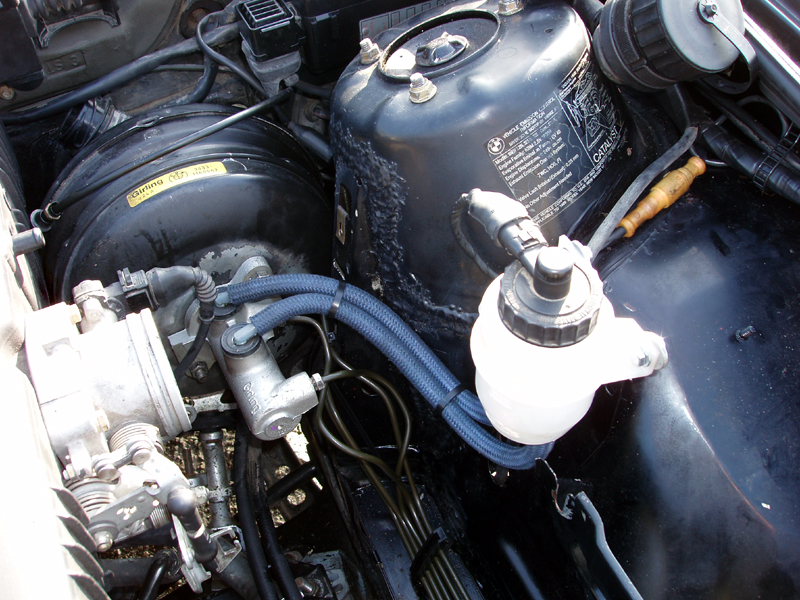

                        Originally posted by MR 325


                        Wow, thank you for posting that pic...

                        Is that a 2002 brake reservoir as well?
                        IG: deniso_nsi Leave me feedback here

                        Comment

                        • MR 325
                          Moderator
                          • Oct 2003
                          • 37825

                          #13
                          Yes. Actually a fairly cheap part brand new too.
                          BimmerHeads
                          Classic BMW Specialists
                          Santa Clarita, CA

                          www.BimmerHeads.com

                          Comment

                          • Hartge_H27
                            E30 Mastermind
                            • Jun 2006
                            • 1699

                            #14
                            what mc r u running

                            Comment

                            • etxxz
                              R3VLimited
                              • Feb 2006
                              • 2085

                              #15
                              that's pretty friking good. i was using some 5er lines that didn't fit very well so i managed to not have to remote mount, but that is pretty simple and cheal too.
                              No more e30s for me.
                              88 black BMW OBDII 332is dedicated track [sold]
                              88 BMW OBDII bronzit 332is [RIP 03/08]
                              91 BMW 325i [sold]
                              86 Corolla 'Ae86' HB 20v trd [sold]
                              http://youtube.com/watch?v=pTj7Hn9v5Rs
