Starting my M54B30 swap...

[Elysian]

It's been 4 years since I've posted in this thread

I just towed my E30 from Dallas down to Austin where I live now. I brought an M30B34 and my M54 along with me.

The M54 was full of water, kids kept coming by and removing the tarp that was over it... I'm still wanting to use it though, so I'll be taking it apart and seeing what needs work. The camshafts definitely need replacing, and I'm guessing the crank won't be in fantastic shape. Wouldn't be surprised if a full rebuild is in order. I like that sort of thing though, so if I can do it I will. The engine was tip top when I pulled it, would be a shame to waste it.

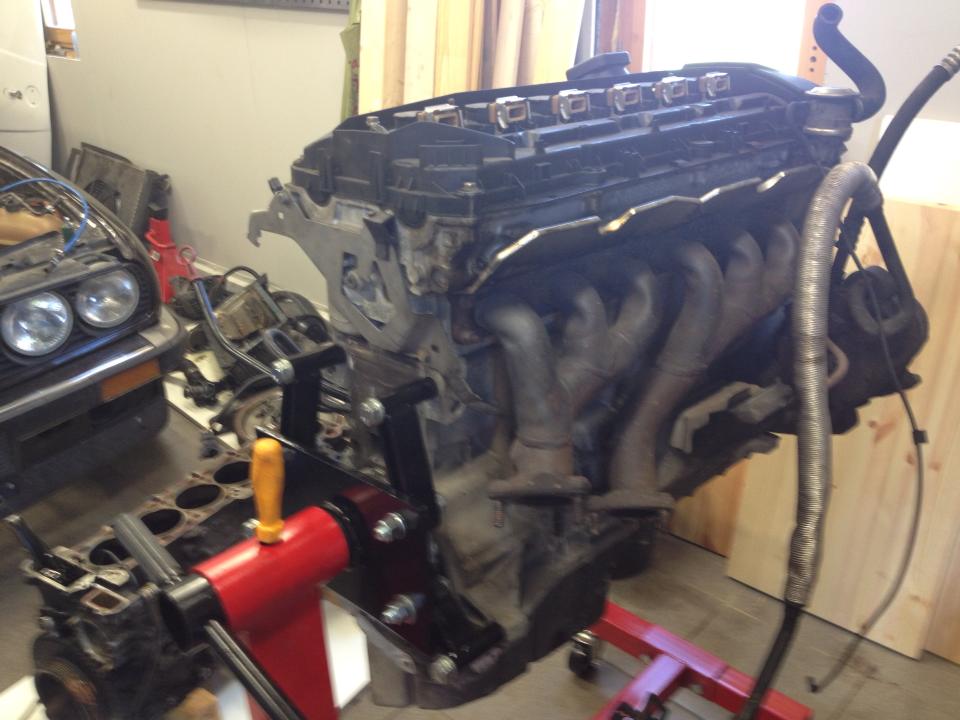

Anyways, I'm finally back on this. Just thought I'd bump this up. Pic:

[jjt]

Went another way and did my car with MegaSquirt3, works well now, 212hp/301nm.

One thing, that I learned later was, that the Z3 2.8/3.0 were sold with Euro 2 (?) spec, hence no secondary lambdas and different exhaust manifold. Also the easiest way to skip the secondary lambdas is to reflash the ecu with Z3 software.

Hope this helps someone.

[jjt]

That's it then, in some EU countries cars did not require emissions regulations until 2001 so that's what I was reffering too. I did not know TU en England came with E36 exhaust manifolds, that's nice to see.

The exhaust manifolds are a bit of a mystery for me, tried to verify, that the E46 indeed has had manifolds without cats but only found this from realoem: http://realoem.com/bmw/partgrp.do?mo...18&hg=11&fg=50

Even if you click the last diagram, where the manifold looks like the one, I have, it says "No parts found matching your car."

Anyone from England who can verify this?

Also the engine is from a 10/1999 car and it has the exhaust air pump. (or the valve atleast). My Finland sold 10/2001 330ci did NOT have the air pump. Interesting...

[DesertBMW]

What does the "euro tune" mean? The engine is from a car, that was sold in Britain originally. Also the exhaust manifolds look different than in my old 330ci e46, see the pic. Maybe the car did not have secondary lambdas? I have a friend who says, he can disable the EWS from the ECU, hopefully so :) Otherwise I'll have to start thinking of other possible engine management systems.

That's it then, in some EU countries cars did not require emissions regulations until 2001 so that's what I was reffering too. I did not know TU en England came with E36 exhaust manifolds, that's nice to see.

[jjt]

Z3 or 5 series harness will work and be long enough for E30 application. There is a euro tune for MS42, deletes most of the emission stuff. You need body module with ews3.3 if you will keep the ews. I am working on more detailed instructions, will post it in few days.

What does the "euro tune" mean? The engine is from a car, that was sold in Britain originally. Also the exhaust manifolds look different than in my old 330ci e46, see the pic. Maybe the car did not have secondary lambdas? I have a friend who says, he can disable the EWS from the ECU, hopefully so :) Otherwise I'll have to start thinking of other possible engine management systems.

[DesertBMW]

One more question, what did you do with the secondary lambda sensors? My car does not need cats (car is used for racing only), so the secondary lambda sensors need to be disabled somehow.

Z3 or 5 series harness will work and be long enough for E30 application. There is a euro tune for MS42, deletes most of the emission stuff. You need body module with ews3.3 if you will keep the ews. I am working on more detailed instructions, will post it in few days.



ps: E30 realy moves fast with M54B30, its a joy to drive it

[jjt]

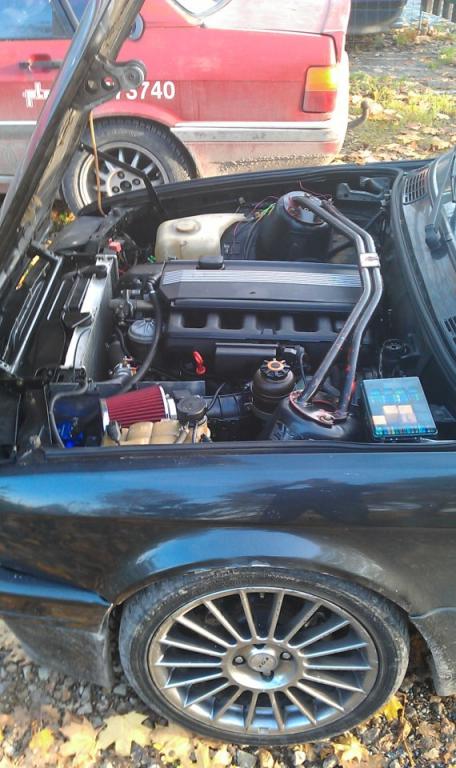

Got engine running, with OEM MS42 Siemens.
Not too much problems, to get it done, only if u`re having - EWS, ECU, Engine from same car.

One more question, what did you do with the secondary lambda sensors? My car does not need cats (car is used for racing only), so the secondary lambda sensors need to be disabled somehow.

[jjt]

Get a Z3 main engine harness.

Thanks! One worry less :)

[Andrew325is]

Get a Z3 main engine harness.

[jjt]

Got engine running, with OEM MS42 Siemens.
Not too much problems, to get it done, only if u`re having - EWS, ECU, Engine from same car.

How did you place the ECU? The cable harness (at least on my version of the m52b28tu from e46) is painfully short for any reasonable placing of the ECU. I was planning an installation inside the car, but it seems that the cable harness is so short, that I need to find place for the ECU under the hood.

[jdirty]

When you were pulling parts from your e46, why did you stick with the g260 instead of using the stock e46 transmission (assuming it was a standard) ?

[dableds]

Got engine running, with OEM MS42 Siemens.
Not too much problems, to get it done, only if u`re having - EWS, ECU, Engine from same car.

[Elysian]

Ordered my wideband finally, however I'll be Megasquirting my daily first. It's a 1990 Nissan Pathfinder 4x4 and with the only mod I've done, boring the MAF .250" over, it gained a bunch of power but lost a bunch of fuel economy. I want to have both, it's my daily, so I'll MS3X it before I dig into my E30 more.

edit: bought my copy of TunerStudio and MegaLogViewer yesterday. Have everything I need to MS the Pathfinder coming in this week as well.

[Elysian]

I haven't done any wiring E30 side yet.

[dableds]

I'm not using any sort of stock ECU so I wouldn't really be able to help you much. You can program out EWS though if you want, that's what I would do if I were using the stock ECU.

not stock ECU - thats fine, but what about connection to e30 C101 pin? starter, alternator, ignition, wires?
Or you made all wiring - custom?
