    CV Boot replacment

    What all does it take, who has done it or had it done and how much did it cost?

    Conditions:
    -CV Boot has started cracking
    -I have the part(CV Boot)
    -I went to get my Trans and Tcase fluid changed and they noticed it and said that to replace the boot you have to replace the axel?

    Input please.

    '88 325iX -Totaled
    '97 M3 - Sold
    '85 euro e30 Pete McHenry 2.8L m20 Stroker - Parting out
    '89 325is - Sold
    '95 540i 6spd
    '87 325is M Technic I s50

    #2
    doesnt sound fun

    but i would like to see some pics

    alot of them
    sigpic

    Originally Said by Bob Marley
    "BMW make pure trouble!"

    Comment


      #3
      you don't have to replace the axle to replace the boot... lol

      you do have to remove it though. that requires removing the strut housings, pressing the axle out of the hub (a FWD hub puller makes this part easy), getting the CV joint off the shaft (easily the hardest part as a DIY), clean, grease and put it all back together.
      Build thread

      Bimmerlabs

      Comment


        #4
        Yea thats why I was like what the fuck. But yea sounds like a bitch. Day project or take it somewhere?(Which I hate doing)

        '88 325iX -Totaled
        '97 M3 - Sold
        '85 euro e30 Pete McHenry 2.8L m20 Stroker - Parting out
        '89 325is - Sold
        '95 540i 6spd
        '87 325is M Technic I s50

        Comment


          #5
          get the tools you need together - circlip pliers, 4lb metal hammer, bench vise, hub puller, 30mm impact socket & breaker bar (with a 3 foot steel "cheater pipe"), and the rest of the regular tools required to remove the struts. You could accomplish it during the day unless you find you're missing something.

          even easier, if you can get the axle out of the car, take it to an axle shop. There's one here in town I used to take mine too, they'd pop off the CV joint from the shaft for a case of beer no problem.
          Build thread

          Bimmerlabs

          Comment


            #6
            fuck it just take it to motorsport connections

            Comment


              #7
              Okay guys, spent the last 2 hours trying to get one joint apart. Im spreading the circlip but I doubt it's getting out of the groove all the way round the bottom. Any tips before I lose my mind?

              Comment


                #8
                Use a vice to hold the shaft while you tap on the joint.
                Build thread

                Bimmerlabs

                Comment


                  #9
                  I am using a vice. Its not interested in moving.

                  Even went to the store to see if "female" circlip pliers existed, no luck though.
                  Last edited by A Sucked Orange; 12-14-2011, 10:34 PM.

                  Comment


                    #10
                    Take the shaft to a shop and have them do it. It's pretty cheap and saves you alot of messy cleaning
                    Originally posted by blunttech
                    r3v does not fuck around. First you get banned, then they shoot you

                    Comment


                      #11
                      they don't really do that around here. they'll pop it loose for free, but they won't clean it. it's not really worth paying for, once you actually get it off the shaft it's all gravy.

                      another option is to try to pull the clip out entirely. that worked for me once. also make sure you're using a heavy hammer, and hitting as straight as possible. I didn't even use a circlip plier last time, I used a flathead to spread it apart.
                      Build thread

                      Bimmerlabs

                      Comment


                        #12
                        Originally posted by nando View Post
                        Use a vice to hold the shaft while you tap on the joint.

                        bingo!!! thats how i did it. PITA, but i was able to hold it down on a vice, and tap out the joint when releasing the clip. Had help though. IIRC, i had a friend spread open the clip as i used a big flathead and tapped the assembly out and it broke loose. The clip came off. btw i didn't have circlip pliers. I was able to wedge flatheads/pliers in there and spread em (i forgot exactly the method). Should be easier w circlip pliers i'd imagine
                        www.instagram.com/snwmble
                        #snwmble

                        Current:
                        '05 BMW M3 - Silver Grey/Imola Red
                        '90 BMW 325iX - Sterling Silver/Houndstooth sport(5-speed converted)
                        '15 Mini Countryman - Blazing Red/Carbon Black

                        Past:
                        '01 Audi Allroad - Light Silver/Platinum Saber Black
                        '88 BMW 325iX - Diamond Schwarz/Silver sport *Sold*
                        '01.5 1.8TQ - Brilliant Black/Nogaro Alcantara ...after 8.5yrs, *Sold* =(
                        '90 BMW 325i - Schwarz/Tan sport *Sold*
                        '89 BMW 325ix - Diamond Schwarz/Black sport *Sold*

                        Comment


                          #13

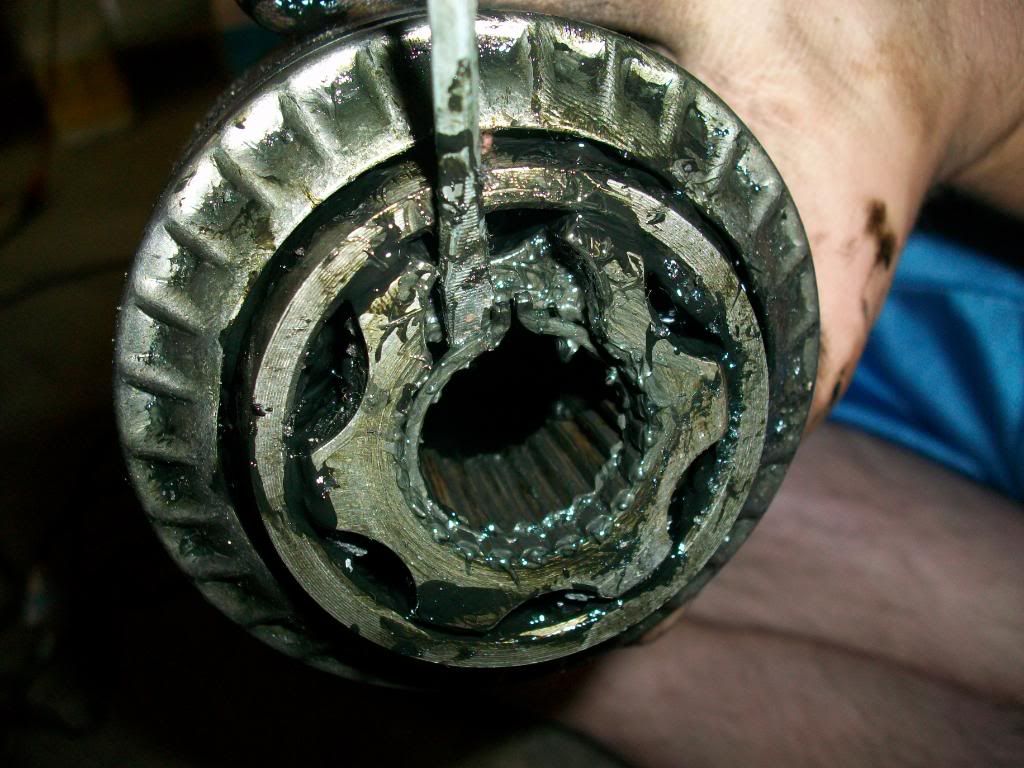

                          Were you guys tapping on the 6 point star shaped piece in this photo?

                          Comment


                            #14
                            yes
