Project: Lela! (she loves it on all fours :) )

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    #76

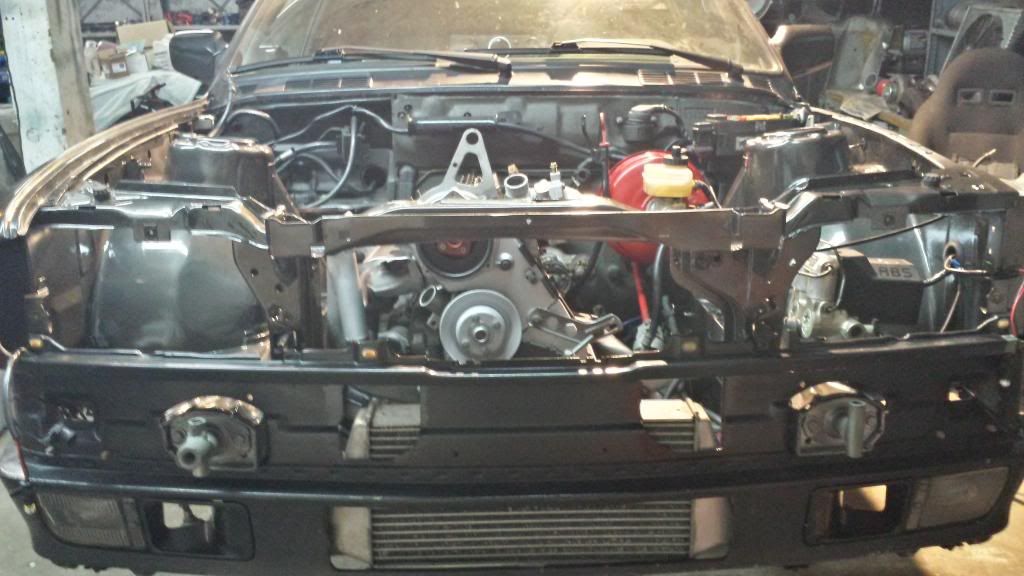

    [URL=http://s1071.photobucket.com/user/maneshorin/media/Mobile%20Uploads/20140129_001146_RichtoneHDR.jpg.html]

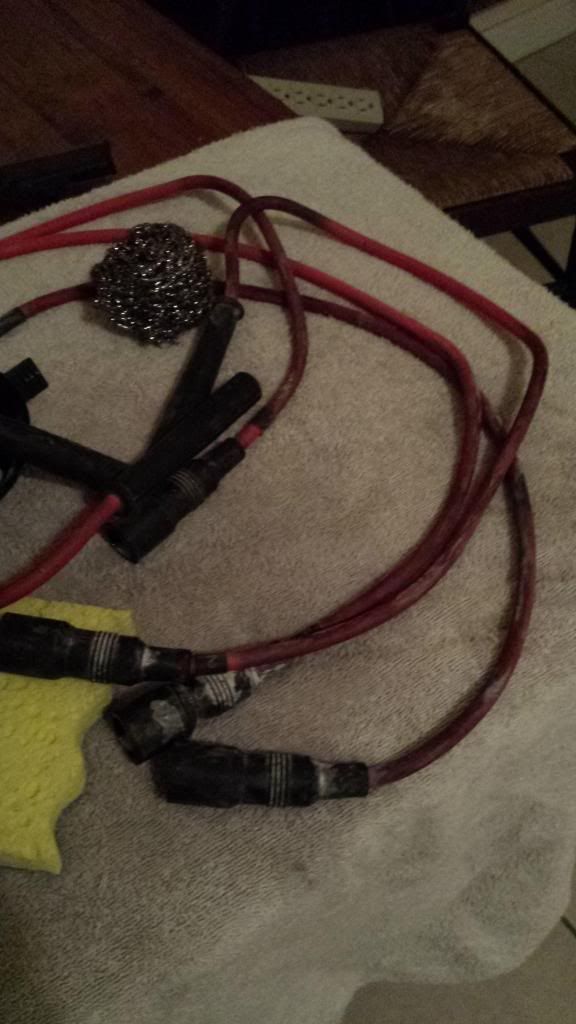

    all cleaned! Still in excellent shape!

    Comment


      #77
      Nice work! Can't wait to see more
      PNW E30 Crew : 1991 E30 S50, 2000 E39 M5

      sigpic

      Follow my S50 build
      : MY S50 E30

      Follow me on instagram : @damendesign

      E30 T-Shirts | M3 T-Shirts /Prints

      Comment


        #78
        Nice!!
        E30 325ix M50 turbo 7 spd DCT 4wd 840awhp @ 31 psi.
        E30 M50 6 spd 764whp @ 24psi.
        E30 M20 6 spd 675whp.

        Comment


          #79
          This is an awesome build! Quality work all around.

          Originally posted by SpasticDwarf;n6449866
          Honestly I built it just to have a place to sit and listen to Hotline Bling on repeat.

          Comment


            #80

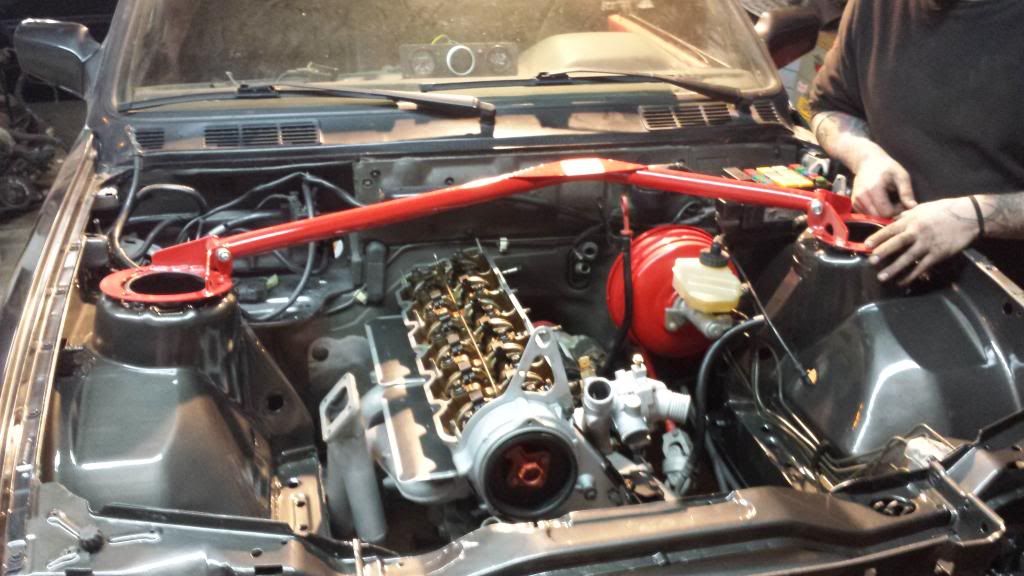

            OP, did you have any fitment issues with the front strut brace from Schmiedmann? or did it bolt right up without modification to it?
            '91 318i (Alpine) - daily
            '88 325ix (Zinno) - drive here and there!

            Comment


              #81

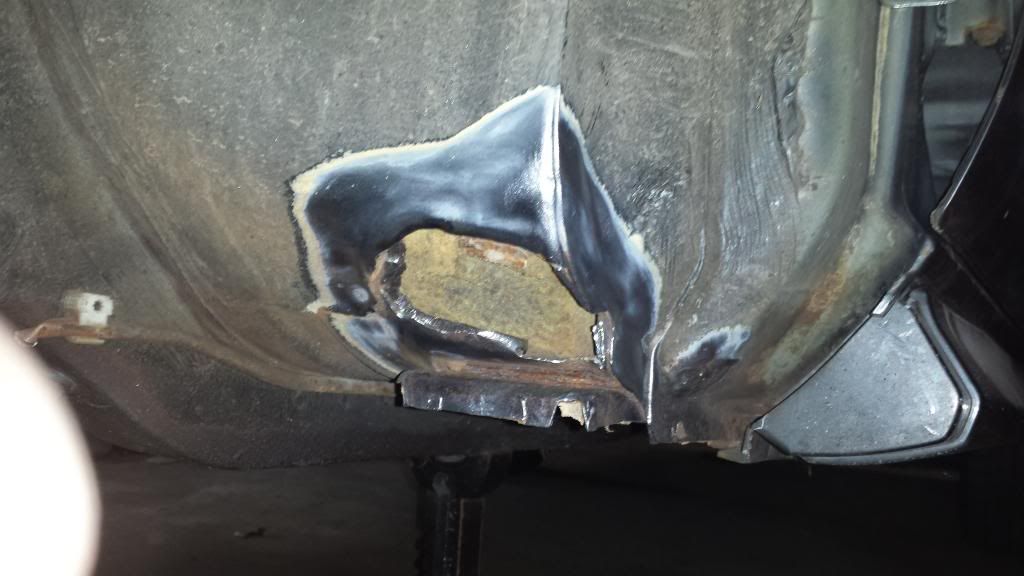

              Today I was determined to remove the final amount of history this car has seen. In an attempt to make this a completely "0" mileage car, I knew the underside would have SOME kind of surprises for me, especially being a new England winter driven car. To my suprise, there was legit only one hole on the drivers side floor, so she needed some weld!

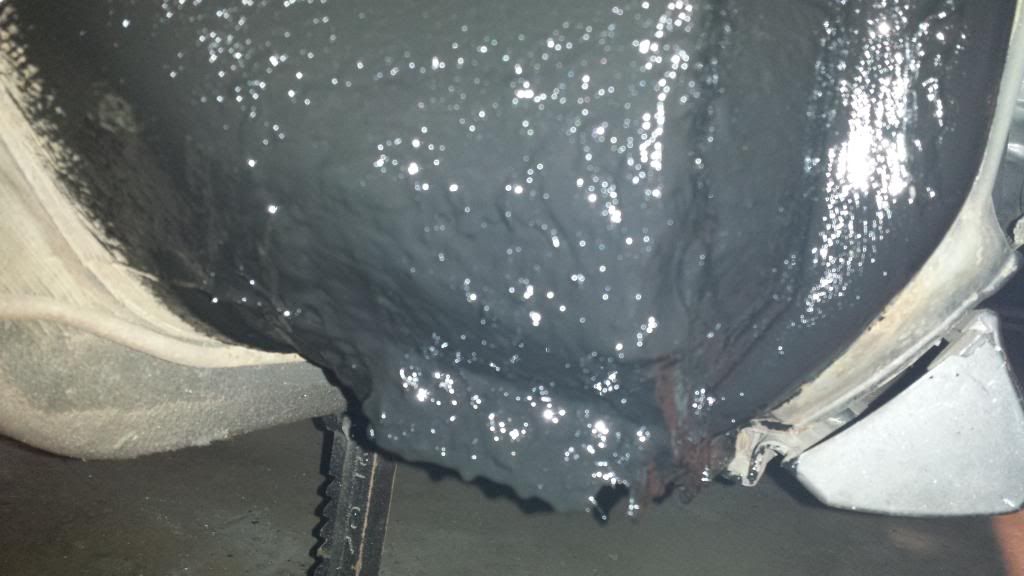

              After I patched in the hole fully seam welded.. I laid on some primer, por 15, seam sealer, and finished with rubber undercoating.
              Finished product:

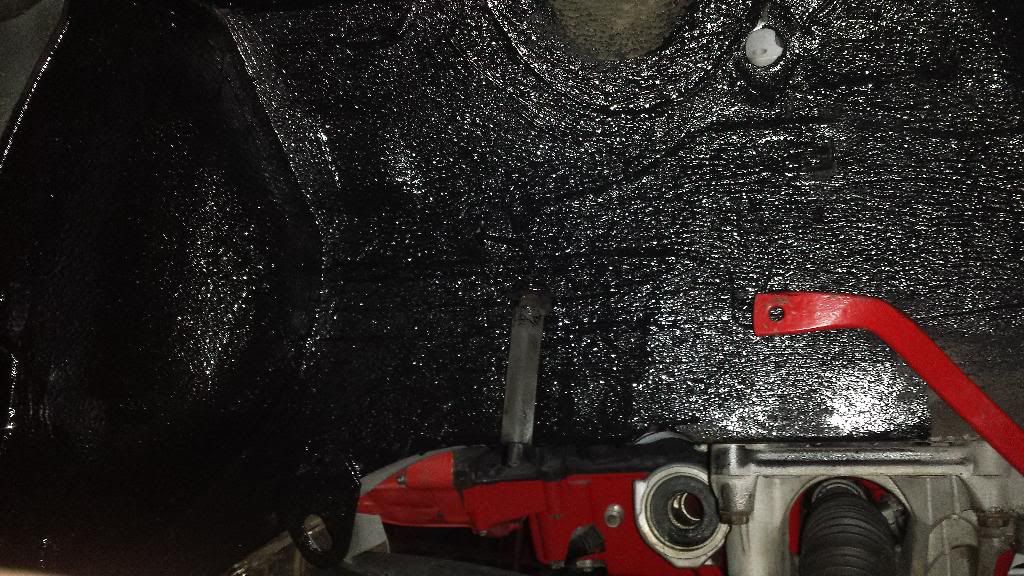

              After I finished this side, I went about putting por15 and rubber undercoating on the entire underbody, especially in all 4 fender wells, all along the fuel and brake lines, and frame rail areas, and Jack points. I'm so amazed how clean this car is underneath, and I Intended it to stay that way by doing this preventing maintenence.

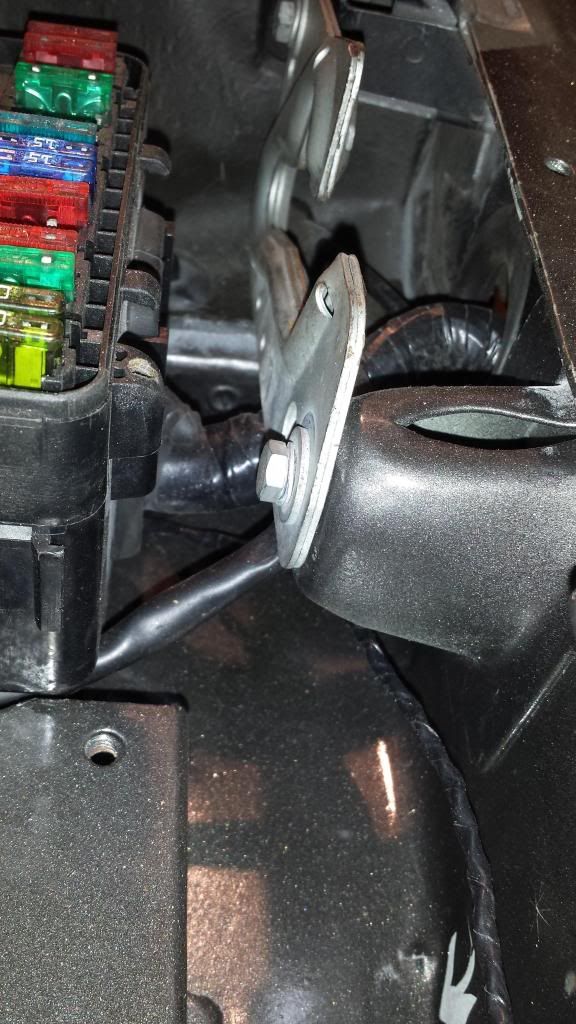

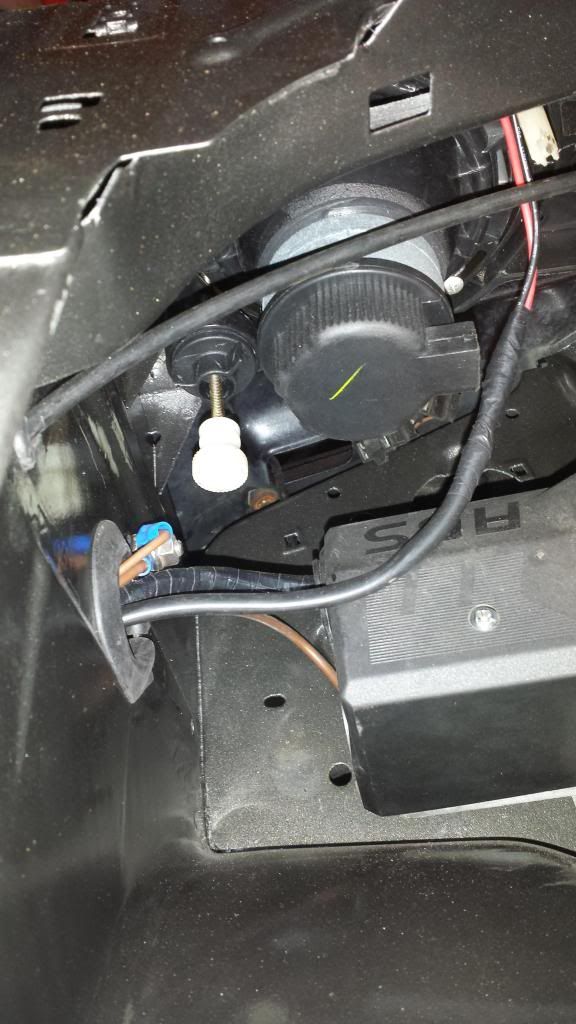

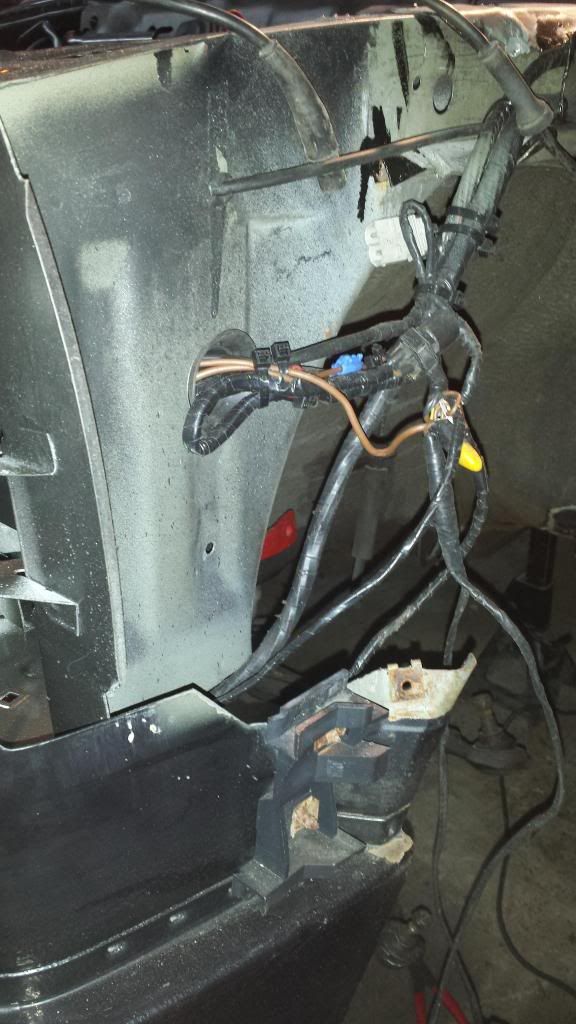

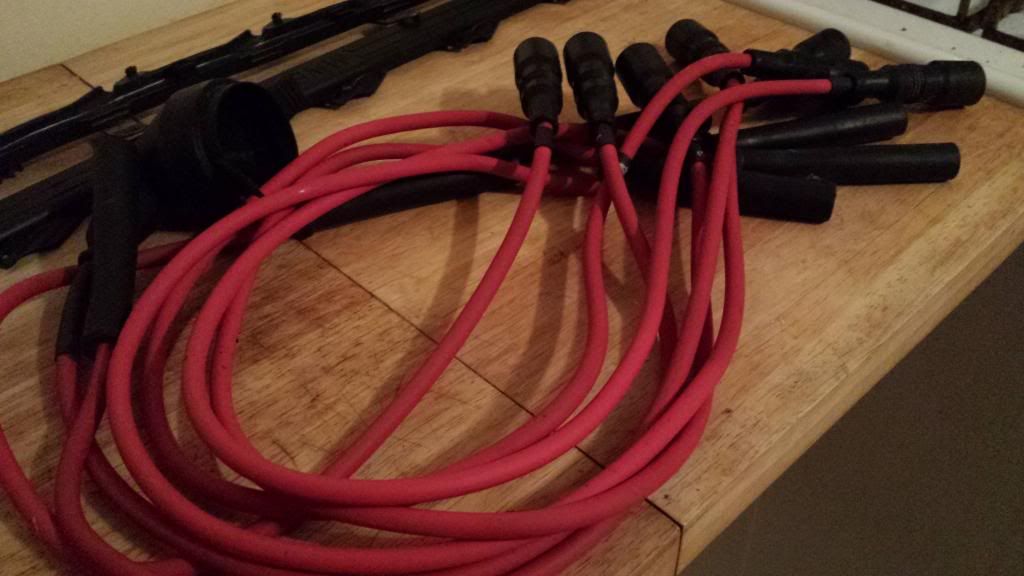

              Here are some pics of that wire tuck I scavenged up. It wasn't complete at the time but you get the idea.

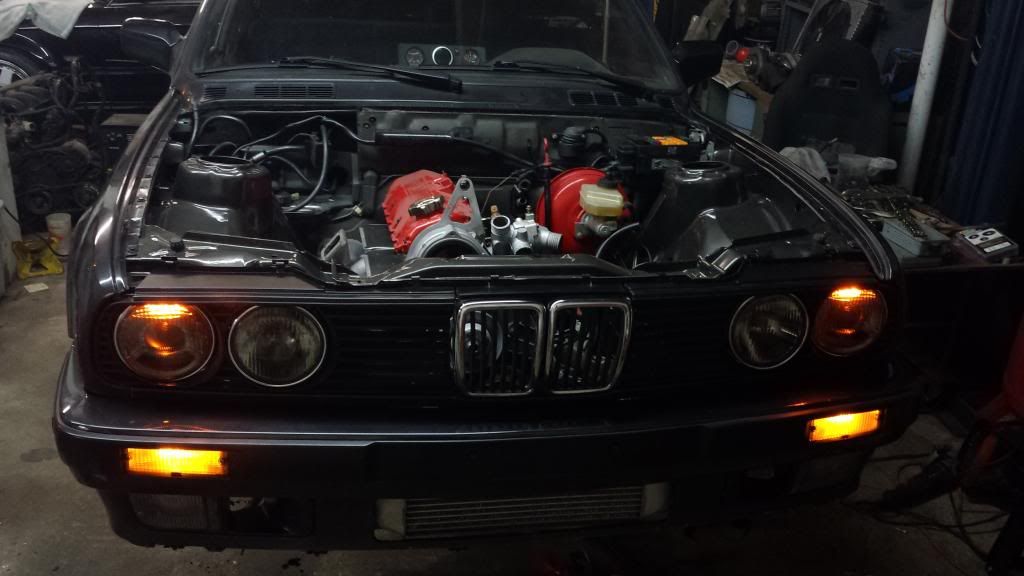

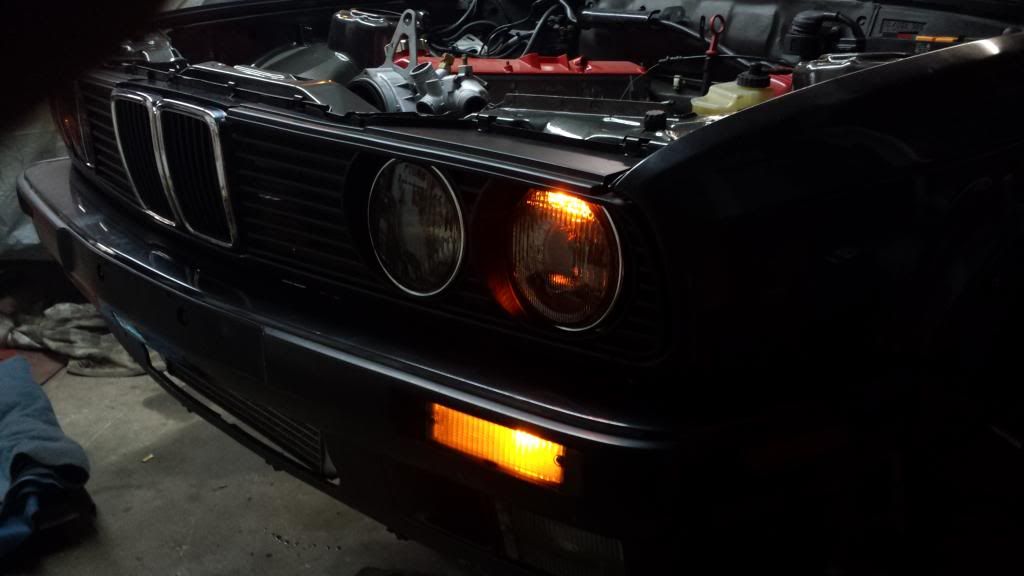

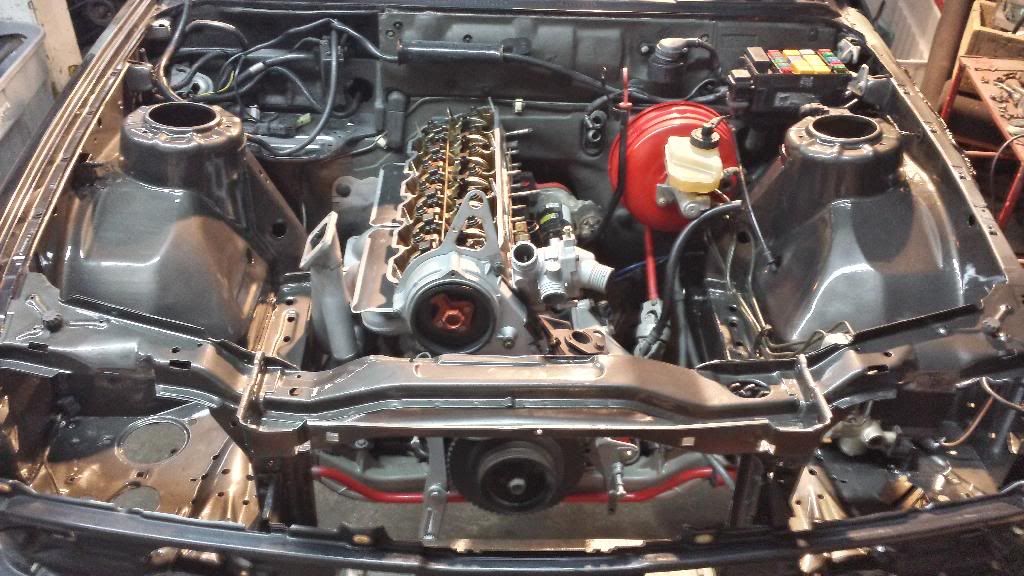

              Mocking things up ;) putting the fender and bumper back on and making sure wiring is correct and working. Finishing horns install tomorrow.


              Comment


                #82
                Very clean! Jealous :-)
                E30 325ix M50 turbo 7 spd DCT 4wd 840awhp @ 31 psi.
                E30 M50 6 spd 764whp @ 24psi.
                E30 M20 6 spd 675whp.

                Comment


                  #83
                  miiice work
                  sigpic

                  Comment


                    #84
                    thanks guys. will be posting current pictures soon. just have to update a few other sale threads.

                    Comment


                      #85

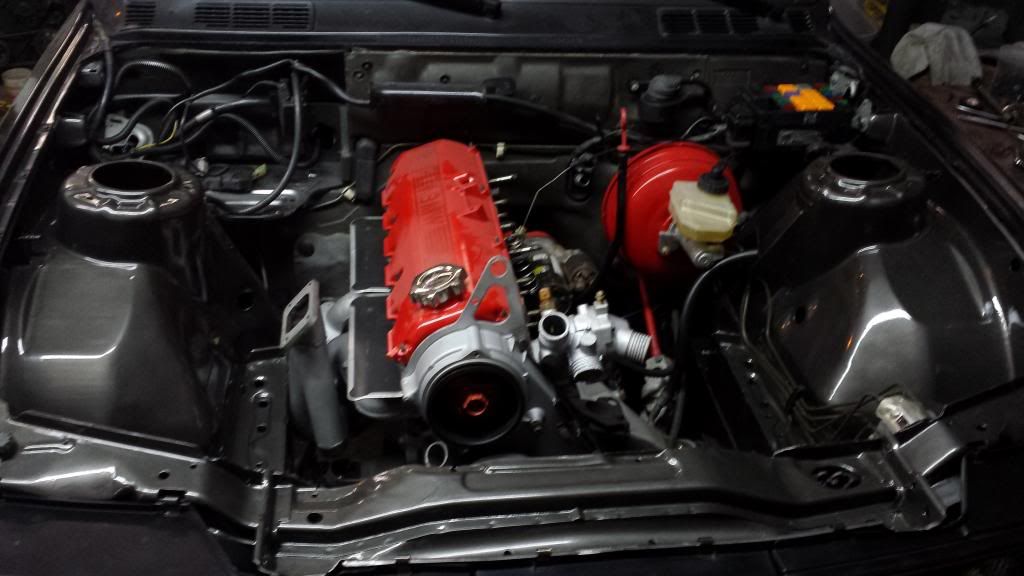

                      Okay here it is.. not very many huge updates, but I've spent a lot of time re fabricating the intercooler plumbing so it doesn't have a total of 9, 90° bends like it had before!.. reduced the 13 couplers it had down to a total of 4 also..., deciding intercooler will be concealed by the grill and kidneys for that "sleeper" look. The factory oil cooler will be moved in the lower location instead. Let's see. Also installed a shit ton of heat insulation, reflection, wrap, and a blanket. Trying to keep the heat where it belongs! Happy to say I cleaned up the dust a bit, got some clear coat on a few things, and well.. let's let the pics do the talking. Take note to the throttle body detail.

                      Comment


                        #86

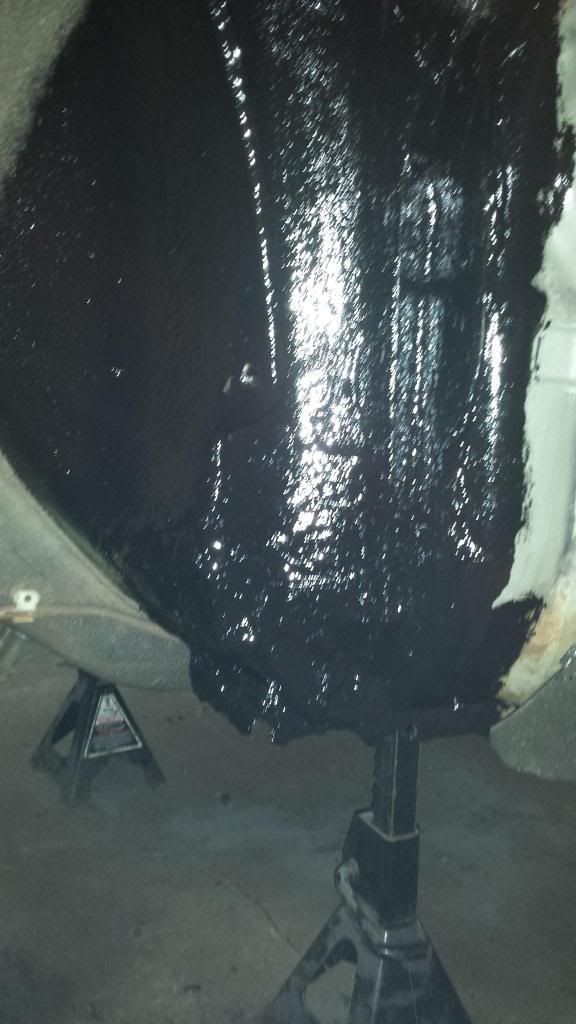

                        I sprayed both fender wells, and underbody with lizard skin

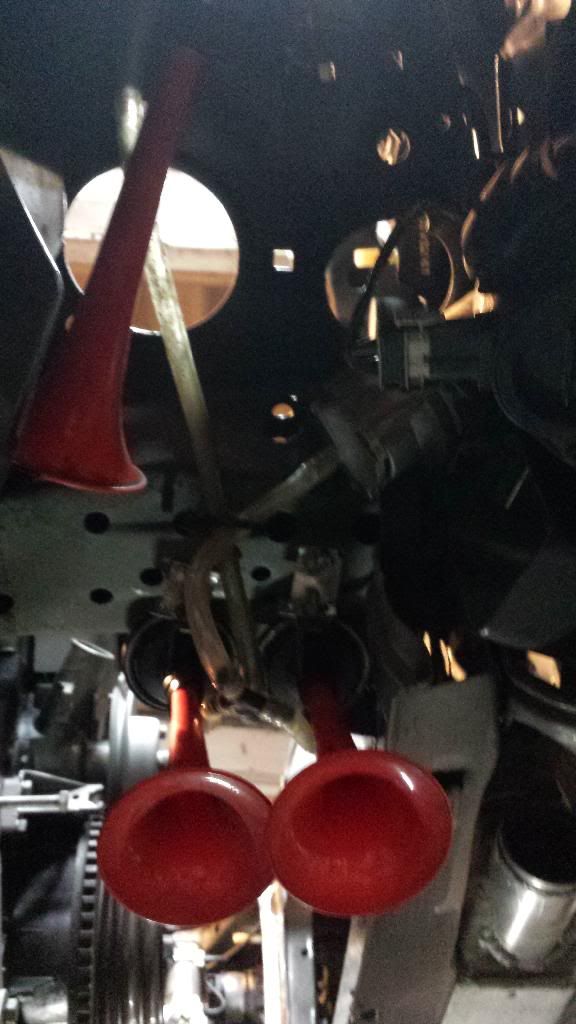

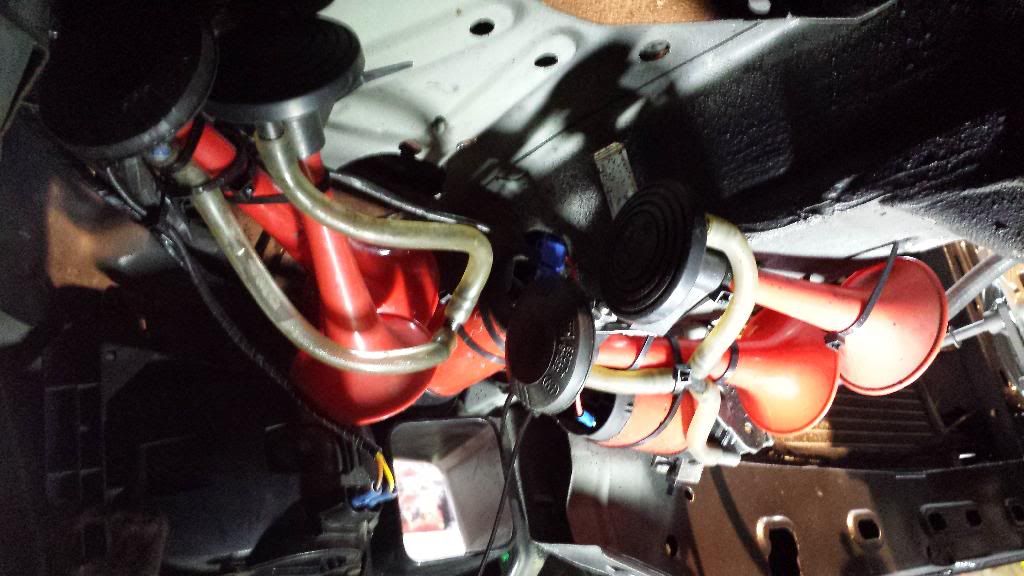

                        Added a total of 9 HELLA air horns. :)

                        3 on the left 6 on the right, 3 compressors total, powered by a wired relay setup with its own 20amp fuse.

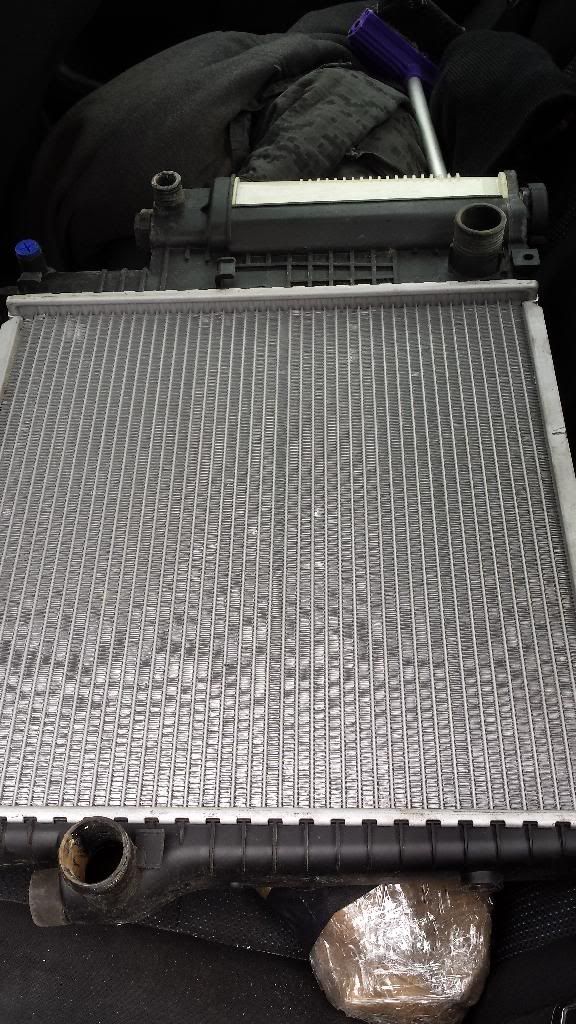

                        Found a means of eliminating my expansion tank finally.


                        Red fan pulls much more volume of air from the bigger engine it cooled before. Fills the area of the cores perfect and is exactly 3/4" clearance all the way around once mounted. On the opposite side I have a spal slim fan I have wired to an interior manual controlled illuminated switch.


                        Happy Valentines day!!



                        My sweetheart modeling her new car show tshirt I got her.

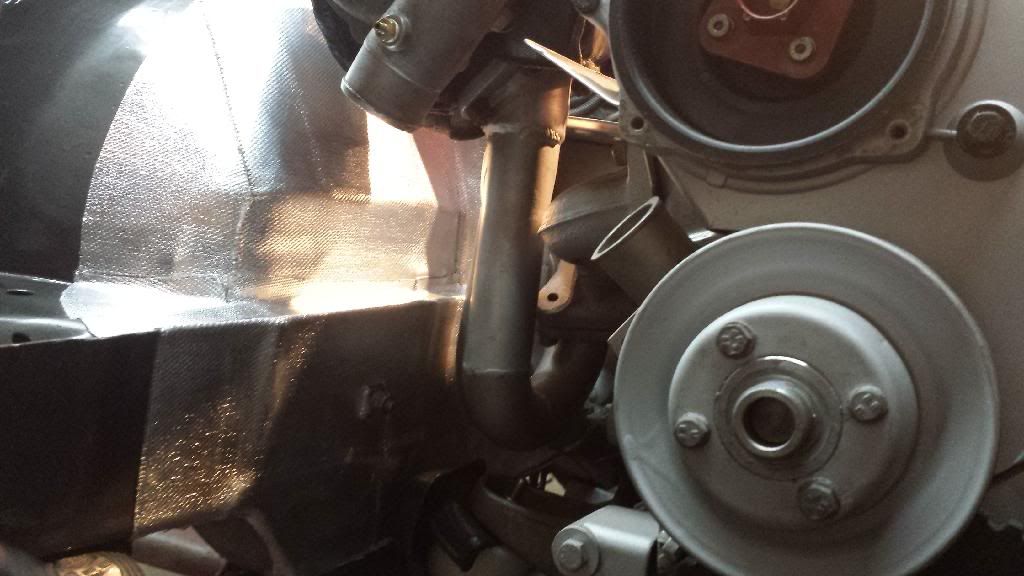

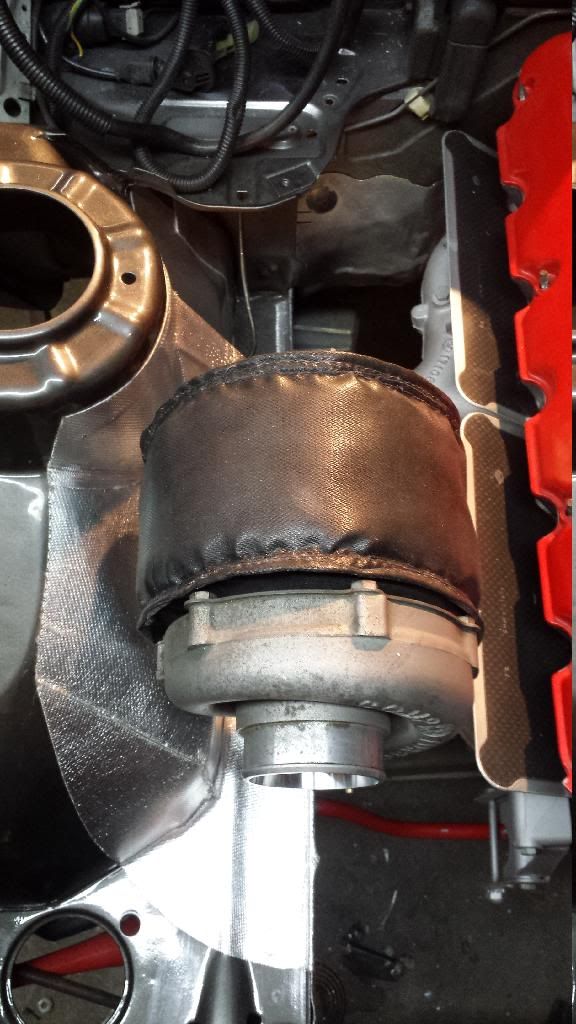

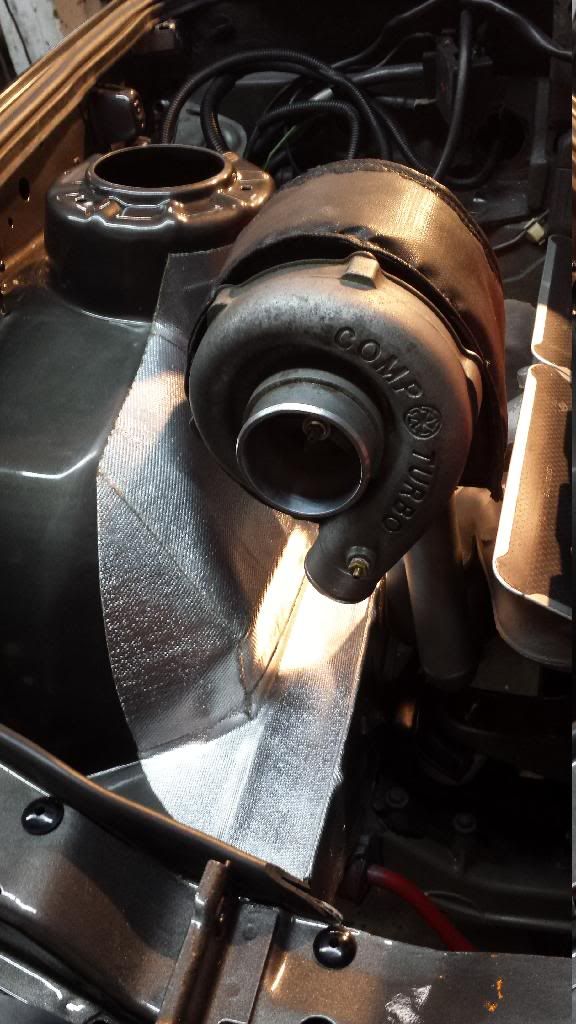

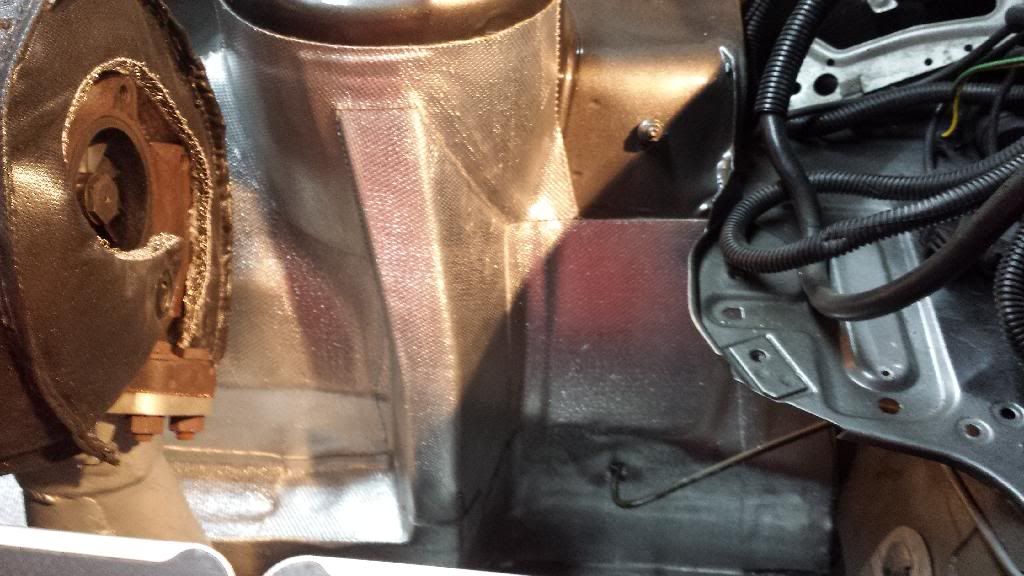

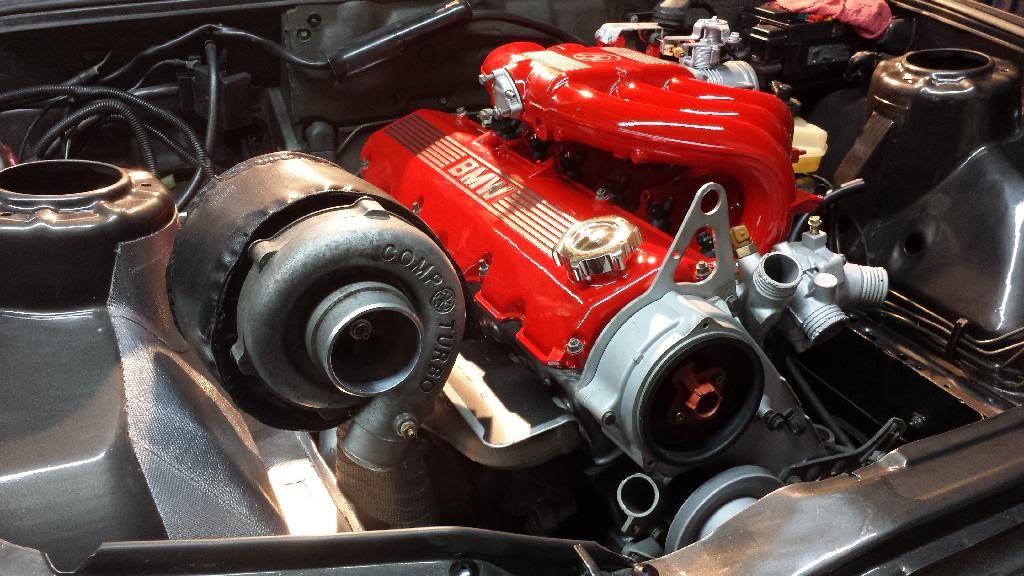

                        Turbo blanket, manifold wrapped, and heat deflection installed. No angle spared here.

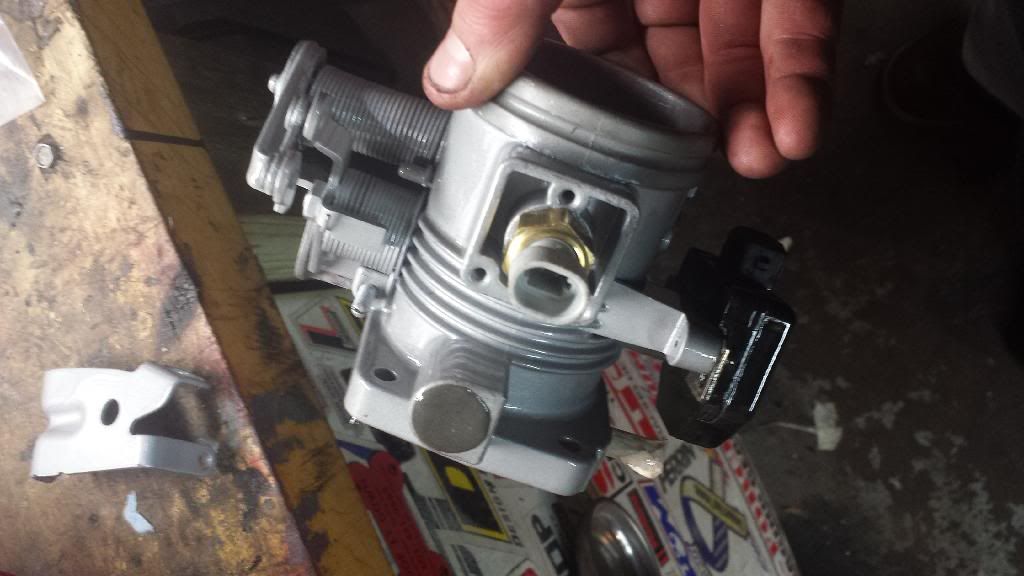

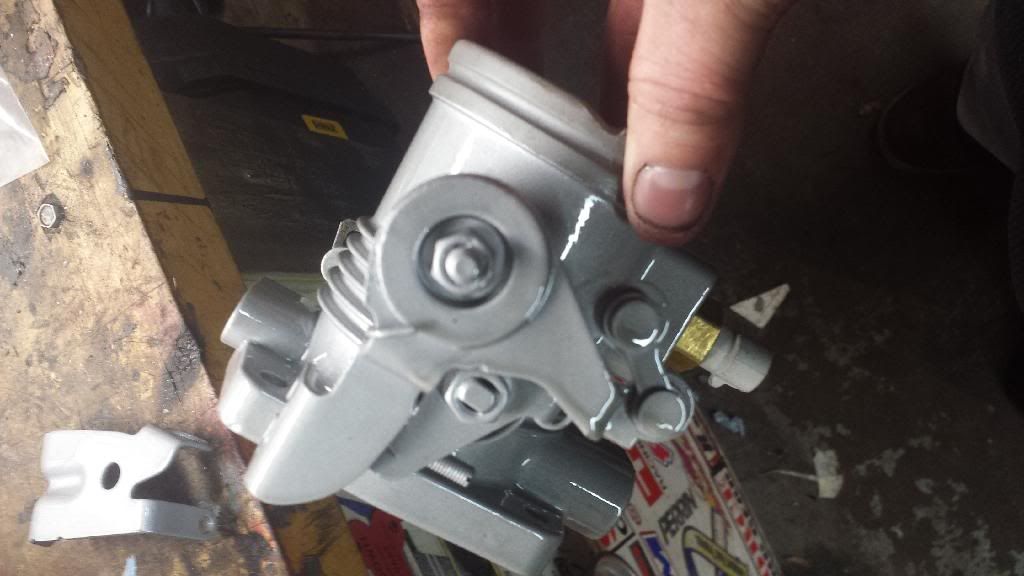

                        Altered throttle body. Tapped for iat valve, eliminated icv.

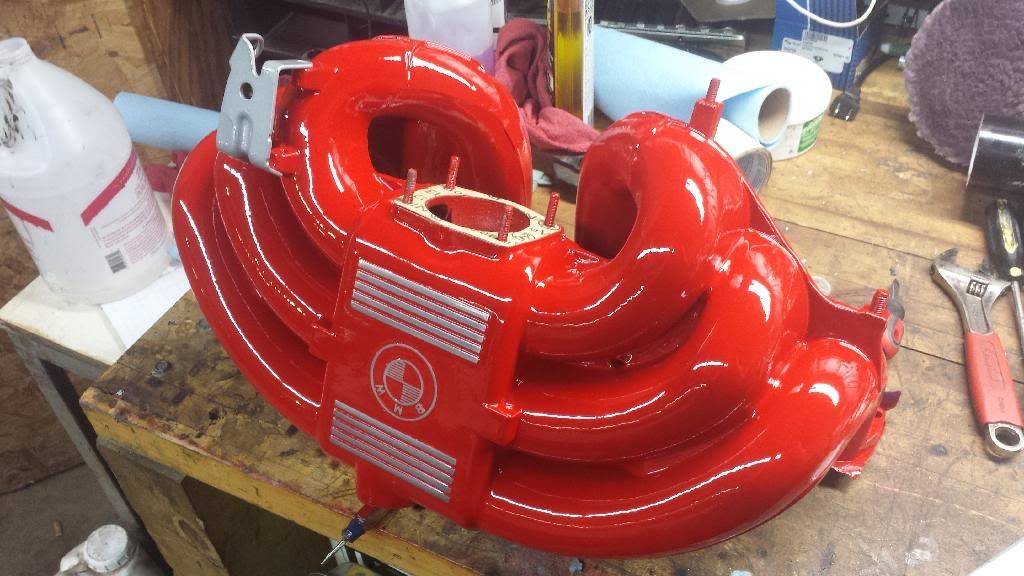

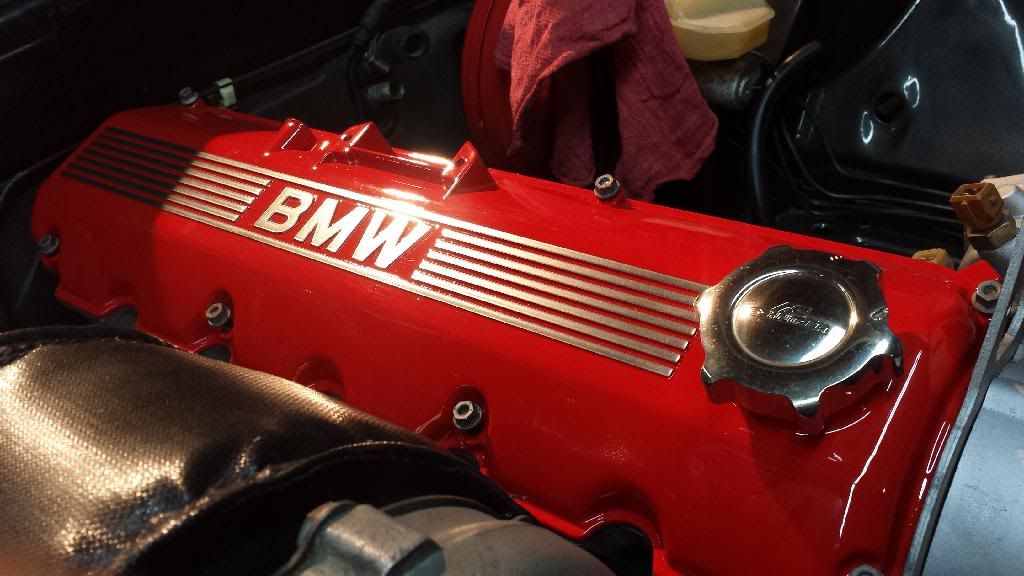

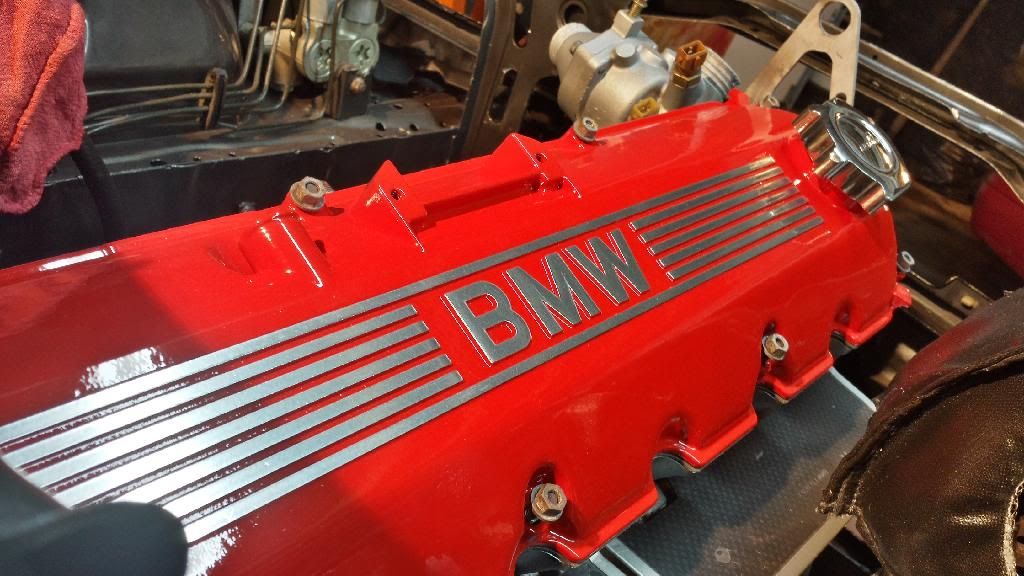

                        Last minute beautifying, new ggaskets + hardware, polishing, clearing etc
                        .







                        Lots more in the mail ready to go in, stay tuned!.

                        Comment


                          #87
                          Cool job, that engine looks nice :)
                          https://www.facebook.com/Cry_77_IX-110483784967661
                          https://www.instagram.com/cry_77_ix/

                          Comment


                            #88
                            Beautiful!
                            E30 325ix M50 turbo 7 spd DCT 4wd 840awhp @ 31 psi.
                            E30 M50 6 spd 764whp @ 24psi.
                            E30 M20 6 spd 675whp.

                            Comment


                              #89
                              Looks great! What's with the air horns? Better not be planning a Dukes of Hazard jump in this thing lol
                              Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.

                              Build Thread
                              Rear Diff Rebuild
                              Rebuildable Viscous Coupling
                              Transfer Case Rebuild
                              "Life is simpler with 12 valves"

                              Comment


                                #90
                                Originally posted by imwhyteyo View Post
                                Found a means of eliminating my expansion tank finally.

                                Looks OE... part number? Does it clip onto the radiator? What radiator is that?

                                Originally posted by imwhyteyo View Post
                                I sprayed both fender wells, and underbody with lizard skin

                                heat deflection installed. No angle spared here.

                                [URL=http://s1071.photobucket.com/user/maneshorin/media/Mobile%20Uploads/20140212_232301.jpg.html]
                                I appreciate that you mention what products you're using. Thanks.

                                What heat deflection product is that?

                                That's a very neat job installing it, as you're well aware. With that level of attention to detail, you could definitely find work as a technician building satellites, if you wanted. Not kidding... I've worked on the engineering side of satellite and space systems integration.

                                Originally posted by imwhyteyo View Post
                                Altered throttle body. Tapped for iat valve, eliminated icv.

                                The IAT is not a valve.
                                What are you planning to use to control idle?
