    Need part # verification on this vacuum hose

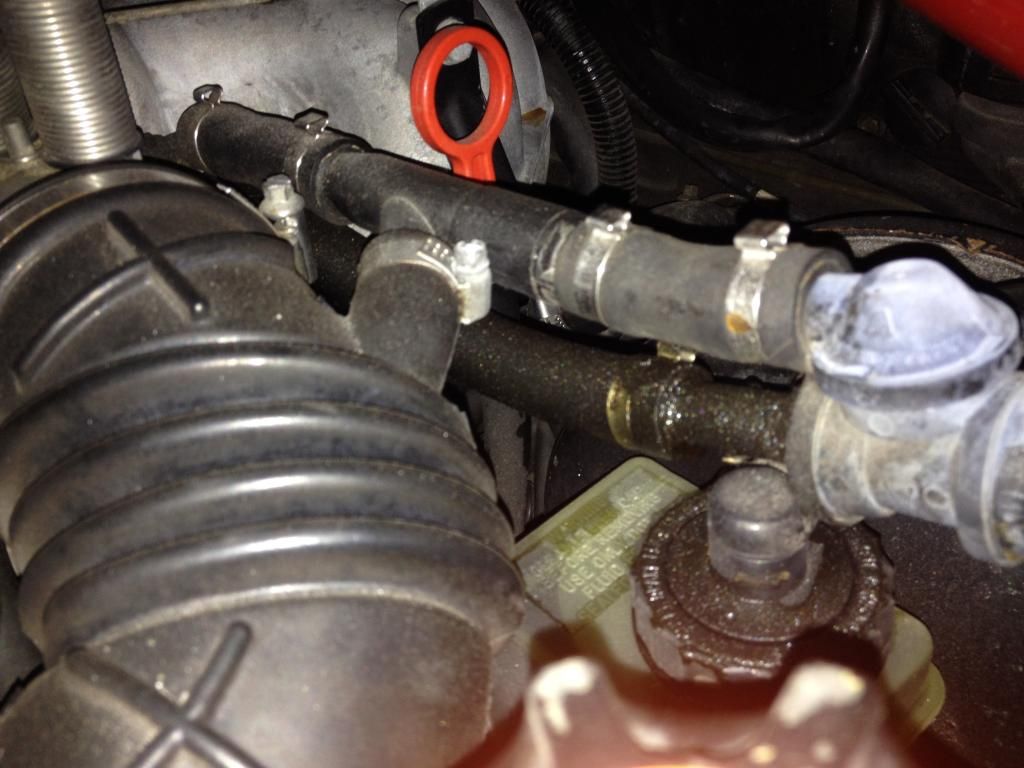

    I looked up on realoem for this hose (which appears to be #3) based on the diagram. Its basically a straight looking hose that goes from the intake manifold to this valve.



    Can anyone tell me what the correct part # is? Realoem is saying 34331153977....but I ordered it and its an elbow hose. not the right one.

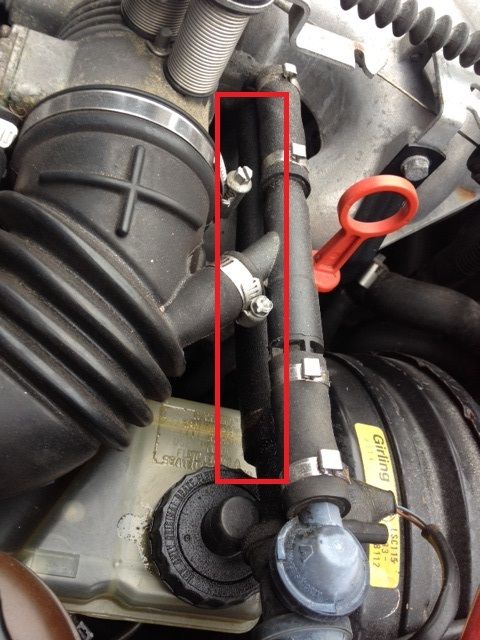

    Picture circled is the hose I'm trying to replace.

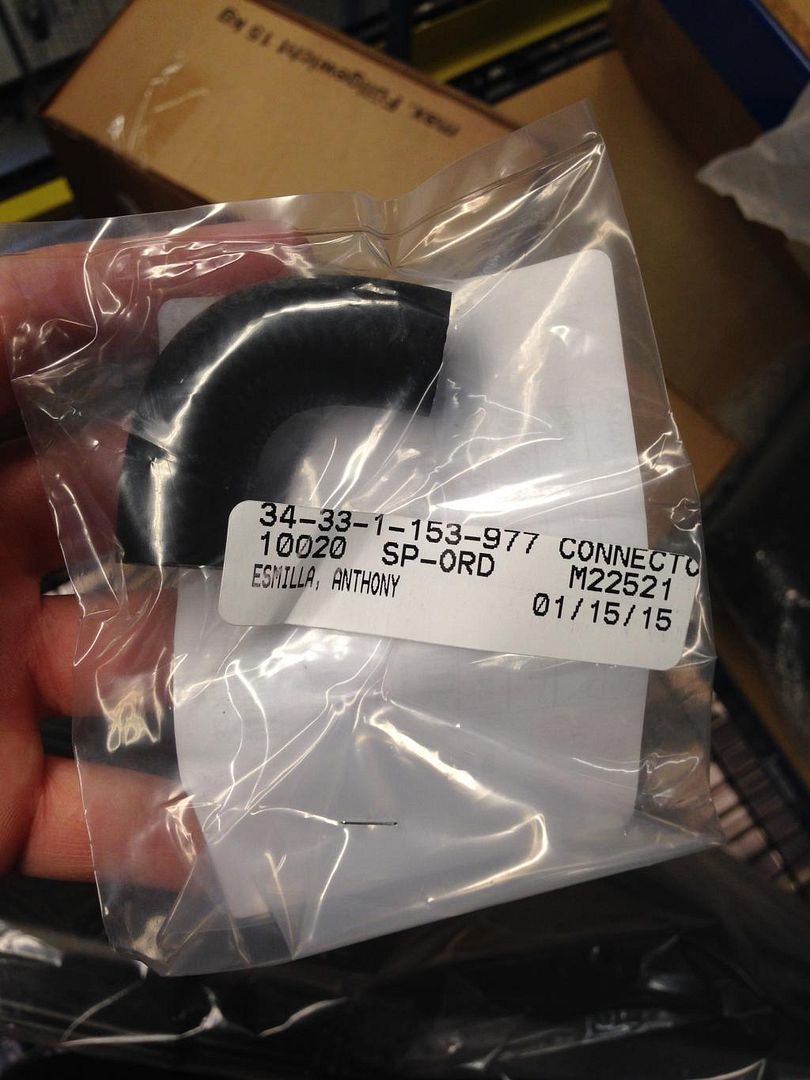

    this is the wrong part, which realoem said was correct?
    www.instagram.com/snwmble
    #snwmble

    Current:
    '05 BMW M3 - Silver Grey/Imola Red
    '90 BMW 325iX - Sterling Silver/Houndstooth sport(5-speed converted)
    '15 Mini Countryman - Blazing Red/Carbon Black

    Past:
    '01 Audi Allroad - Light Silver/Platinum Saber Black
    '88 BMW 325iX - Diamond Schwarz/Silver sport *Sold*
    '01.5 1.8TQ - Brilliant Black/Nogaro Alcantara ...after 8.5yrs, *Sold* =(
    '90 BMW 325i - Schwarz/Tan sport *Sold*
    '89 BMW 325ix - Diamond Schwarz/Black sport *Sold*

    #2
    i'm not sure if the diagram is even correct, b/c #3 appears to have a kink in it....mine doesn't....
    www.instagram.com/snwmble
    #snwmble

    Current:
    '05 BMW M3 - Silver Grey/Imola Red
    '90 BMW 325iX - Sterling Silver/Houndstooth sport(5-speed converted)
    '15 Mini Countryman - Blazing Red/Carbon Black

    Past:
    '01 Audi Allroad - Light Silver/Platinum Saber Black
    '88 BMW 325iX - Diamond Schwarz/Silver sport *Sold*
    '01.5 1.8TQ - Brilliant Black/Nogaro Alcantara ...after 8.5yrs, *Sold* =(
    '90 BMW 325i - Schwarz/Tan sport *Sold*
    '89 BMW 325ix - Diamond Schwarz/Black sport *Sold*

    Comment


      #3
      Is the hose you received #5 instead of #3?
      Could the part numbers for the callouts be reversed on RealOEM?

      Comment


        #4
        Originally posted by The Dark Side of Will View Post
        Is the hose you received #5 instead of #3?
        Could the part numbers for the callouts be reversed on RealOEM?

        i'm not exactly sure. #5 doesn't even look like the #5 that was ordered. I'm so confused lol
        www.instagram.com/snwmble
        #snwmble

        Current:
        '05 BMW M3 - Silver Grey/Imola Red
        '90 BMW 325iX - Sterling Silver/Houndstooth sport(5-speed converted)
        '15 Mini Countryman - Blazing Red/Carbon Black

        Past:
        '01 Audi Allroad - Light Silver/Platinum Saber Black
        '88 BMW 325iX - Diamond Schwarz/Silver sport *Sold*
        '01.5 1.8TQ - Brilliant Black/Nogaro Alcantara ...after 8.5yrs, *Sold* =(
        '90 BMW 325i - Schwarz/Tan sport *Sold*
        '89 BMW 325ix - Diamond Schwarz/Black sport *Sold*

        Comment


          #5
          Not exactly clear on what you are looking for. Do you need the plastic "Y" connector or the hose underneath it? If it is the hose, you need to just buy the "bulk" hose (#4) and cut to the length needed.

          Comment


            #6
            update, the correct part # was 34331115926 which is a meter of vacuum hose, which I cut to length.

            It covers both #4 hoses in the realoem diagram, as well as #3 fyi



            it fixed the hard start, and loss of power on the top end. Easy fix!
            www.instagram.com/snwmble
            #snwmble

            Current:
            '05 BMW M3 - Silver Grey/Imola Red
            '90 BMW 325iX - Sterling Silver/Houndstooth sport(5-speed converted)
            '15 Mini Countryman - Blazing Red/Carbon Black

            Past:
            '01 Audi Allroad - Light Silver/Platinum Saber Black
            '88 BMW 325iX - Diamond Schwarz/Silver sport *Sold*
            '01.5 1.8TQ - Brilliant Black/Nogaro Alcantara ...after 8.5yrs, *Sold* =(
            '90 BMW 325i - Schwarz/Tan sport *Sold*
            '89 BMW 325ix - Diamond Schwarz/Black sport *Sold*

            Comment


              #7
              yeah, it's part #4. it comes in lengths that you cut to size. I replaced mine a few years ago.
