    Busted Mounting Studs

    Click image for larger version

Name:	IMG_3124.jpg
Views:	101
Size:	135.0 KB
ID:	10118451 Click image for larger version

Name:	IMG_3119.jpg
Views:	84
Size:	227.0 KB
ID:	10118453 Click image for larger version

Name:	IMG_3118.jpg
Views:	82
Size:	234.2 KB

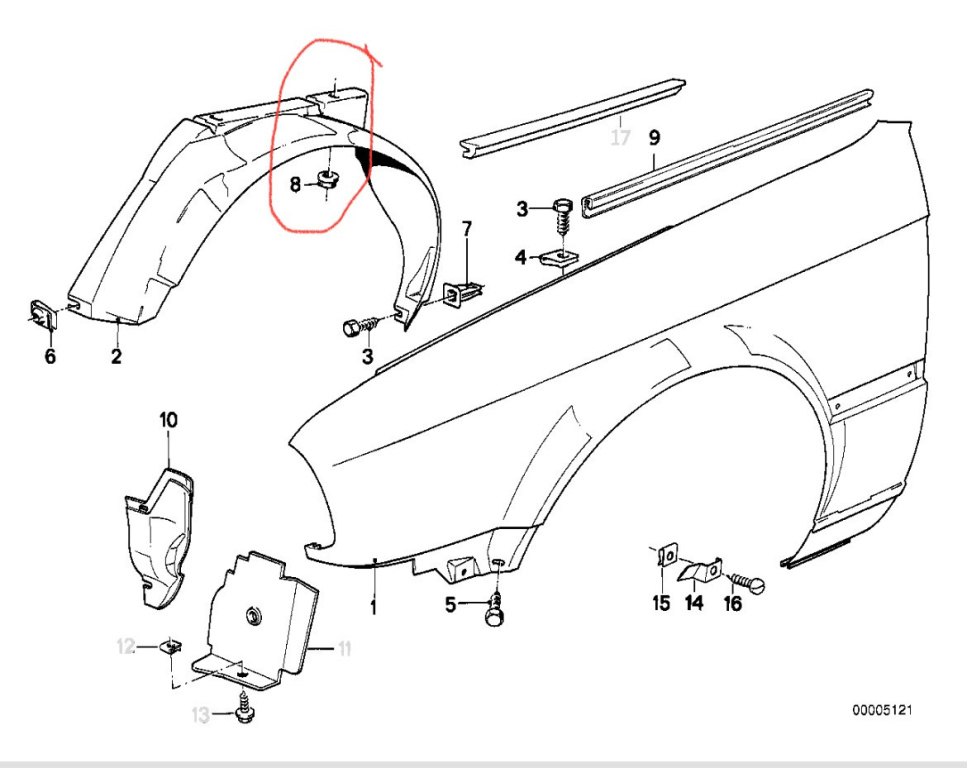

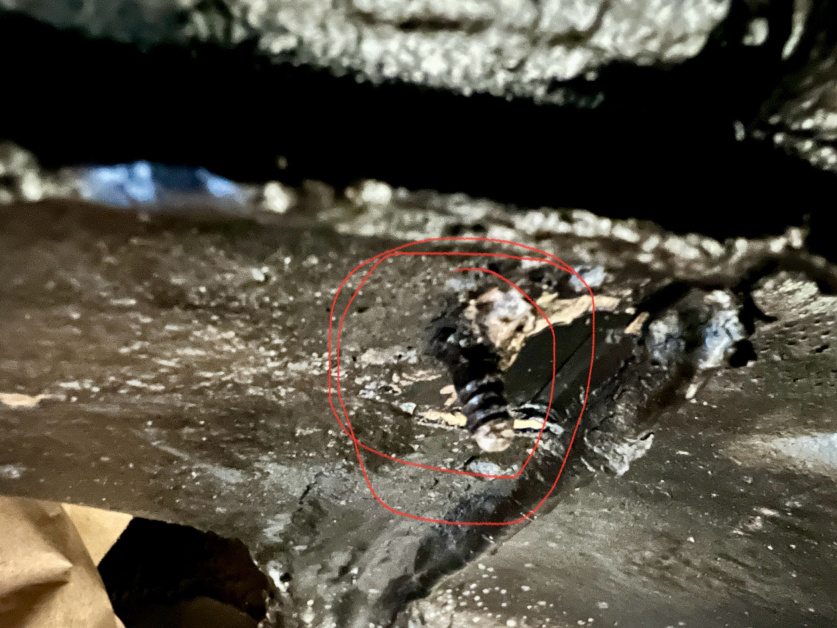

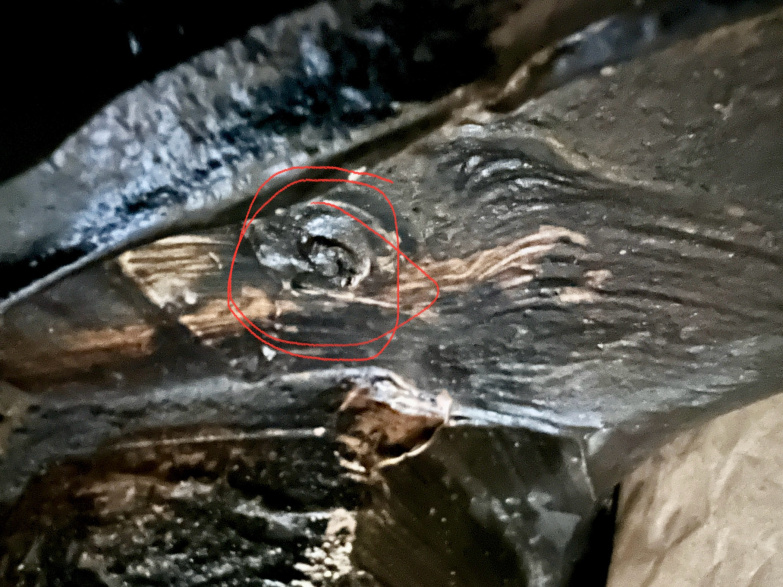

ID:	10118454 What’s the preferred way to deal with repairs of these little studs underneath the body. Nearly all of them under my car have corroded to the nuts and twist off when I try to remove. Pictured here are the ones used to attached the plastic inner fender (one twisted off, and one that stuck around).

    Attached Files
  • zaq123
    E30 Fanatic
    • Jul 2016
    • 1364

    #2

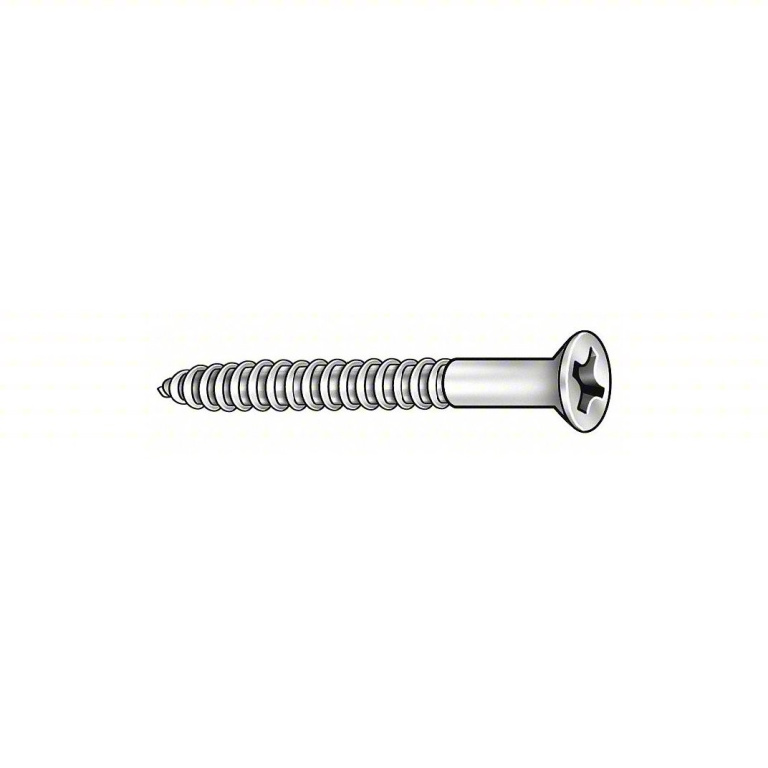

    I did a couple of those during my restoration. Clean small spot to the metal, find the screw that matched the nut, cut the head and the tip of the screw, weld to the car, paint and reapply the coating. You can use 3M seam sealer to match the coating.
    Have fun
    Click image for larger version

Name:	31JE34_AS01.jpg
Views:	109
Size:	43.0 KB
ID:	10118486

    Comment

    • ehrawn
      Advanced Member
      • Aug 2023
      • 153

      #3
      Finally addressed the issue. My no-weld solution was
      blind rivet nut -> short stud w a little dab of epoxy -> nut and washer



      Not the most elegant, but where it pokes through the inner fender isn’t visible.
