    bumpers (pics)

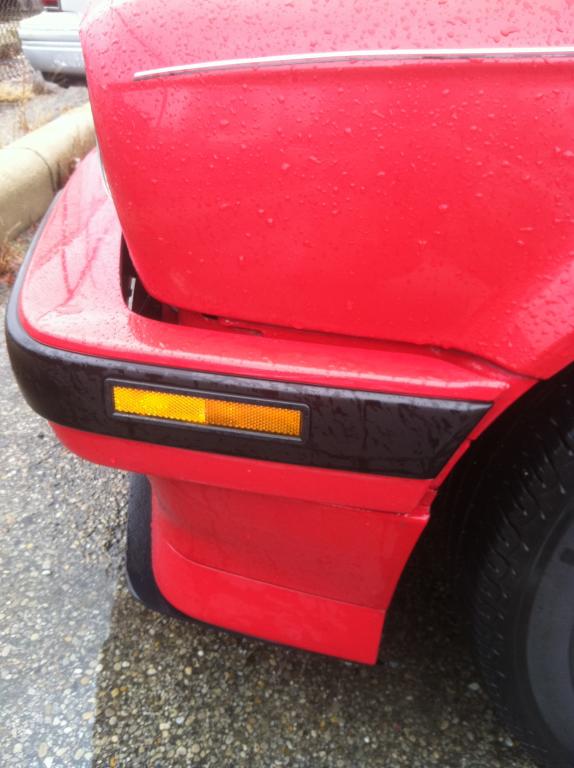

    I have an 88is and my front bumper has an annoying gap that I don't know how to get rid of? any help
    I cant seem to get the picture of the front of my car to upload but there is a decent gap that I need gone
    Attached Files
    sigpic
  • ak-
    R3V OG
    • May 2009
    • 12422

    #2
    Take off the bumper and see what's going on with the black slides that go behind the sidemarkers. That's where you adjust to fit.

    1991 325iS turbo

    Comment

    • CR325IS
      E30 Addict
      • Mar 2010
      • 514

      #3
      Its just the 2 bolt under the front of the bumper to remove right?
      sigpic

      Comment

      • ak-
        R3V OG
        • May 2009
        • 12422

        #4
        Originally posted by CR325IS
        Its just the 2 bolt under the front of the bumper to remove right?
        Yes, then evenly with both hands wide, pull hard. You won't break anything, just pull.

        Edit: The sidemarker lights will still be connected and only have about 4 inches of wire-slack to the bumper so be careful not to rip those as you pull, lol.

        1991 325iS turbo

        Comment

        • flash 23
          E30 Modder
          • Aug 2008
          • 904

          #5
          ya and the lights attached to them

          Comment

          • CHIF8008
            No R3VLimiter
            • Nov 2010
            • 3447

            #6
            through inspection first is a must
            -FREEDOM- is cruisin at 80, windows down and listening to the perfect song-thinking "this is it"
            -The Beauty in the Tragedy-
            MECHANIC SMASH!!- (you all know you do it)
            Got Drop?? ;-)
            Originally posted by JinormusJ
            But of course
            E30s are know to be notoriously really really really ridiculously good looking

            Comment

            • CR325IS
              E30 Addict
              • Mar 2010
              • 514

              #7
              am I looking for placement of the slides or is this a shock issue?
              sigpic

              Comment

              • flash 23
                E30 Modder
                • Aug 2008
                • 904

                #8
                double check fitment of fender(s) and valance and tweak if needed, then adjust the brackets accordingly (if needed). ak mentioned the location of the brackets

                Comment

                • CR325IS
                  E30 Addict
                  • Mar 2010
                  • 514

                  #9
                  the slides wont go back any farther. I think its the shroudwhere the shocks go into I took it off yesterday and they stick out pretty far, Do i need to cut/weld?
                  sigpic

                  Comment

                  • AndrewBird
                    The Mad Scientist
                    • Oct 2003
                    • 11892

                    #10
                    Wait a minute. 88 cars came with diving boards, not plastic bumpers. Has yours been converted?

                    If so, I wonder if you have the wrong bumper shocks? I think early model compared to late model were different length.

                    Comment

                    • CR325IS
                      E30 Addict
                      • Mar 2010
                      • 514

                      #11
                      yeah i converted to plastic. Im not sure on the length of the shocks
                      sigpic

                      Comment

                      • Ian Bowers
                        E30 Enthusiast
                        • Apr 2008
                        • 1120

                        #12
                        If you didn't change bumper shocks, that would definitely cause them to stick out like that. I bet NitroRustlerDriver hit the nail on the head, personally.

                        Comment

                        • CR325IS
                          E30 Addict
                          • Mar 2010
                          • 514

                          #13
                          so late bumper shocks will fix this because the slides are in the right spot.
                          sigpic

                          Comment

                          • Northern
                            R3V Elite
                            • Nov 2010
                            • 5045

                            #14
                            This is an issue on the passenger side of my '90... it has nothing to do with the side alignment tabs, as they only correct for up/down.

                            Valence/fenders/hood/rad support all align perfectly, so its not that. It bothers me every time I get close to the car.
                            Originally posted by priapism
                            My girl don't know shit, but she bakes a mean cupcake.
                            Originally posted by shameson
                            Usually it's best not to know how much money you have into your e30

                            Comment

                            • Vivek
                              attention whore/retard/bitch
                              • Oct 2011
                              • 6167

                              #15
                              Maybe drill and tuck the shocks you have if you don't wanna track down/buy new ones?
