How to remove guage cluster circuit board?

[Mason]

I can't figure out how to remove the guage cluster circuit board without breaking it. Mine seems to be extremely stuck. The plug on the other side is removed.

[D3R3K]

cant tell in the picture but is the coding plug removed?, if so it should just slide out, may be a little stuck from being installed for ever. may have to wiggle side to side while pulling to get it out

[Mason]

cant tell in the picture but is the coding plug removed?, if so it should just slide out, may be a little stuck from being installed for ever. may have to wiggle side to side while pulling to get it out

Yeah the coding plug is removed but it doesn't seem like it wants to come out. I can get the plug side to move by pushing from the bottom but I haven't been able to move the other side.

[D3R3K]

Yeah the coding plug is removed but it doesn't seem like it wants to come out. I can get the plug side to move by pushing from the bottom but I haven't been able to move the other side.

Do you have a picture from the other side?, people commonly put the wrong screws in the middle 2 holes and it screws into the board which will damage it and if there still there will also hold it in

[Mason]

Do you have a picture from the other side?, people commonly put the wrong screws in the middle 2 holes and it screws into the board which will damage it and if there still there will also hold it in

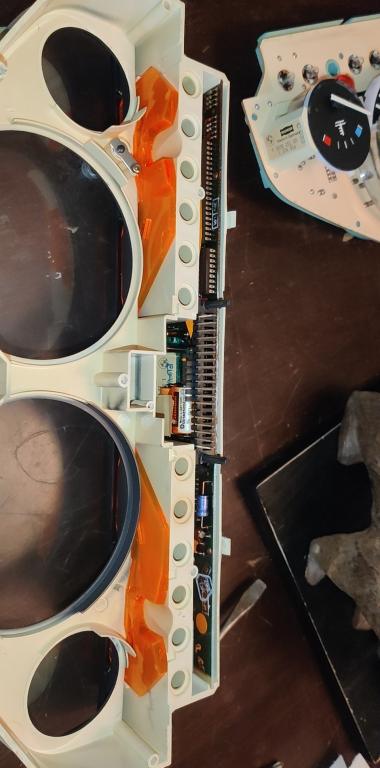

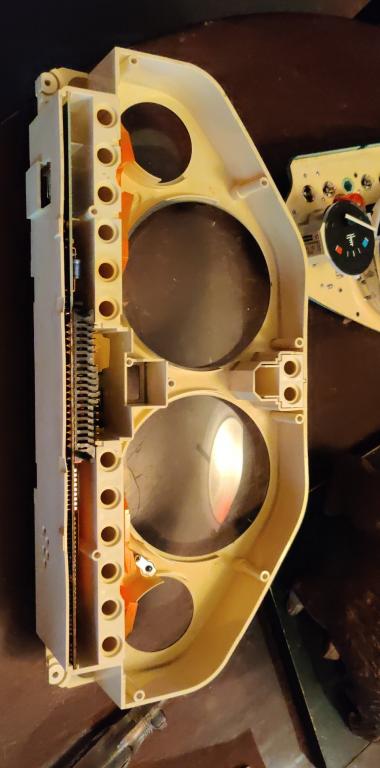

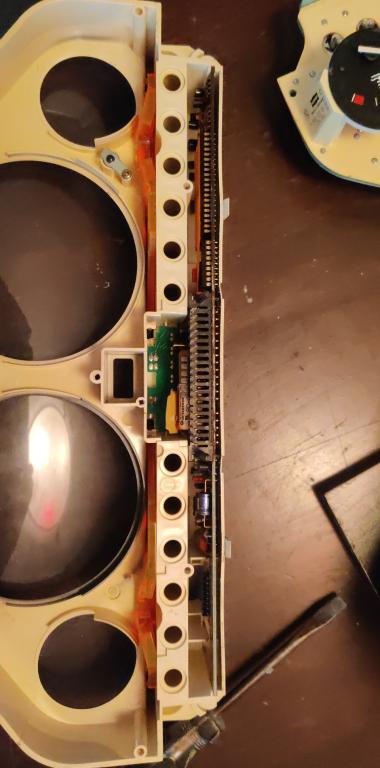

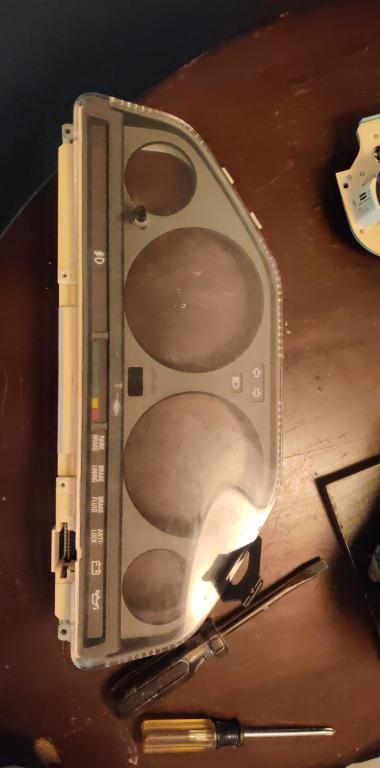

Here's some more photos. Thanks for the help.

[D3R3K]

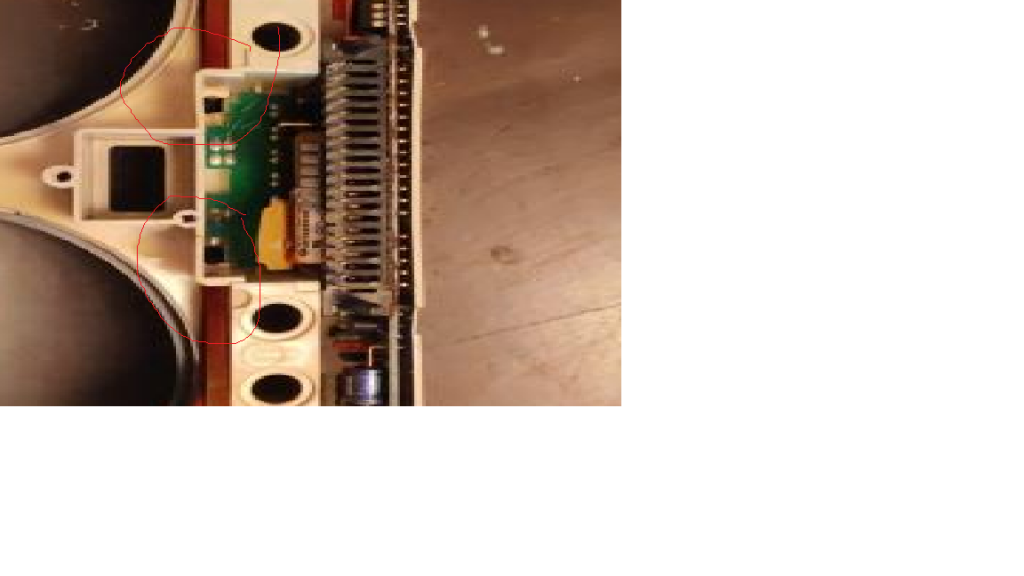

is it getting caught in those spots? maybe try prying down slightly down on them while pulling out

[D3R3K]

any luck getting it out?
