e30 Horn Contact

[park123xyz]

Can Anyone explain to me how access the horn contact in an e30 steering wheel?


Sent from my iPhone using Tapatalk

[itskingsteelo]

its a contact ring on the inside of the steering wheel. remove the steeringwheel and look at the back of it, its a gold looking ring, it makes contact with a carbon pin that's attached to the steering column

[park123xyz]

its a contact ring on the inside of the steering wheel. remove the steeringwheel and look at the back of it, its a gold looking ring, it makes contact with a carbon pin that's attached to the steering column

Ohh ok. How can I tell if it is not making contact? Just press the button?


Sent from my iPhone using Tapatalk

[itskingsteelo]

sometimes the carbon pin will break off, if your horn isn't working its probably broken so youll have to order a new one, not hard to replace but you DO have to drill out 2 rivets.

[park123xyz]

sometimes the carbon pin will break off, if your horn isn't working its probably broken so youll have to order a new one, not hard to replace but you DO have to drill out 2 rivets.

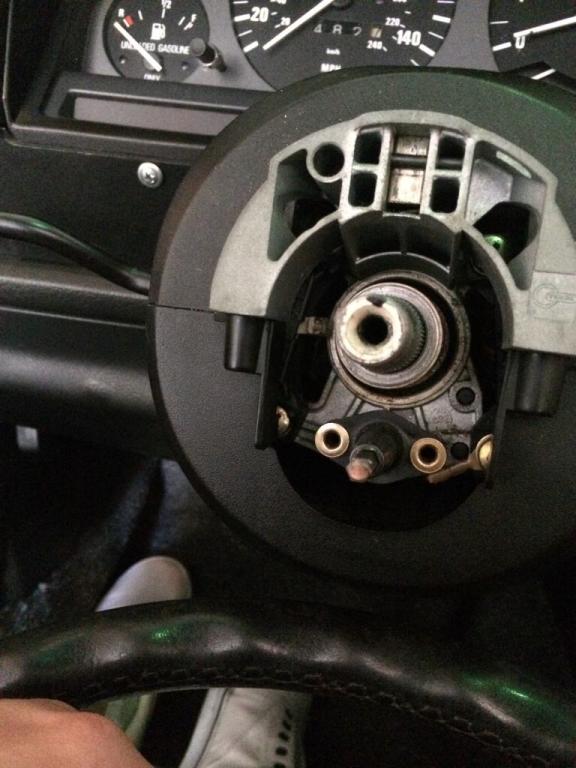

Where in the photo are the rivets?


Sent from my iPhone using Tapatalk

[park123xyz]

Also can u see the carbon pin in this pic?


Sent from my iPhone using Tapatalk

[itskingsteelo]

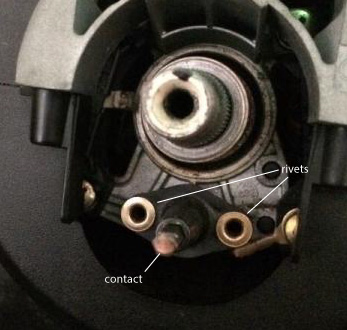

the carbon pin is right beneath the bolt that holds the steering wheel in place, the rivets are the two holes on the side of it

[glnr13]

to test it take the connector that attaches to the contact ring and touch it to the steering column, car needs to be on.

[park123xyz]

to test it take the connector that attaches to the contact ring and touch it to the steering column, car needs to be on.

Sweet thanks


Sent from my iPhone using Tapatalk

[phenryiv1]

I feel stupid that I had to google to find this thread. And this one: http://www.r3vlimited.com/board/showthread.php?t=333339

[honda.lioness]

sometimes the carbon pin will break off, if your horn isn't working its probably broken so youll have to order a new one, not hard to replace but you DO have to drill out 2 rivets.

This helped. My friend and I drilled the rivets out successfully today and installed the new part. The replacement part is called "carbon pin" at online BMW part sites, part number 32331350750. Also online BMW part sites show a screw, nut and lockwasher to install the "carbon pin." These replace the rivets. See http://www.realoem.com/bmw/enUS/show...54#32331350750

The screws are fillister design, M5 x 20, phillips head. Part numbers are as follows.
Fillister head screw 07119906853
Hex nut 07119922038

I bought m5x20 screws, nuts and lockwashers at my local True Value. They were a perfect fit for fastening the replacement carbon pin.
