need help disassembling sport seats

[StrokedSix]

i'm having trouble getting the bottom side bolster free. how do i get the hinge point in the seat apart? is there a DIY write-up somewhere? i couldn't find anything on r3v.

as far as i can tell, the hinge goes through a hole in the bolster.
this is where i'm at right now...

[AndrewBird]

http://www.r3vlimited.com/Tech/sportseats.htm

No one ever looks on the front page. It's like all r3vlimited is is a forum...

[td325ic]

PM me with your email and I'll forward you some guides.

[StrokedSix]

http://www.r3vlimited.com/Tech/sportseats.htm

No one ever looks on the front page. It's like all r3vlimited is is a forum...

wtf... i didn't even know that was there. i figured if r3vlimited had anything, it would show up in a search. it should now anyway. thanks.

PM me with your email and I'll forward you some guides.

pm sent.

[browntown]

yeah they're up front on the page, I forget about em too. Maybe port them into stickied posts so they can be search-able.

[thereisnoyun]

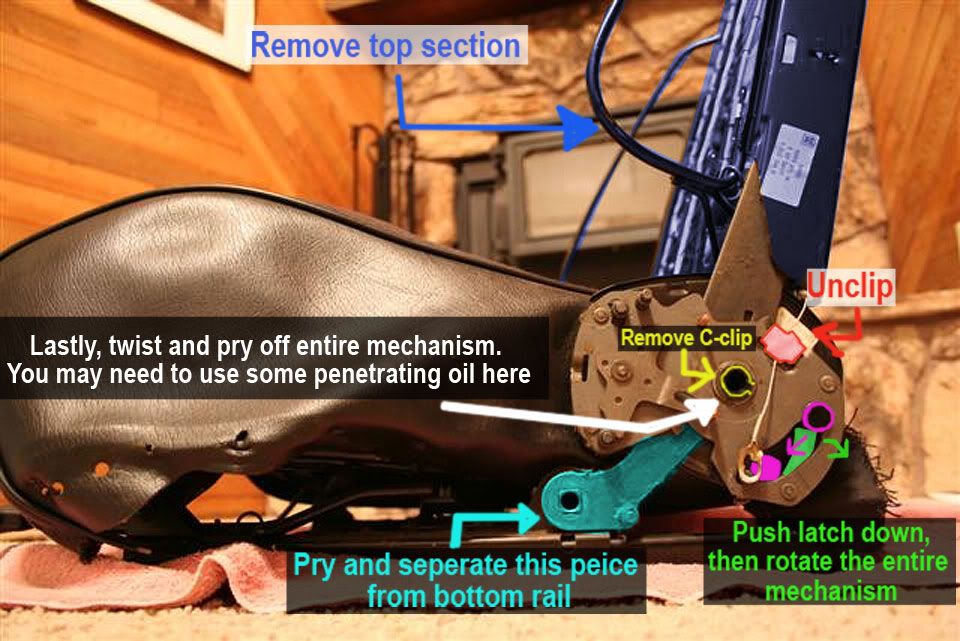

the circlip

you need a circlip plier, everything else is pretty easy, take the circlip off and just do it with some deduction, but the first thing is the clips.

the one on R3V is accurate, but without picture is like trying to interpret words to something you never seen... pretty impossible, after I done it, i'm looking at it like.. uh huh uh huh, but before its just a jumble mumble of words.

[mcr_driver]

Bumping this up as it's a good thread thanks to that pic. made a worlds of difference while I was taking mine apart today.

[LivingLegend06]

There is a very good walk through on E30tech:

http://www.e30tech.com/forum/showthread.php?t=82306

[Sehnsucht]

^^ Your link isn't working right now

http://e30performance.info/viewtopic.php?f=24&t=1147

This write-up is really good too and has tons of pics
