So I've searched on how to properly do this conversion but ultimately just keep ending up with tutorials on how to go from sealed beams to euro smilies. I just got a set of Depo smoked smilies and really want to figure out how to properly wire these up. Im confused as to if they're plug and play because I already have US Ellips, or if i need get female connectors to wire them up. Could someone please list what i need in terms of parts to properly do this, or redirect me to a detailed thread showing this. Also, if anyone is in the San Diego area id appreciate the help if you could show me :)
-
-

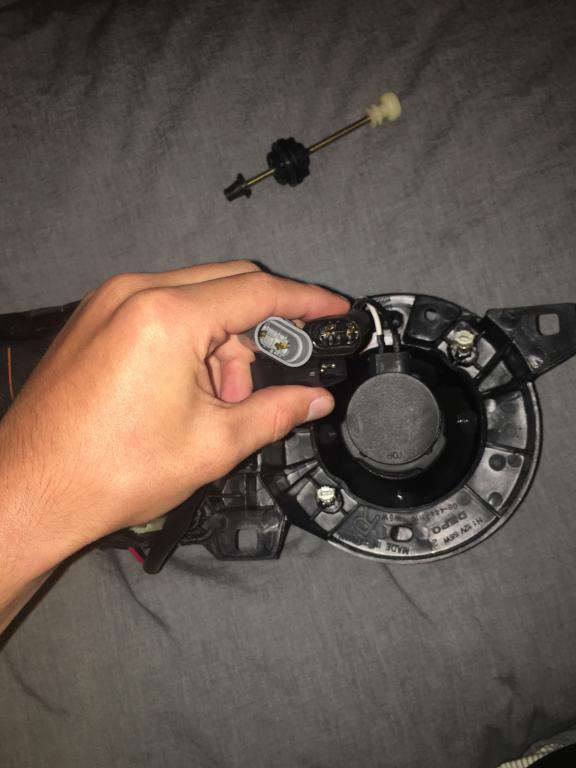

The top two are the high and low beam connectors (black & Gray) and the bottom is the city light (black connector with larger prongs). Not sure if this helpsAttached Files -
-
You have the right wiring, you need the correct plugs on the chassis side. You'll also have to tap into a running light if you want to use the city lights.Interested in vintage cars? Ever thought about racing one? Info, photos, videos, and more can be found at www.michaelsvintageracing.com!
Elva Courier build thread here!Comment
-
Comment
-
Actually, those plugs look different than the ones on my Bosch smilies. You still have to match them, just not sure what they are.Interested in vintage cars? Ever thought about racing one? Info, photos, videos, and more can be found at www.michaelsvintageracing.com!
Elva Courier build thread here!Comment
-
Just cut the plug off the car, attach the new plug to the wires (making sure the wires are correctly matched!), and seal from the weather. You splice the wire from the city light into the wire from the running light and seal that as well.Interested in vintage cars? Ever thought about racing one? Info, photos, videos, and more can be found at www.michaelsvintageracing.com!
Elva Courier build thread here!Comment
-
You have everything you need. DEPO's harness is made for cars with US ellipsoids so do not cut your 9006/9005 harness. You just need to make sure of the polarity before you put the 2 female terminals over the males and make sure they go on snug. This harness is DEPO's way of making it plug and play for cars with US ellipsoids but they cheaped out by not providing water tight female terminals inside of the proper connector. I wired up them as is and haven't had a problem but the right way to do it is order the proper watertight terminals and connectors $."I'd probably take the E30 M3 in this case just because I love that little car, and how tanky that inline 6 is." - thecj
85 323i M TECH 1 S52 - ALPINEWEISS/SCHWARZE
88 M3 - LACHSSILBER/SCHWARZE
89 M3 - ALPINEWEISS II/M TECH CLOTH-ALCANTARA
91 M TECHNIC CABRIO TURBO - MACAOBLAU/M TECH CLOTH-LEATHER
Comment
-
Being that we're both from socal, you understand the whole rain situation haha. do you think i could get away with plug and play and then wrapping a little duck tape or electrical tape over the adaptors? id assume the fuse would go out if any water did happen to get in, right? also how much would it be to get new waterproof male and female adaptors?Comment
-
I live in rain country and electrical taped my smileys with butt connectors. Still good
it's a Kenny Powers quote on wheelsComment
-
"I'd probably take the E30 M3 in this case just because I love that little car, and how tanky that inline 6 is." - thecj
85 323i M TECH 1 S52 - ALPINEWEISS/SCHWARZE
88 M3 - LACHSSILBER/SCHWARZE
89 M3 - ALPINEWEISS II/M TECH CLOTH-ALCANTARA
91 M TECHNIC CABRIO TURBO - MACAOBLAU/M TECH CLOTH-LEATHER
Comment
-
Ah, thanks for clarifying that. The more you know!Interested in vintage cars? Ever thought about racing one? Info, photos, videos, and more can be found at www.michaelsvintageracing.com!
Elva Courier build thread here!Comment
-
Polarity doesn't matter on a light bulb. It will work either way.Comment
-
Got them installed last night, Thanks for The info everyone! Got a pair of US ellipsoids for sale too now if anyone wants them hahaComment
