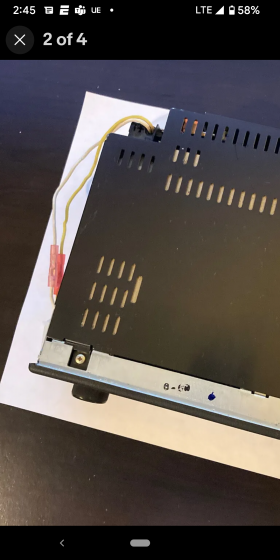

Is the cable soldered inside the radio, or does it simply plugged into the radio internally, in a way that I can simply buy a donor radio, take the cover off of my radio, and plug that uncut cable into my radio?
Announcement
Collapse
No announcement yet.
CM5907 power cable cut. How is the cable attached to the radio internally?
Collapse
X
-
please post a pic hard to tell what you're talking about. if it's that the power connector was cut off, you will need to replace it.I BUY/SELL REFURBISHED CM5907s & CM5908s
HOWTOs:
DB vert plastic bumpers
OEM Keys
MTech1 docs
88 ix Lach/Card
91 ic Calypso 3.1
86 Cosmo 2.7
OEM+ or bust!
reelizmpro: I will always be an e30 guy.. I still do all of my own labor
TrentW: There's just something so right about a well-built M20 in an E30
e30m3s54turbo: I save my money for tuner parts.
-
Originally posted by bradnic View Postplease post a pic hard to tell what you're talking about. if it's that the power connector was cut off, you will need to replace it.
Comment
-

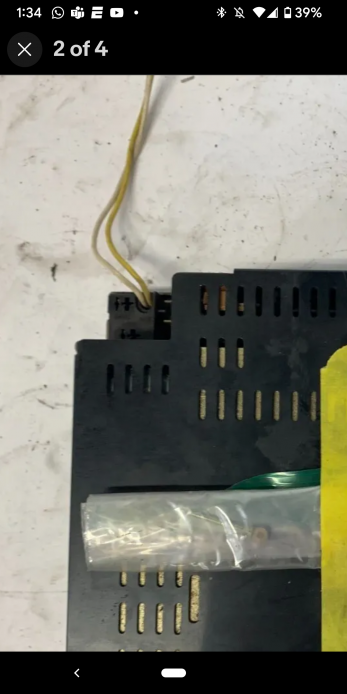

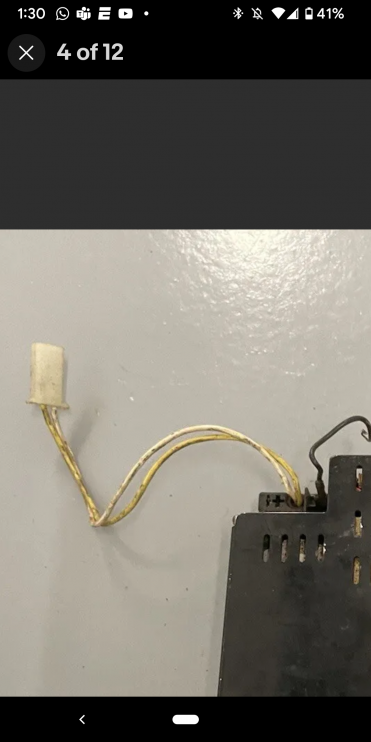

Those two wires are for the radio lighting. You will need a replacement connector to hook them up to your car. is your car wiring for the radio complete? there's a black connector for radio power.
Here's the power and speaker wiring for an E30 89+ car without premium audio (BMW SOUND SYSTEM)
Here are the connections for the back of the radio
the black connector is for power. it goes on the IGN and GND pins.
Speakers go on the right
PWR ANT is a thin white wire.
Your missing white connector on the radio connects to the white connector in the first pictureLast edited by bradnic; 09-05-2022, 12:44 PM.I BUY/SELL REFURBISHED CM5907s & CM5908s
