    Tomahawk tw 9010 alarm system install

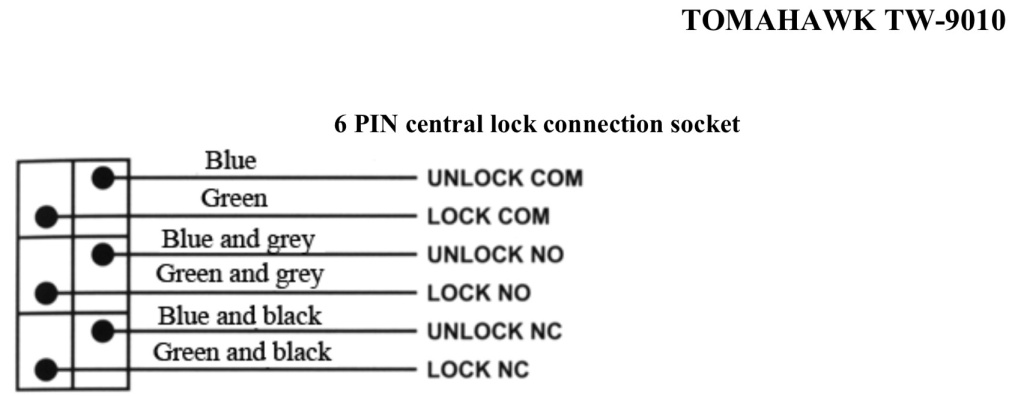

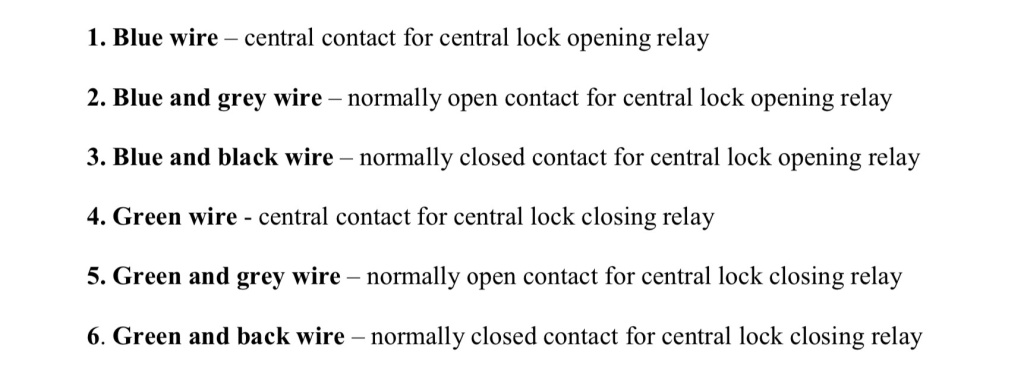

    Hello mates. I want to say i have already searched the forum but i have not found an install of an alarm with similar wiring diagram as mine.

    I want to install a “Tomahawk tw9010” alarm system in my 1989 318i e30.

    Can you help me with the central locking wiring?

    I think i should wire like this:

    Tomahawk tw9010 ——— car wiring
    • blue (unlock) —— green/blue central locking module (through relay)
    • blue/grey ———— ground
    • blue/black - not connected
    • green (lock) ——— yellow/blue central locking module (through relay)
    • green/grey ———- ground
    • green/black ——— not connected




    Is this the right way to do it?

    Thank you.
    Attached Files

    #2

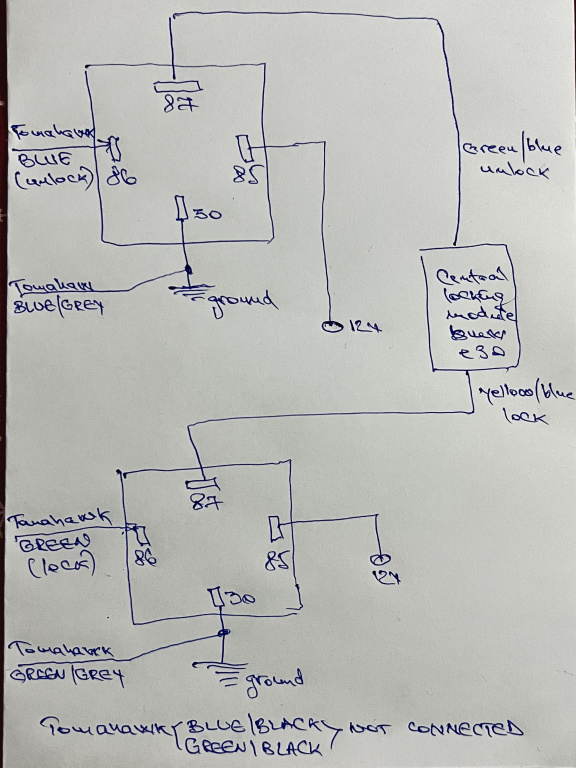

    This is how i am thinking to wire it. Is this the right way?
    Attached Files

    Comment


      #3

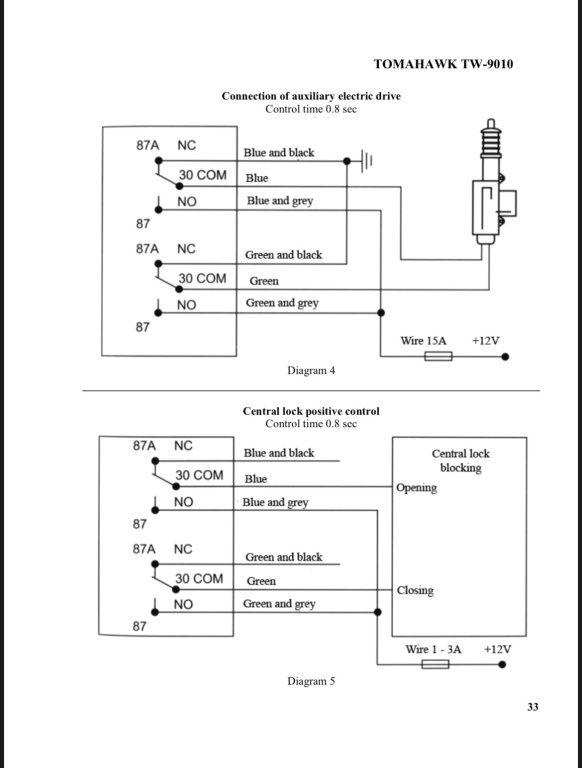

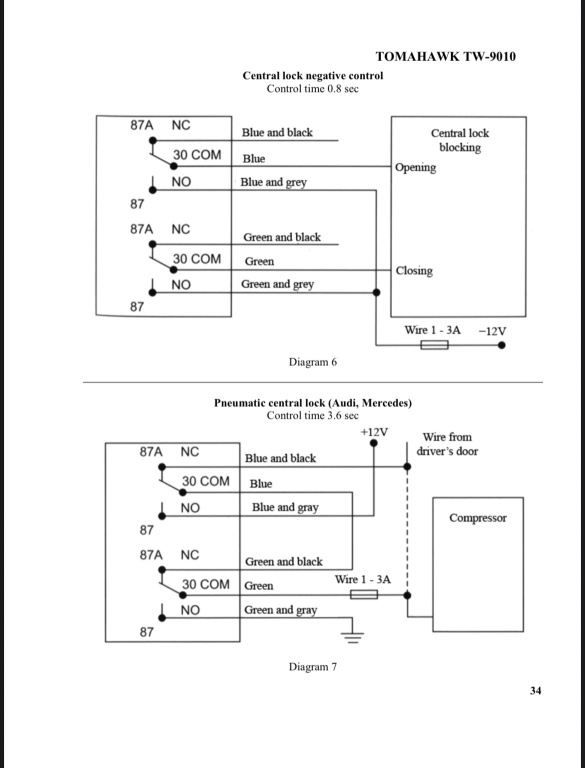

      Follow the Central Lock Negative Control diagram in the manual.
      "I'd probably take the E30 M3 in this case just because I love that little car, and how tanky that inline 6 is." - thecj

      85 323i M TECH 1 S52 - ALPINEWEISS/SCHWARZE
      88 M3 - LACHSSILBER/SCHWARZE
      89 M3 - ALPINEWEISS II/M TECH CLOTH-ALCANTARA
      91 M TECHNIC CABRIO TURBO - MACAOBLAU/M TECH CLOTH-LEATHER

      Comment


        #4
        Originally posted by reelizmpro View Post
        Follow the Central Lock Negative Control diagram in the manual.
        Thank you.
        I do not understand what “-12v” from that diagram mean. Does it mean “ground”?

        Comment


          #5
          I think it's in reference to the negative trigger sent to the Central Locking Unit for lock/unlock. It's important to note, your alarm connects directly to the Central Locking Unit. There's no need for external relays.
